Manual Guide M Operators manual Page 64

Operators manual
Manual Guide M Hole Pattern
GE Fanuc Automation S.A. - 63 -
GFKE-0046-EN/01

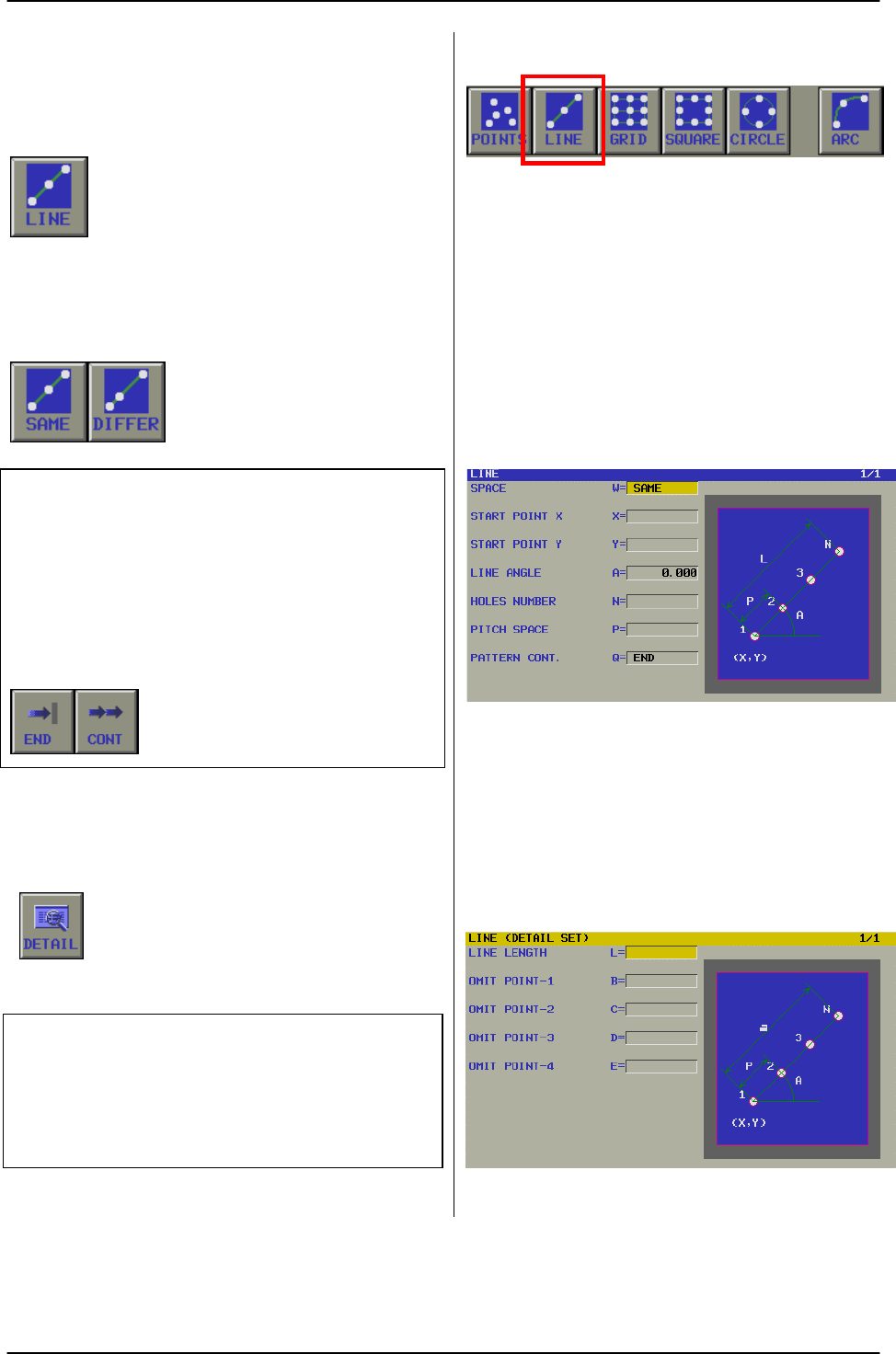

4. 1. 2 Line (G201)
This is a menu for specifying the pattern of hole
positions at the same or different spaces on arbitrary
line.
By pushing [LINE], the following pop-up window is
displayed.
In case of pattern SAME, following input items are
available:
START POINT X/Y X and Y coordinates of the
position of the first hole.
LINE ANGLE The angle between the X axis
and the straight line. Line angle
'0' is preset.
HOLES NUMBER The total No. of holes, including
the No. of omitted holes.
PITCH SPACE The space between holes.
PATTERN CONT. Select whether to continue
entering another hole pattern
from the following Soft-Key
By pushing "DETAIL" Soft-Key
Following pop-up window is displayed:
LINE LENGTH The length of the straight line.
This is a alternative input item
instead of PITCH SPACE.
OMIT POINT To designate the point to be omitted,
-1 / -2 / -3 / -4 input the hole sequence No.,
including its point.
Same Space
Omit max. 4 points
