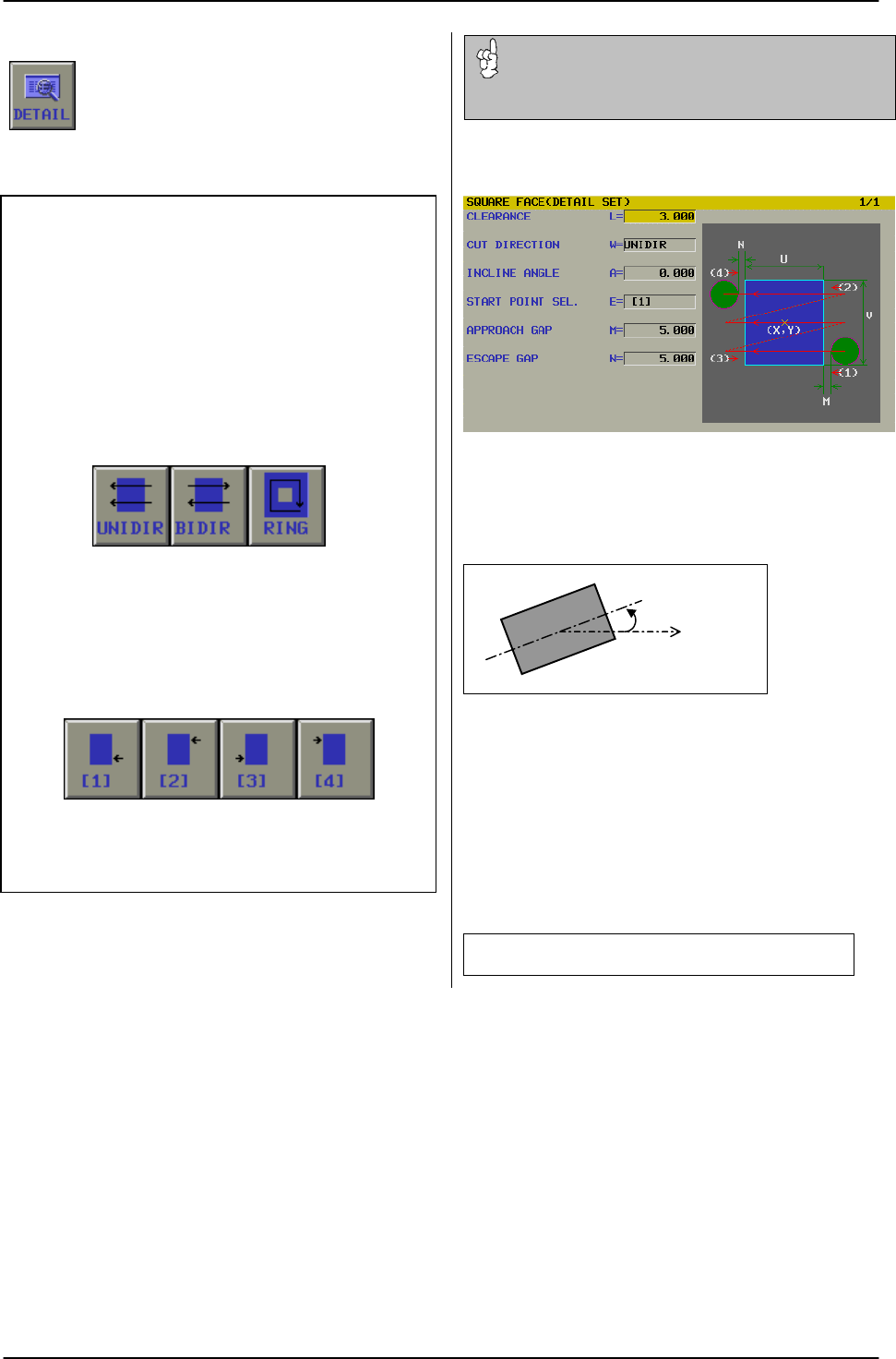

Manual Guide M Operators manual Page 73

Operators manual
Manual Guide M Facing
GE Fanuc Automation S.A. - 72 -
GFKE-0046-EN/01
Important note
DETAIL SET screen - unnecessary to select. Usually
preset values are suitable as default.
By pushing "DETAIL" Soft-Key
Following pop-up window is displayed:
CLEARANCE
The amount of clearance for cutting feed
in Z axis at the approach and escape
movement. The default amount is 3mm.
CUT DIRECTION
Select the cutting direction from following
Soft-Key:
SQUARE UNI-DIRECTIONAL
BI-DIRECTIONAL
RING FACING
INCLINE ANGLE
The angle between U side and the X axis. It is
considered to be 0 if not input.
START POINT SELECTION
Select the start position from following
Soft-Keys:
APPROACH-/ ESCAPE GAP
This is the safety distance between tool and
work piece edge at movement start and end.
After all data input, push "INSERT" key. Then the
pop-up window is closed and the inputted data are
displayed in the Program Window.
G210 P_ Z_ B_ J_ H_ F_ C_ W_ X_ Y_ *** ;
A
Work
p
iece
Xaxis
