Manual Guide M Operators manual Page 48

Operators manual
Manual Guide M Cycle Programming
GE Fanuc Automation S.A. - 47 -
GFKE-0046-EN/01
3. 2. 4 Boring Cycle G89
(with Dwell Time)
This cycle is used for boring a hole with dwell and
rapid retraction.

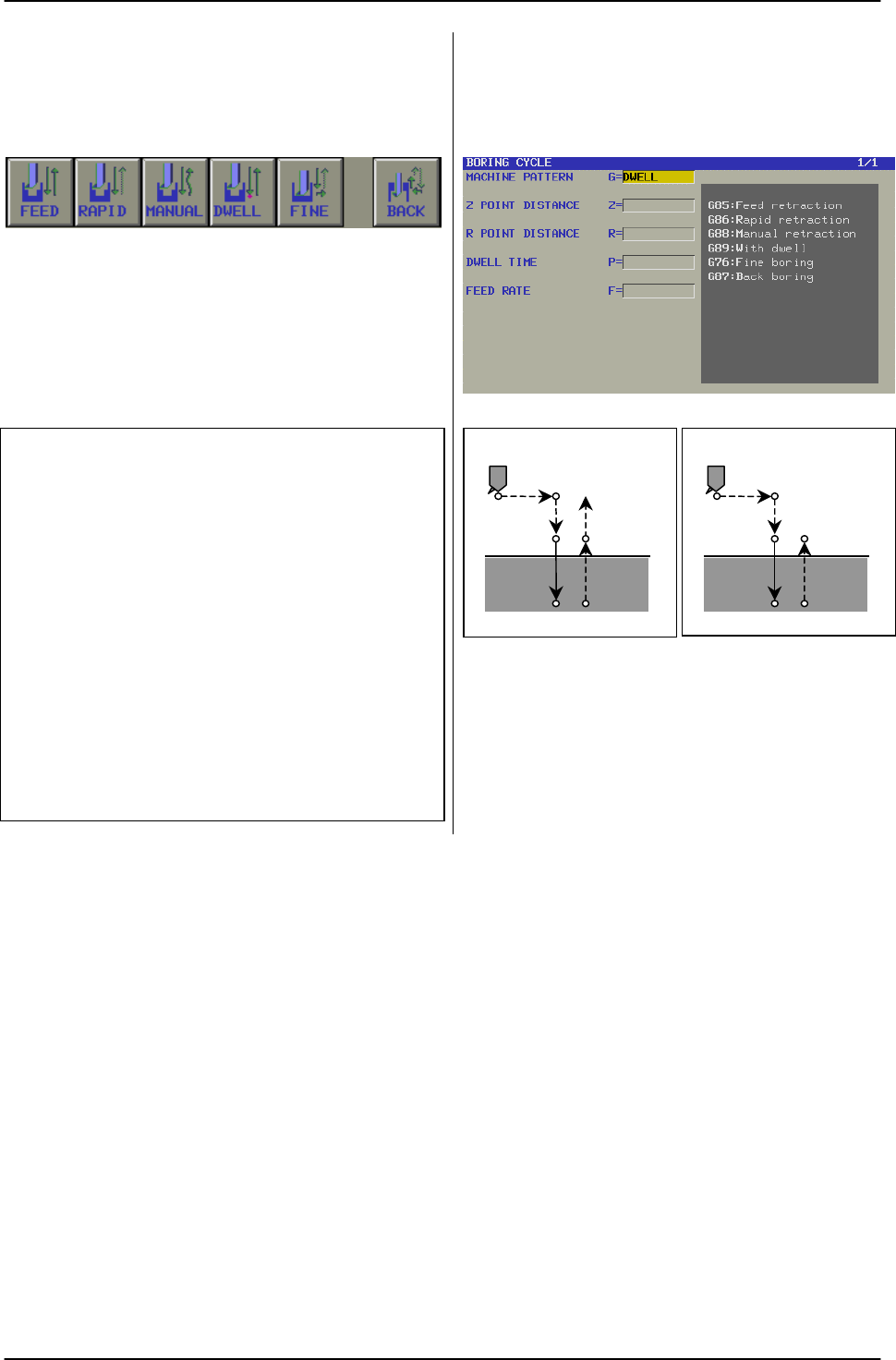

By pushing [DWELL], the following items are
displayed :
Z POINT DISTANCE
In the case G90 (Absolute = Default)
- the Z axis position of the bottom of the hole
In the case G91 (Incemental)
- the distance from point R to the bottom of the hole
R POINT DISTANCE
In the case G90 (Absolute = Default)
- the Z axis position of point R level
In the case G91 (Incemetnal)
- the distance from the initial level to point R level
DWELL
Dwell time at the bottom of the hole.
FEED RATE
Cutting feed rate for boring
Return to Initial level Return to R-level
G89 (G99)
Point R
Point Z
P
o
in
t
R l
e
v
e
l
P
G89
(
G98
)
Ini
t
i
a
l
Point Z
P
o
in
t
R
P
