Manual Guide M Operators manual Page 41

Operators manual
Manual Guide M Cycle Programming
GE Fanuc Automation S.A. - 40 -
GFKE-0046-EN/01
Important note
DETAIL SET screen - unnecessary to select. Usually
preset values are suitable as default.

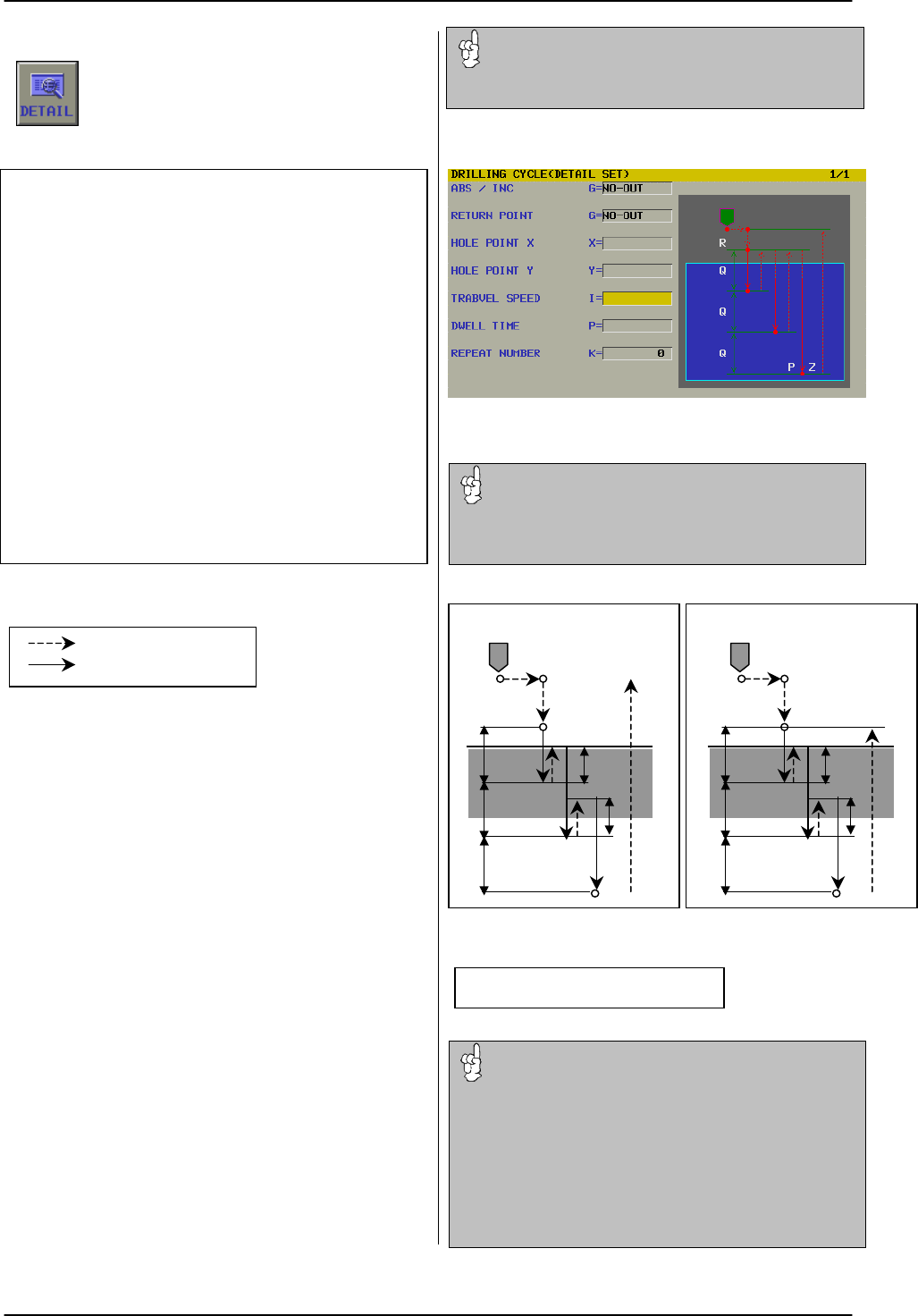

By pushing "DETAIL" Soft-Key
Following pop-up window is displayed:
ABS/INC Specify travel ways from the
following soft-keys.
[G90ABS (absolute)],
[G91INC (incremental)],
[NO OUT] is pre set!
RETURN POINT Specify return point level
from the following soft-keys.
[I-LVL (G98)], [R-LVL (G99)],
[NO-OUT] is preset
HOLE POINT X/Y Hole position data. It is used in
the case of no using Hole Pattern
menu.
REPEAT NO. Number of repeat. It is used in the
case of no using Hole Pattern menu
3. 1. 4. 1 Movements
The high-speed peck drilling cycle performs
intermittent feeding along the Z axis. When this cycle
is used, chips can be broken and removed from the
hole easily, and a smaller value can be set for
retraction. This allow, drilling to be performed
efficiently. Set the clearance “d” in parameter
No.5114.
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
Return to Initial level Return to R-level
G73 (X_ Y_) Z_ R_ Q_ F_ ( K_);
Important note
NO-OUT
means, the modal data, like G90 or G91 will not
be changed. If G90 or G91 is selected, this selection will be
kept modal and must be changed back by new definition of
G90 or G91 !!!
Important note
“Q” represents the depth of cut for each cutting
feed. It must always be specified as an
incremental value.
In the second and subsequent cutting feeds,
rapid traverse is performed up to a “d” point
just before where the last drilling ended, and
cutting feed is performed again. “d” is set in
parameter (No.5115).
Ra
p
id traverse
Feed traverse
G73 (G98)
Point R
Q
Q
Q
d
d
Point Z
Initial level
G73 (G99)
Q
Q
Q
d
d
Point R
Point
Point R
