Manual Guide M Operators manual Page 33

Operators manual
Manual Guide M Cycle Programming
GE Fanuc Automation S.A. - 32 -
GFKE-0046-EN/01
Important note
Data for tool preparation and spindle speed has to be
performed before in menu 'TOOL' and 'MSF'.

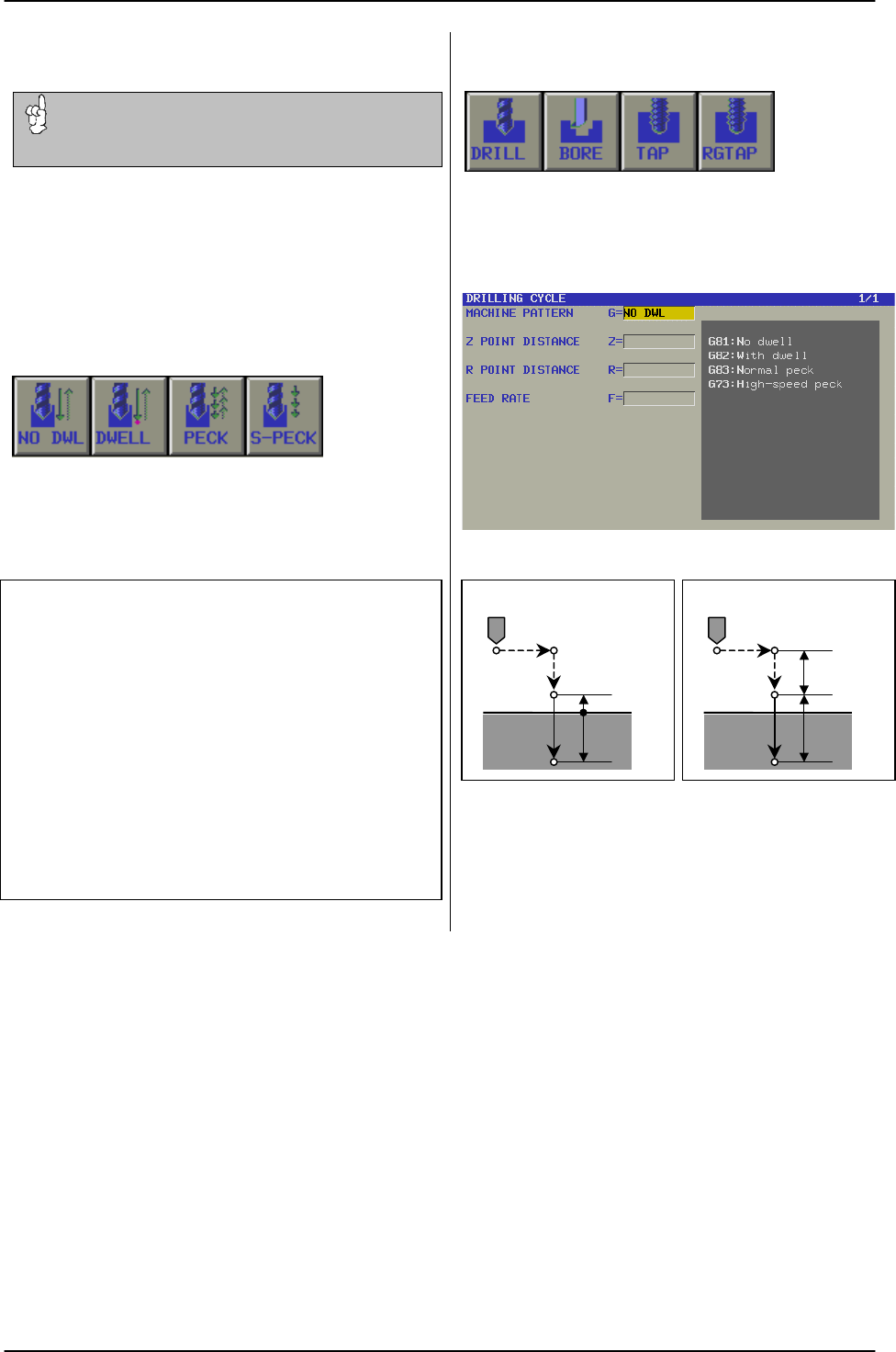

3. 1 DRILLING
There are several Drilling Cycles available:
3. 1. 1 Drilling Cycle
(without dwell time) G81
This cycle is used for normal drilling. Cutting feed is
performed to the bottom of the hole. The tool is then
retracted from the bottom of the hole in rapid traverse.
By pushing [NO DWL], the following items are
displayed.
Z POINT DISTANCE
In the case G90 (Absolute = Default)
- the Z axis position of the bottom of the hole
In the case G91 (Incremental)
- the distance from point R to the bottom of the hole
R POINT DISTANCE
In the case G90 (Absolute = Default)
- the Z axis position of point R level
In the case G91 (Incremetal)
- the distance from the initial level to point R level
FEED RATE
Cutting feed rate for drilling
Absolute Incremental
G90
Initial
Point
Point
Z =
Z
R
G91
Initial
Z
R
Point
Point
