Manual Guide M Operators manual Page 6

Operators manual
Manual Guide M Basics
GE Fanuc Automation S.A. - 5 -
GFKE-0046-EN/01
See

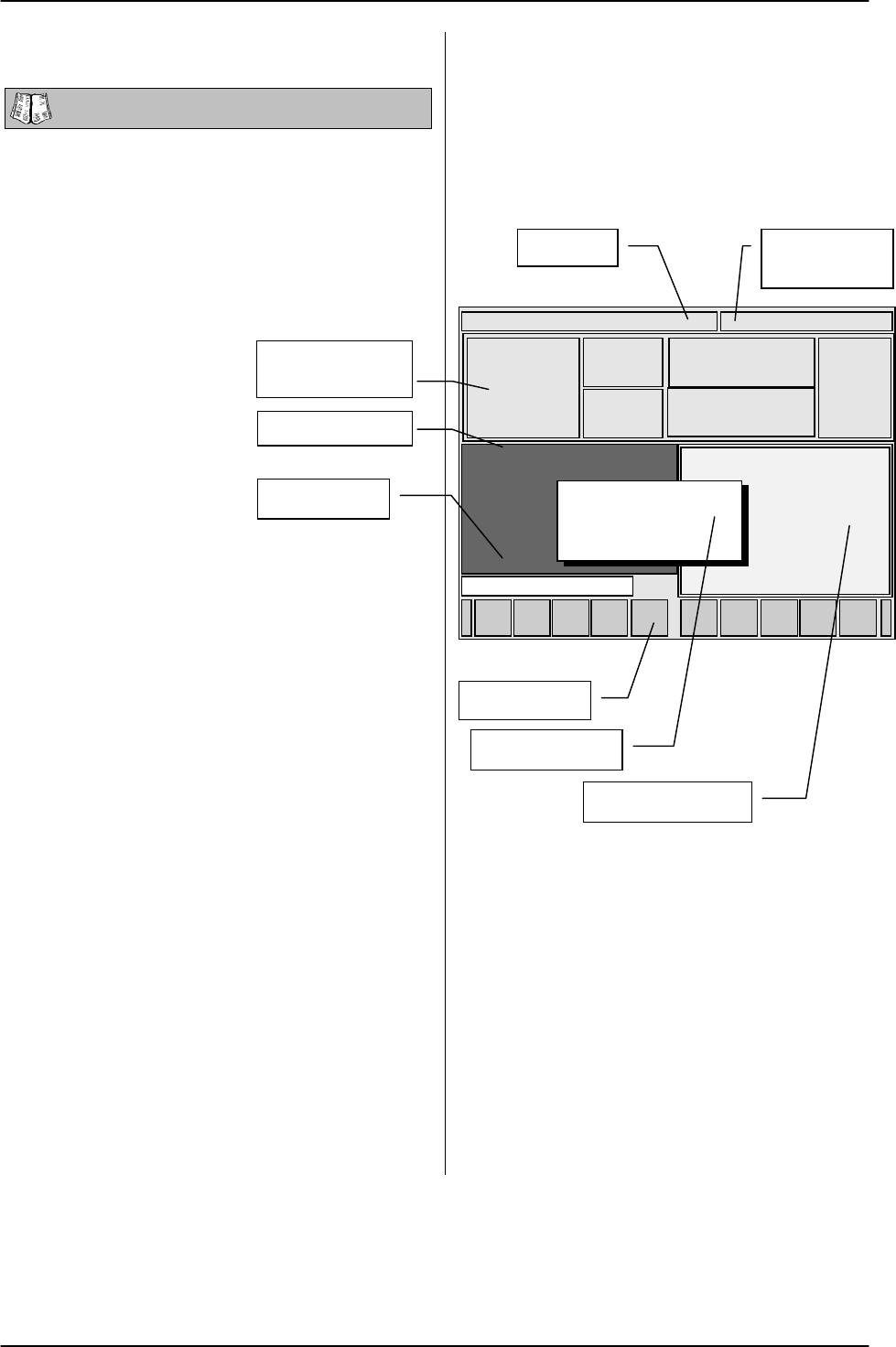

1. 1 Screen Layout
3
All in one screen
Title Area:
is displayed always
CNC status area:
Following CNC status information are
displayed always.
- Mode
- Alarm
- Reset or Emergence stop status
- Actual time
Status indicator window:
Following CNC status information are
displayed always.
- Actual machine position (Max. 5 axes)
- Moving distance of actual and next block
- Feed rate and Guidance hand wheel mode
- Spindle rotating speed and mode
- Actual program and sequences No.
- Actual command by machining program
(MSTF)
Graphic Window:
Following graphical drawing are displayed.
- Tool path of inputted ISO code program
- Taught-in tool path of guidance cutting
- Animated drawing of machining simulation
- Tool path of machining simulation
Program window
Following program information are displayed.
- ISO code program
Pop-up window:
Following supplemental screen are displayed.
- Work coordinate system
- Tool offset value
- Program list
- Detailed program data and illustration
Key-in buffer:
Inputting numerical data and its comment are
displayed.
1. 1. 1 Operator Interface
'Manual Guide M' uses only one screen, to present
all machining relevant operation!
Soft-keys:
Following soft-keys comment for indication its
contents are displayed
- Machining type menu
- Data item menu
- Teach-in type menu
- Operating key
- Pop-up window menu
There are the following soft-keys which means a
special use.
- Most Left soft-key [<]: Previous page
- Most Right soft-key [>]: Next page
FANUC MANUAL GUIDE
Actual Position
Next block
motion
Distance
to
g
o
Feed rate &
Hand wheel mode
Program
&
Sequence
Number
h
Spindle speed &
S
p
indle mode
+
<
Program (ISO code)
CNC
status area
Title area
Status indicator
window
Gra
p
hic window
Key-in buffer
Soft-keys
Pop-up window
Program window
Previous page
Next page
