Manual Guide M Operators manual Page 67

Operators manual
Manual Guide M Hole Pattern
GE Fanuc Automation S.A. - 66 -
GFKE-0046-EN/01

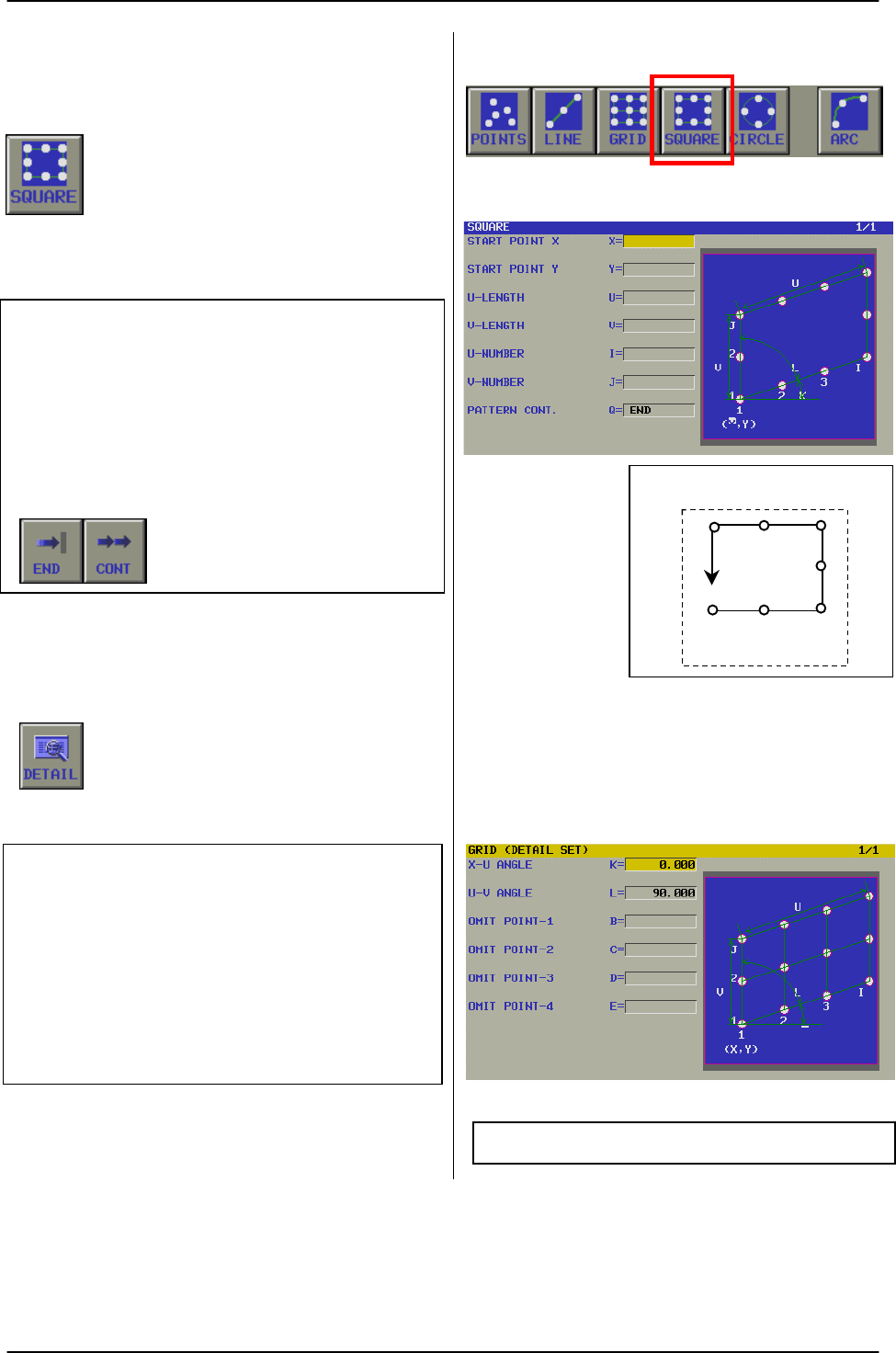

4. 1. 4 Square (G203)
This is a menu for specifying the pattern of hole
positions of a square.
By pushing [SQUARE], the following pop-up window
is displayed.
START POINT X/Y X and Y coordinates of the
first hole position, which is at
the lower left position of the
square.
U/V LENGTH The length of the square in the
horizontal and vertical direction.
U/V NUMBER The number of holes in the
horizontal and vertical direction.
PATTERN CONT. Select whether to continue
entering another hole pattern
from the following Soft-Key
By pushing "DETAIL" Soft-Key
Following pop-up window is displayed:
X-U ANGLE The angle between the line in the
horizontal direction and the X axis. It
is considered to be 0 if not input.
Y-V ANGLE The acute angle between the line,
defined by the points and the
horizontal direction. It is considered
to be 90 if not input.
OMIT POINT To designate the point to be omitted,
-1 / -2 / -3 / -4 input the hole sequence No.,
including its point.
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
Omit max. 4 points
G203 X_ Y_ U_ V_ I_ J_ K_ L_ Q_ (B_ C_ D_ E_ ;)
Hole Machining Sequence
SQU
ARE
1
2
3
