Series 0i - Model A Descriptions Page 147

Descriptions

Page of 328

/ 328

B–63502EN/01

13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

NC FUNCTION

123

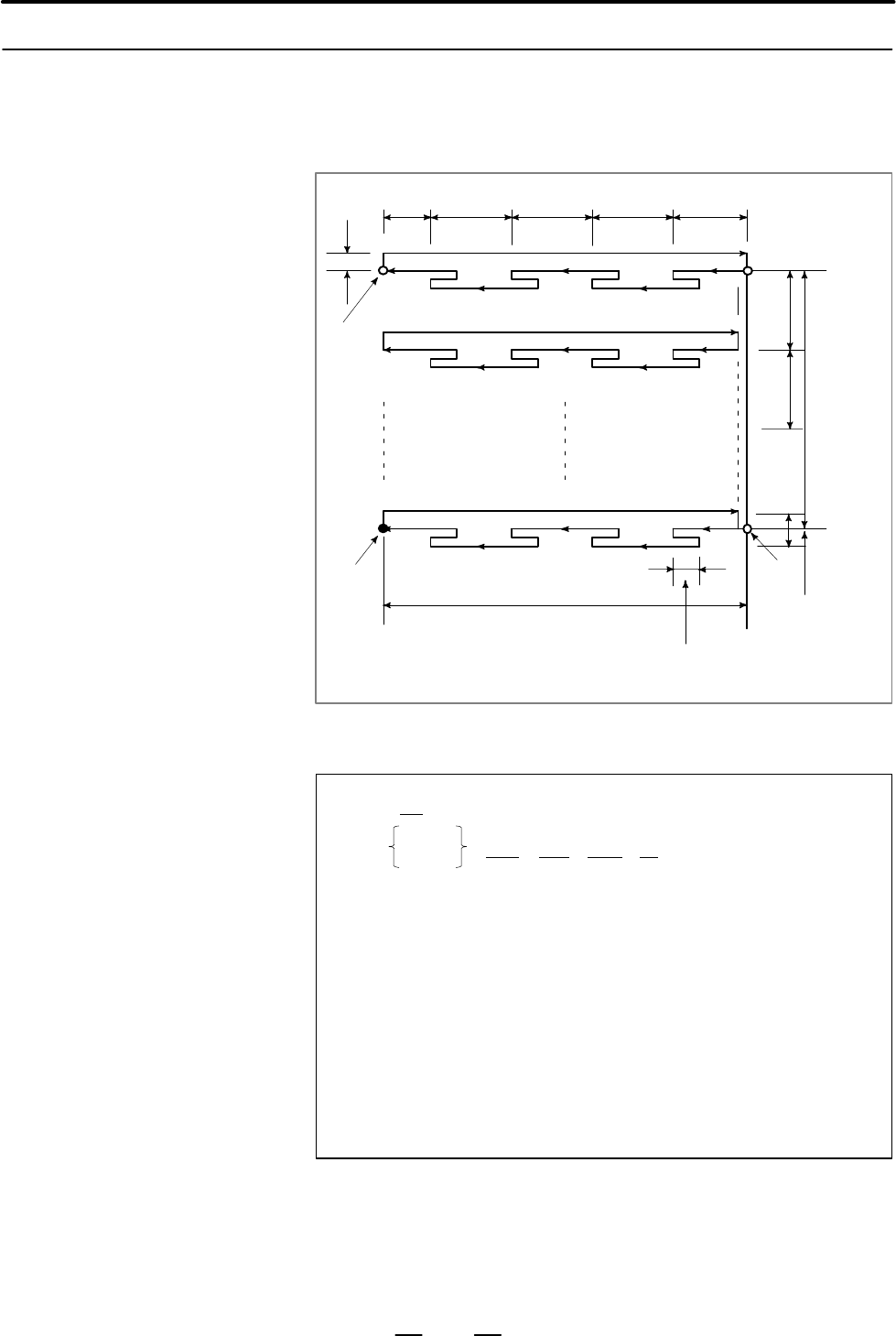

The following command permits operation as seen in the figure below.

Chip breaking is possible in this cycle. Also if both x(u) and P are

omitted, the machining is done only in the Z-axis resulting in peck

drilling.

U/2

∆k’

(R)

(F)

∆i

(F)

[0<∆i’x∆i]

∆k ∆k ∆k ∆k

(R) (R) (R) (R)

(F) (F) (F)

(F)

[0<∆k’x∆k]

∆i

∆i’

R : Rapid traverse

F : Cutting feed

(X_, Z_)

G74 R(e) ;

G74 X_ Z_ P(ns) Q(nf) U(∆u) F(f) ;

e : Amount of return

X : X-axis coordinate of point B

U : Increment for A → B (for G code system A)

Z : Z-axis coordinate of point C

W : Increment for A → C (for G code system A)

∆i : Movement amount in X-axis direction (without sign)

∆k : Depth of cut in Z-axis direction (without sign)

∆d : Clearance amount at the cutting bottom

Usually a positive integer is specified. If X(U) and i are

omitted, however, the sign indicating the direction is added.

f : Feedrate

X_ Z_

U_W_

13.5.5

Peck Drilling in Z-axis

(G74)

Format
