Series 0i - Model A Descriptions Page 77

Descriptions

Page of 328

/ 328

B–63502EN/01

5. FEED FUNCTIONS

NC FUNCTION

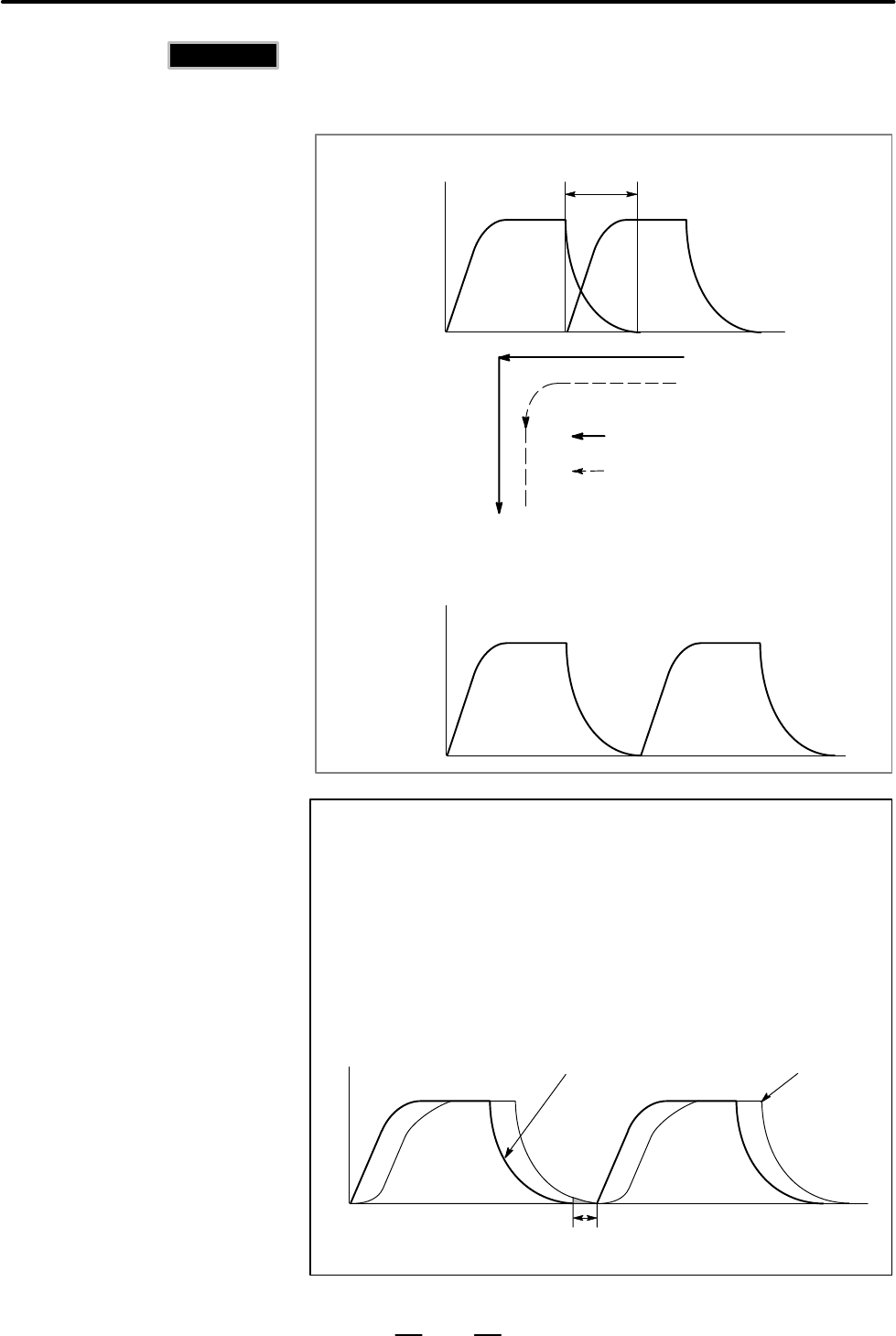

Generally, the CNC does not zero the feedrate at the interface of two

blocks during cutting feed.

Because of this, a corner of a tool path may be rounded.

This part causes the corner of the tool

path to be rounded.

Time

Programmed tool path

Actual tool–center path

Time

Feedrate

If the error detect signal is used, it is possible to specify that

a block not be started until the acceleration/deceleration

of the previous block has been completed.

NOTE

If the error detect signal is on, a cutting block is not executed

until the acceleration/deceleration of the previous cutting

block has been completed.

This function alone cannot prevent corner rounding due to

delay caused by the servo motor, however.

To prevent corner rounding due to delay caused by the

servo motor, use the in–position check function together

with this function.

Feedrate

Time

After acceleration/

deceleration

Range od in–position check

After servo motor delay

5.8

ERROR DETECTION

(T series)

T series
