20. FUNCTIONS FOR HIGH SPEED

CUTTING B–63502EN/01

NC FUNCTION

184

The function enables look–ahead linear acceleration/deceleration before

interpolation of multi–blocks. This results in smooth acceleration/

deceleration over many blocks, as well as high–speed machining.

G05.1 Q_ ;

Q1 :

Q0 :

G05.1

Turn on look–ahead control (multiple blocks are read in

advance) mode

Turn off look–ahead control (multiple blocks are read in

advance) mode

A block for specifying G05.1 must not contain any other

command.

Look–ahead control (multiple blocks are read in advance)

mode can also be canceled by a reset.

When cutting feed per minute is specified on the look–ahead control

(multiple blocks are read in advance) mode, multi–blocks are pre-read.

The linear acceleration/deceleration is executed for the command speed

before interpolation.

If acceleration/deceleration is executed after interpolation, the

interpolation data is changed.

If it is executed for the feedrate before interpolation, the interpolation data

is not affected.

Since the interpolation data can always be placed on the specified line or

curve, there will be no machining profile error caused by

acceleration/deceleration.

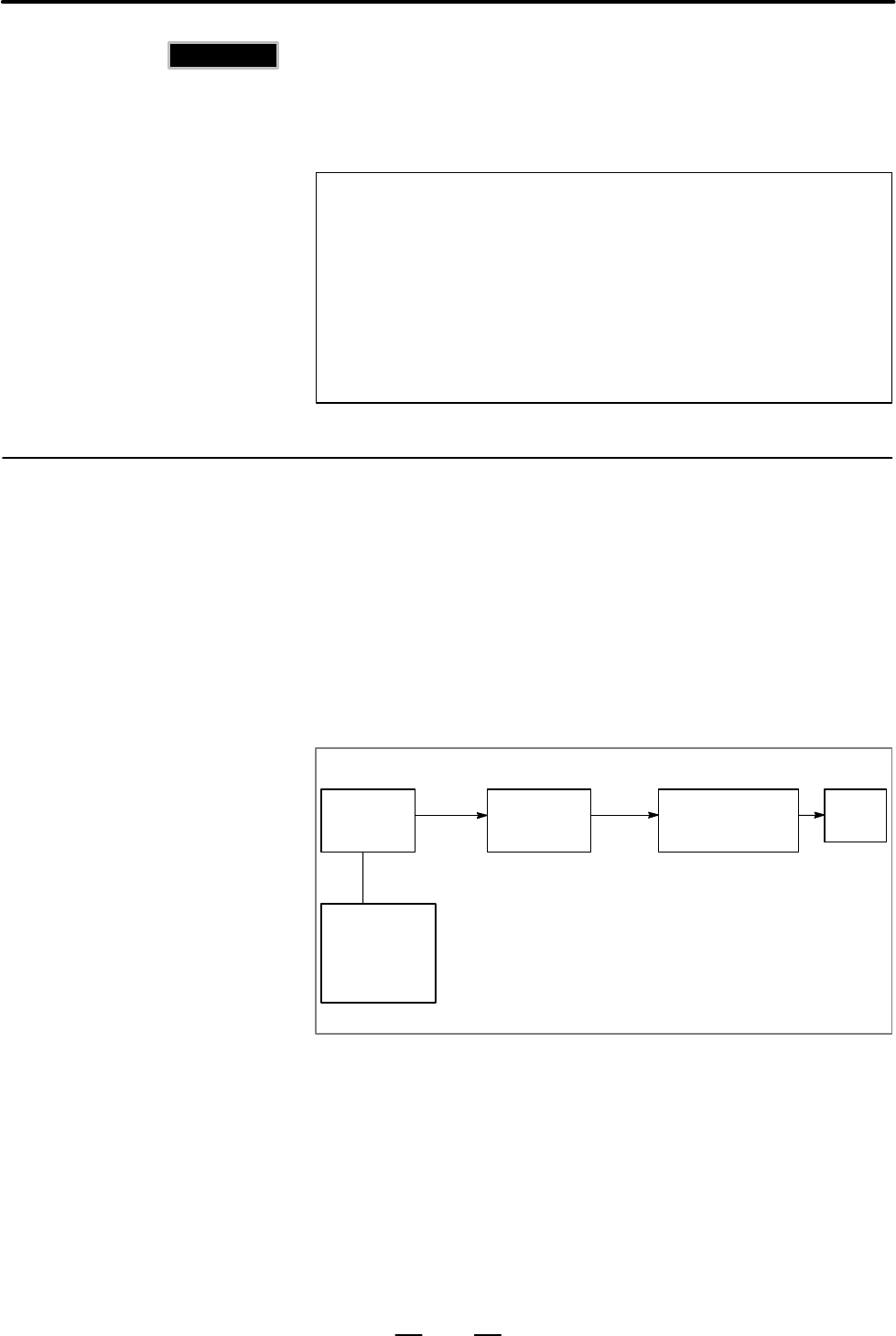

Linear

acceleration/

deceleration

before

interpolation

Feedrate

calculation

Interpolation

calculation

Servo

control

Velocity

com-

mand

Distribu-

tion

pulse Acceleration/

deceleration

after interpolation

Linear type

Linear interpolation,

circular interpolation,

etc.

Linear type

A change in feedrates for each axis on the junction of two blocks (corner

section) may be greater than the value set in the parameter. In such a case,

the appropriate feedrate (reduced speed) is calculated so that the change

is within the set value at the corner. The feedrate in the former block

automatically reduces to the calculated value.

20.4

LOOK–AHEAD

CONTROL (G05.1) (M

series)

M series

Format

20.4.1

Acceleration/Decelera–

tion (multiple blocks

are read in advance)

Before Interpolation
