Series 0i - Model A Descriptions Page 87

Descriptions

Page of 328

/ 328

B–63502EN/01

7. COORDINATE SYSTEMS

NC FUNCTION

A coordinate system in which the zero point is set to a fixed point on the

workpiece, to make programming simple.

A workpiece coordinate system may be set by using one of the following

methods:

(1) Using G92 (G50 for T series with G code system A)

(2) Automatic setting

(3) Using G54 to G59

When (1) is used, a workpiece coordinate system is established using the

numeric value programmed after G92.

When (2) is used, a workpiece coordinate system is automatically

established upon a manual reference position return.

When (3) is used, six workpiece coordinate systems must be set from the

MDI panel in advance. The workpiece coordinate system to be used is

selected by specifying a code selected from G54 to G59.

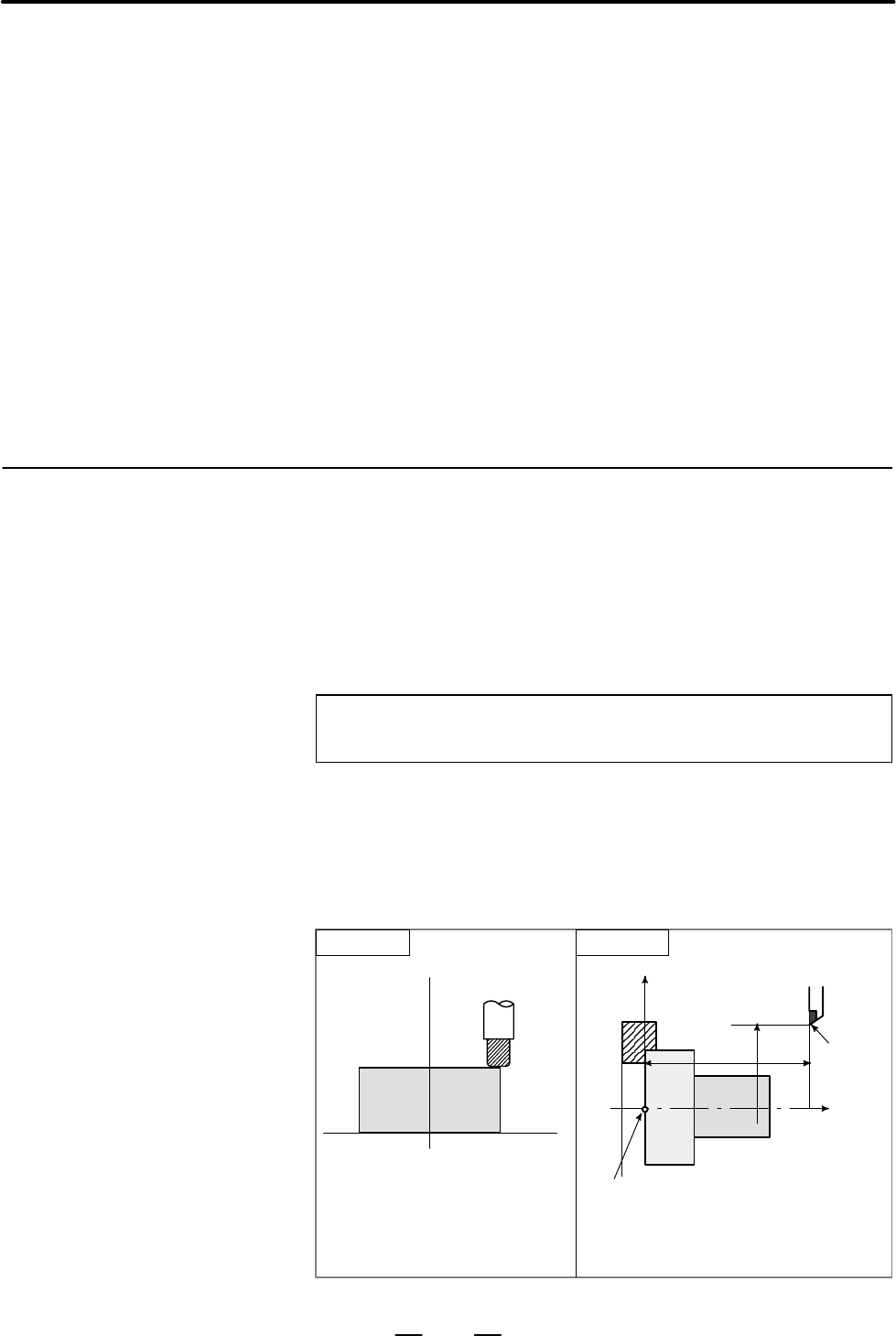

(G90) G92 _ ;IP

By using the above command, a workpiece coordinate system can be set

so that the current tool position is at a specified position.

375.1

φ128.7

25.2

23.0

G92 X25.2 Z23.0 ;

T seriesM series

G92 128.7 Z375.1 ;

(diameter programming)

Reference point

Start

point

7.2

WORKPIECE

COORDINATE

SYSTEM

7.2.1

Setting a Workpiece

Coordinate System

(Using G92)

(with G Code System A:

G50)

Format

Examples

D Example 1
