Series 0i - Model A Descriptions Page 163

Descriptions

Page of 328

/ 328

B–63502EN/01

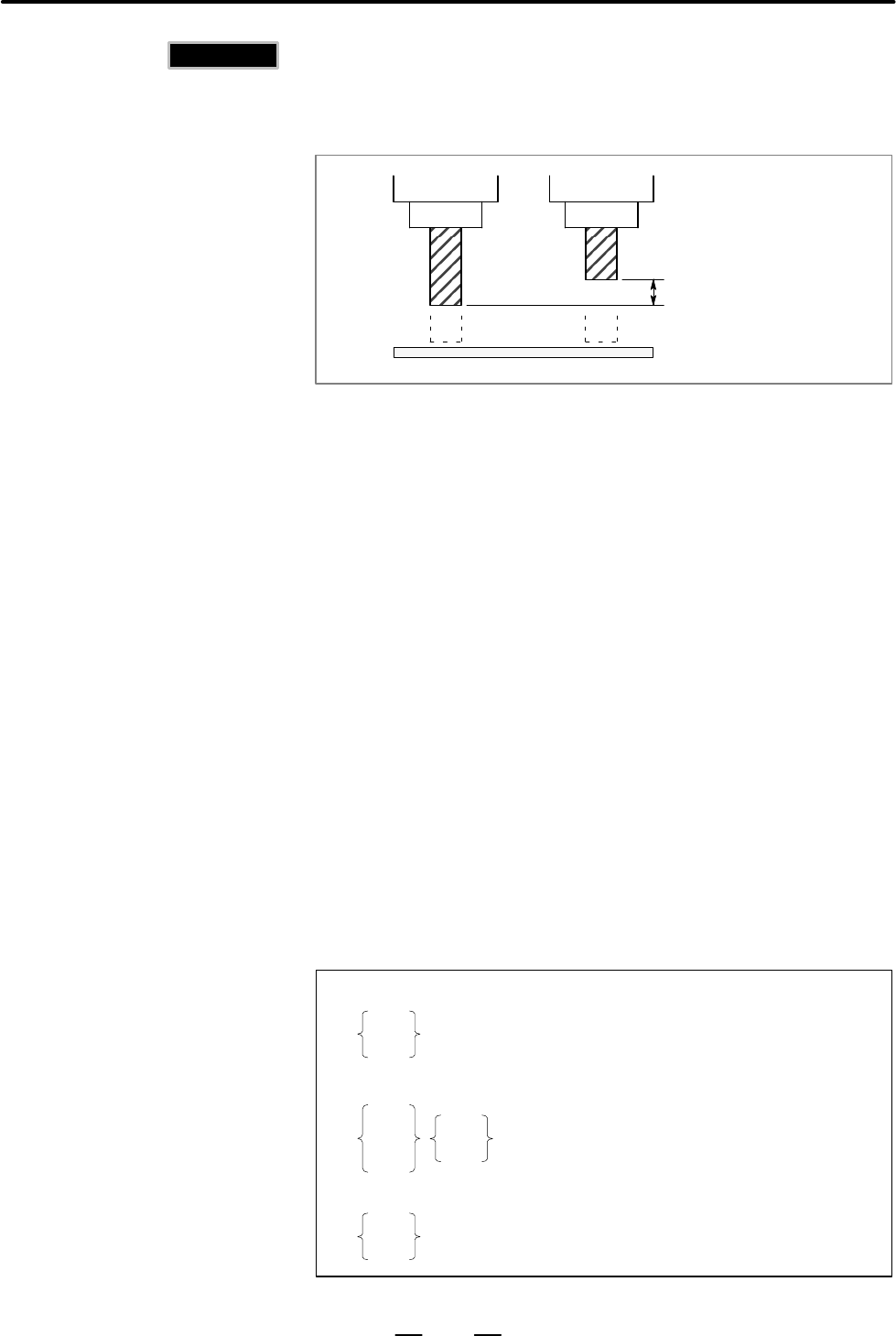

14. TOOL COMPENSATION FUNCTION

NC FUNCTION

139

By setting the difference between tool length assumed when

programming and the actual tool length as offsets, workpiece can be

machined according to the size commanded by the program, without

changing the program.

Reference

tool

Difference set as offset value

G43 : Tool length compensation +

G44 : Tool length compensation –

G49 : Tool length compensation cancel

In G43 mode, the tool is offset to the + direction for the preset tool length

offset amount. In G44 mode, it is offset to the - direction for the preset

tool length offset amount. G49 cancels tool length compensation.

Tool length compensation can be performed for three types of axes.

Compensation for the Z axis is tool length compensation A. That for the

axis vertical to the selected plane is tool length compensation B. That for

the axis specified by the G43 or G44 block is tool length compensation

C. Which compensation to perform can be selected by a parameter.

The offset amount can be set in the tool length compensation memory.

By specifying an offset number with the H code, offset amount loaded in

corresponding tool length compensation memory is used as tool length

compensation amount.

Tool length compensation A

H_ ;

G43

G44

Tool length compensation B

H_ ;

G17

G18

G19

G43

G44

Tool length compensation C

α_ H_ ;

G43

G44

(alpha: arbitrary 1 axis)

14.3

TOOL LENGTH

COMPENSATION

(G43, G44, G49)

(M series)

M series

Explanations

D Tool length

compensation and its

cancellation

(G43, G44, G49)

D Tool length

compensation axis

D Assignment of offset

amount (H code)

Format
