13. FUNCTIONS TO SIMPLIFY

PROGRAMMING B–63502EN/01

NC FUNCTION

128

The block for chamfering or corner rounding can be inserted

automatically between two optional linear interpolations, or between the

linear interpolation and circular interpolation, or between two circular

interpolations.

Specifying ”,C_” inserts the block for chamfering, and specifying ”,R_”

inserts the block for corner rounding. They must be specified at the end

of the block which specifies the linear interpolation (B01) or circular

interpolation (G02 or G03).

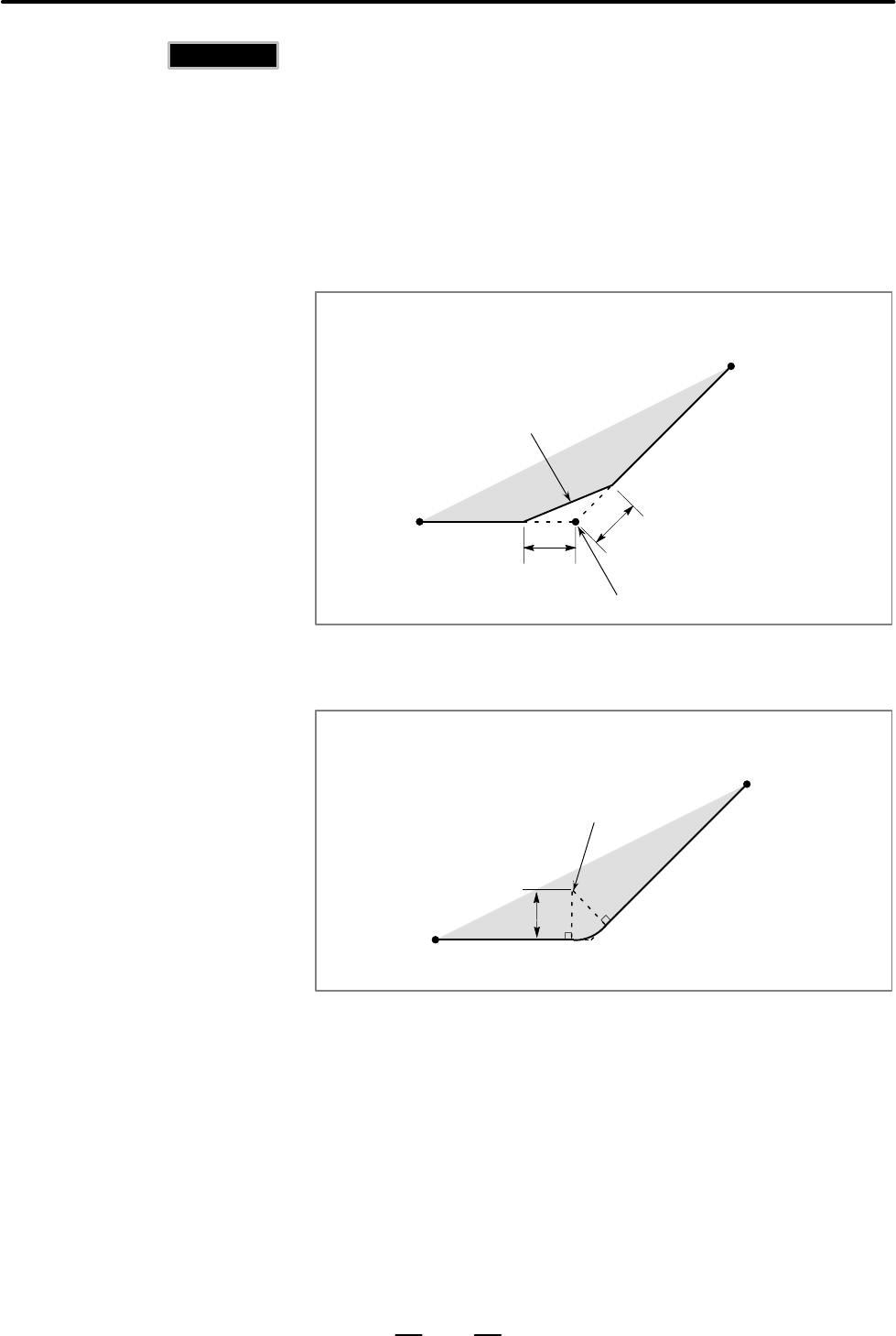

The numeric following C specifies the distance between the virtual corner

intersection and the chamfering start or end point. See the figure below.

Inserted block for

chamfering

(0, 0)

(60, 30)

Virtual corner intersection

(30, 0)

N1 G91 G01 X30.0, C10.0 ;

N2 X30.0 Y30.0 ;

The numeric following R specifies the radius value of corner rounding.

See the figure below.

Arc center for

corner rounding

N1 G91 G01 X30.0, R10.0 ;

N2 X30.0 Y30.0 ;

(0, 0)

(60, 30)

(30, 0)

13.7

OPTIONAL ANGLE

CHAMFERING/

CORNER ROUNDING

(M series)

M series
