Series 0i - Model A Descriptions Page 282

Descriptions

Page of 328

/ 328

34. PERSONAL COMPUTER

FUNCTION

B–63502EN/01

NC FUNCTION

258

The high–speed serial bus is a serial interface used to transfer data at high

speed between the CNC control unit and a personal computer.

By installing a dedicated interface board in a commercially available IBM

PC–compatible personal computer, the CNC control unit can be

connected to the personal computer via the high–speed serial bus. The

high–speed serial bus has the following features:

D Large amounts of data can be transferred between the personal

computer and CNC control unit at high speed.

D A highly reliable optical fiber cable is used for connection.

D The machine tool builder can select an appropriate personal computer

according to the specifications of the machine system.

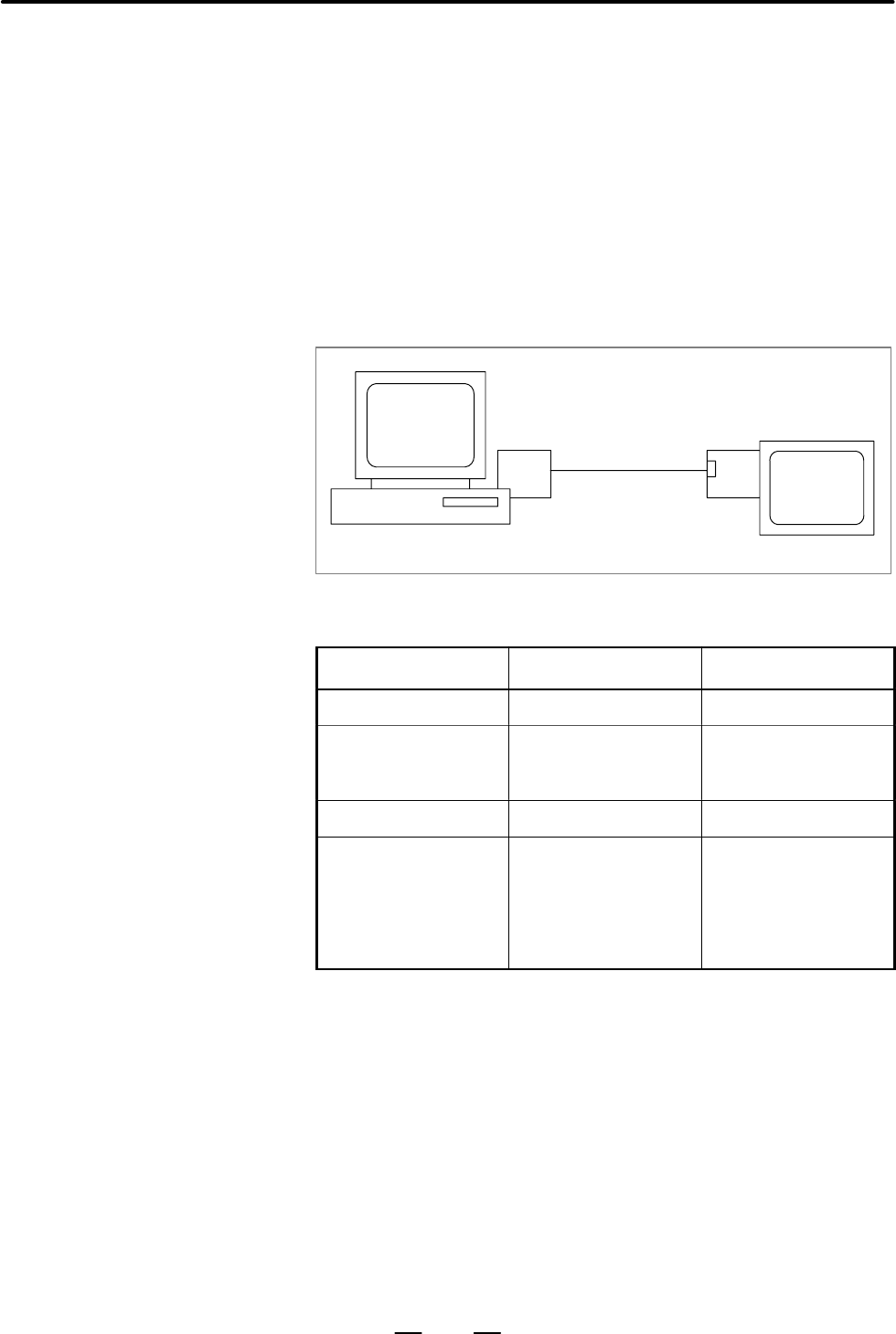

HSSB interface board HSSB interface board

Personal computer

High–speed

serial bus

Hardware for open CNC (system with commercially available

personal computer connected to CNC via high–speed serial bus)

Item Specification Remarks

Interface board on CNC For option slot

Interface board on per-

sonal computer

ISA specification

Power supply: +5 V

only

Connection cable Optical fiber cable Maximum length: 50 m

Personal computer

requirements

CPU: 486 or better

At least one ISA slot

The installation environ-

ment shall satisfy the

conditions described in

the manual supplied

with the personal com-

puter.

34.1

HIGH–SPEED SERIAL

BUS (HSSB)
