7. COORDINATE SYSTEMS

B–63502EN/01

NC FUNCTION

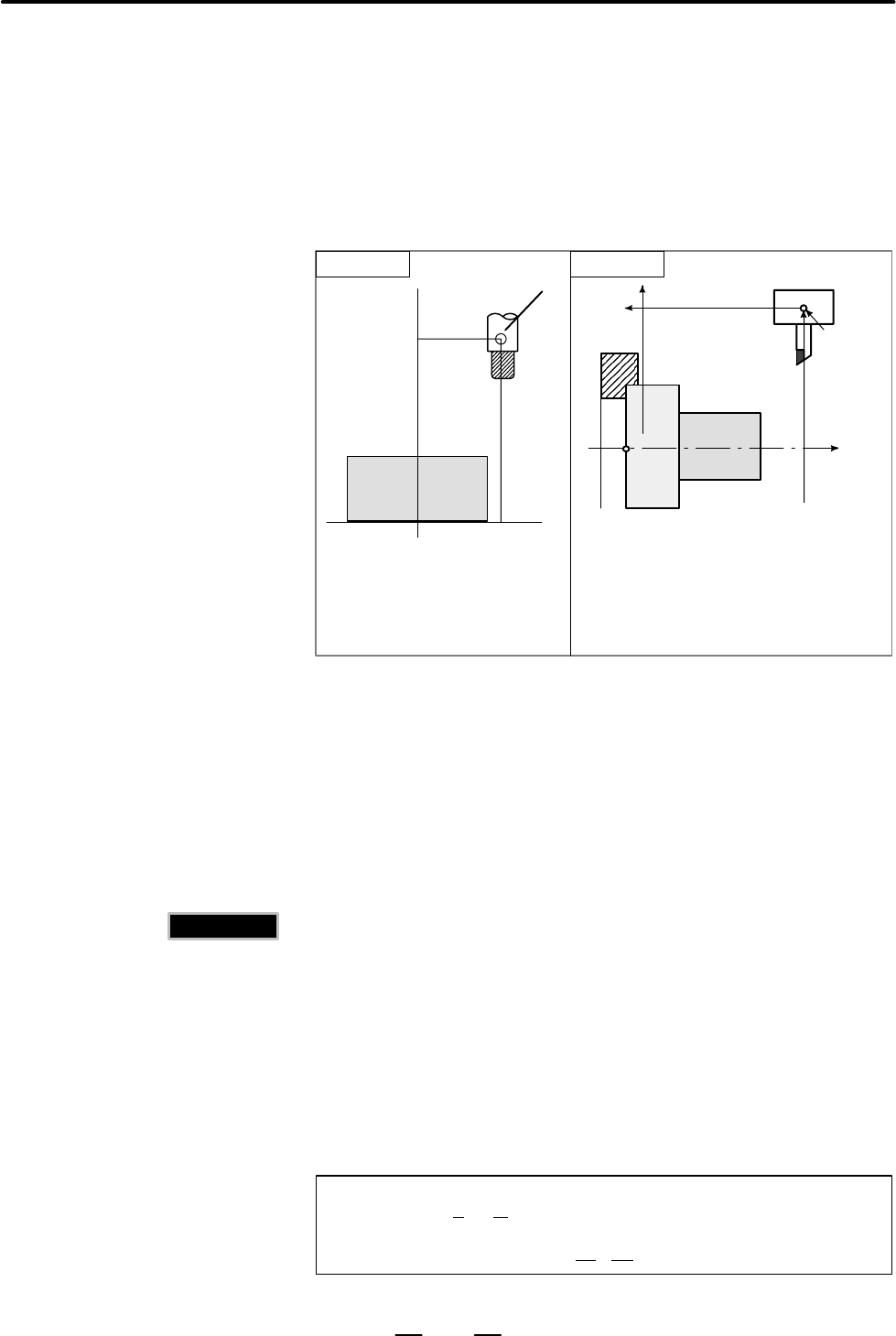

Set the reference point on the tool holder or turret as shown in the figure

below, then specify G92 at the beginning of the program. By specifying

an absolute command in this condition, the reference point is moved to

a specified position. To move the tool tip to a specified position,

compensate the distance between the reference point and the tool tip by

using tool length compensation (for the M system) or tool offset (for the

T system).

700.0

φ1200.0

600.0

1200.0

G92 600.0 Z1200.0 ;

Setting the start point at a given

reference point on the tool hold-

Reference

point

G92 1200.0Z700.0 ;

(diameter programming)

Setting the start point at a given reference

point on the turret

Start point

= reference

position

T seriesM series

When a new workpiece coordinate system is created by specifying G92,

it is determined so that a given point on the tool has a given coordinate

value. So, there is no need to be concerned with old workpiece coordinate

systems. Particularly when the start point for machining is determined

based on the workpiece, the G92 command is useful. In this case, a desired

coordinate system can newly be created even if an old workpiece

coordinate system is invalid.

A workpiece coordinate system can be shifted by using the following

command:

When this command is specified, a new coordinate system is created so

that the current coordinate value (x, z) at a given point on the tool (for

example, the tool tip) becomes (x+u, z+w).

For the x and u values, diameters must be set if diameter programming

is specified, or radii must be set if radius programming is specified.

(G91) G92 X(u) Z(w) ;

With G code system A: G50U(u)W(w);

D Example 2

D Example 3

(Shift of a workpiece

coordinate system)

T series

Format
