30. SAFETY FUNCTIONS

B–63502EN/01

NC FUNCTION

246

G22 X_ Y_ Z_ I_ J_ K_ ;

On/off of stored stroke check 2 is commanded by program as follows:

G22 : Stored stroke check function on

G23 : Stored stroke check function off

The designation of the forbidden area can be specified by parameters or

program.

The forbidden area can be changed for each workpiece. Selection

between inside or outside as the forbidden area is made by parameters.

The designation of the forbidden area can be specified by parameters or

program.

The forbidden area can be changed for each workpiece. Selection

between inside or outside as the forbidden area is made by parameters.

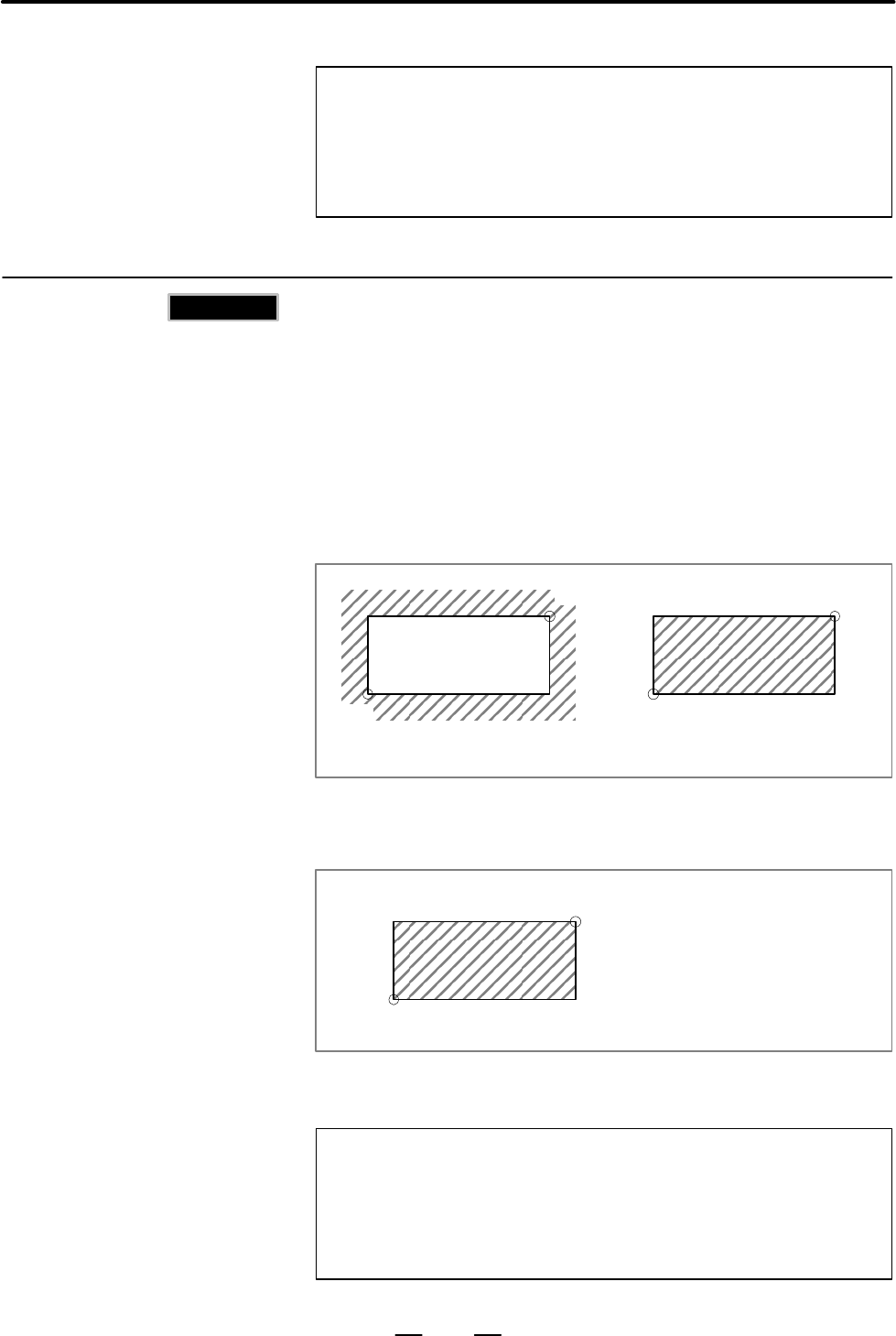

(X, Z)

(I, K)

(X, Z)

(I, K)

Inhibition area outside Inhibition area inside

Inside the area specified by parameters is the forbidden area.

, Z

,....)

, Z

,....)

This shaded area is the forbidden

area.

G22 X_ Z_ I_ K_ ;

On/off of stored stroke check 2 is commanded by program as follows:

G22 : Stored stroke check function on

G23 : Stored stroke check function off

Format

30.2.4

Stored Stroke Checks

2 and 3 (T series)

T series

Stored stroke check 2

(G22, G23)

Stored stroke check 3

Format
