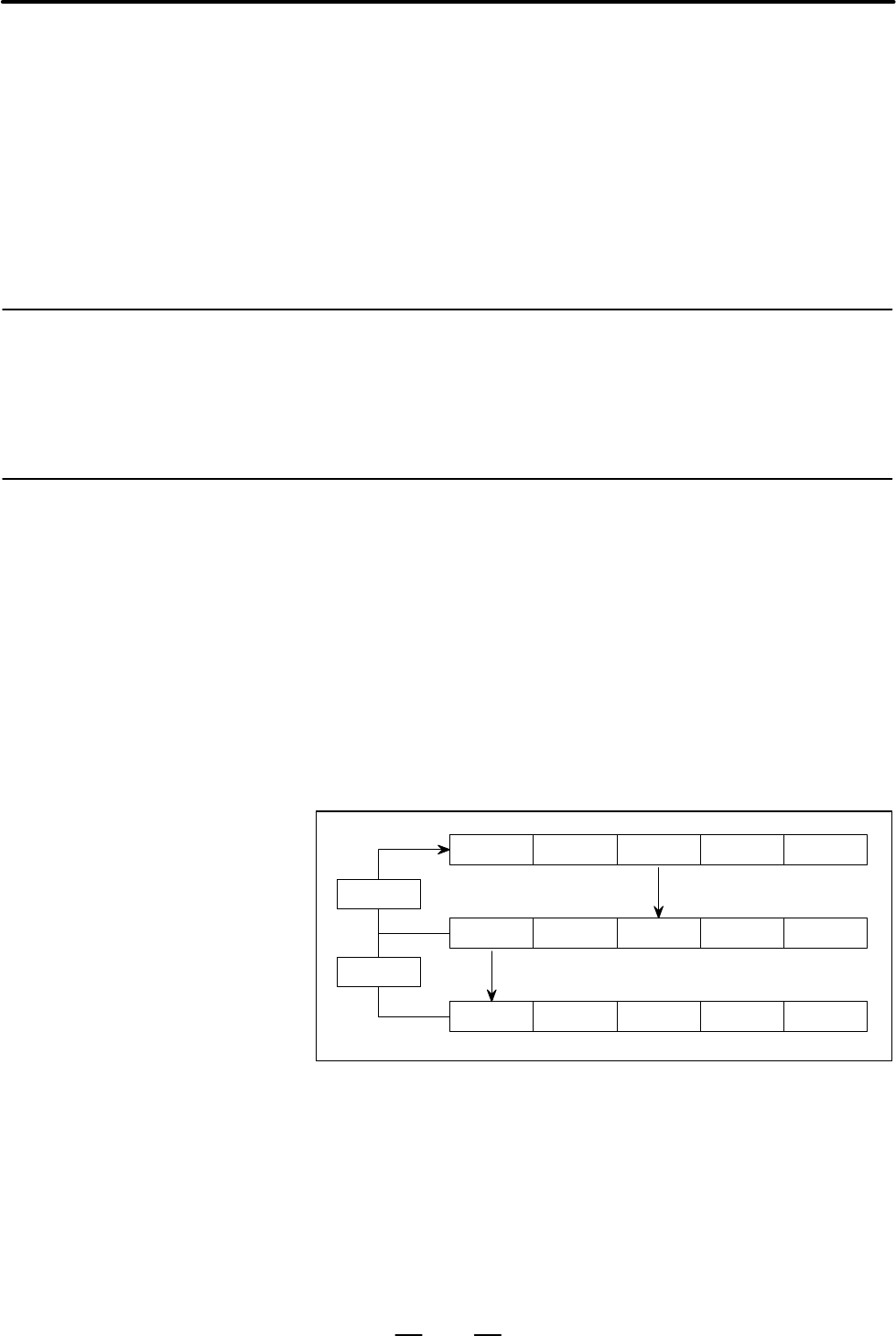

9. C-PROGRAM MEMORY DISPLAY

AND DEBUG FUNCTION

B–61863E–1/06

APPLICATION

PROGRAMMING GUIDE

430

Use the below methods to confirm that a user-created C program operates

properly.

(1) Diagnose through external operation of the CRT display and signal

states.

(2) Diagnose using the task monitor functions (see Edition II, Section

4.4).

(3) Execute the program up to a particular point (break point), then

diagnose by checking internal data (program work area).

The debug function enables diagnosis using the method described in (3).

(1) Break points : Up to 4

(2) Dump data : Up to 8 locations

(3) Total size of dump data : Up to 256 bytes (up to 32 bytes each)

Press the [DEBUG] soft key to display the parameter screen for the debug

function. When a break (execution interrupt) occurs due to a break

condition, press the [D.DUMP] soft key on the parameter screen to

display the contents of the CPU registers and specified internal data.

Press the [D.PRM] soft key to return to the parameter screen from the

screen displaying this data.

After parameters have been set and a break is being awaited, ”DBG”

blinks on the lower right of the PMC screen. Also, each breakpoint (BP1

to BP4: displayed in reverse video) is displayed at the bottom of the

debug function screen. When a break condition is fulfilled and a break

occurs, ”BRK” blinks on the lower right of the PMC screen.

Soft keys correspond to functions as follows:

BRK.NOD.DUMP EXEC INIT

GDT USRMEM

RET

DEBUG

BRK.NOD.PRM

RET

9.3

DEBUG FUNCTION

9.3.1

Specifications

9.3.2

Screen Display and

Operations
