9. C-PROGRAM MEMORY DISPLAY

AND DEBUG FUNCTION

B–61863E–1/06

APPLICATION

PROGRAMMING GUIDE

442

To display the title screen, press soft–key [TITLE] in menu screen.

The following information is displayed in title screen.

(1) Title data

D Machine tool builder name

D Machine name

D CNC and PMC type name

D PMC program No.

D Edition No.

D Program Drawing No.

D Created date of user program

D Author of user program

D Remarks

(2) PMC System Parameter

D Top address of Link control data of user program (LANGUAGE

ORIGIN)

D Top address and size of user program

(3) PMC System information

D Series and edition of C language control software

D Series and edition of PMC control software

CAUTION

The item in this screen is the information of the C language

user program. They are not the information of the ladder

program.

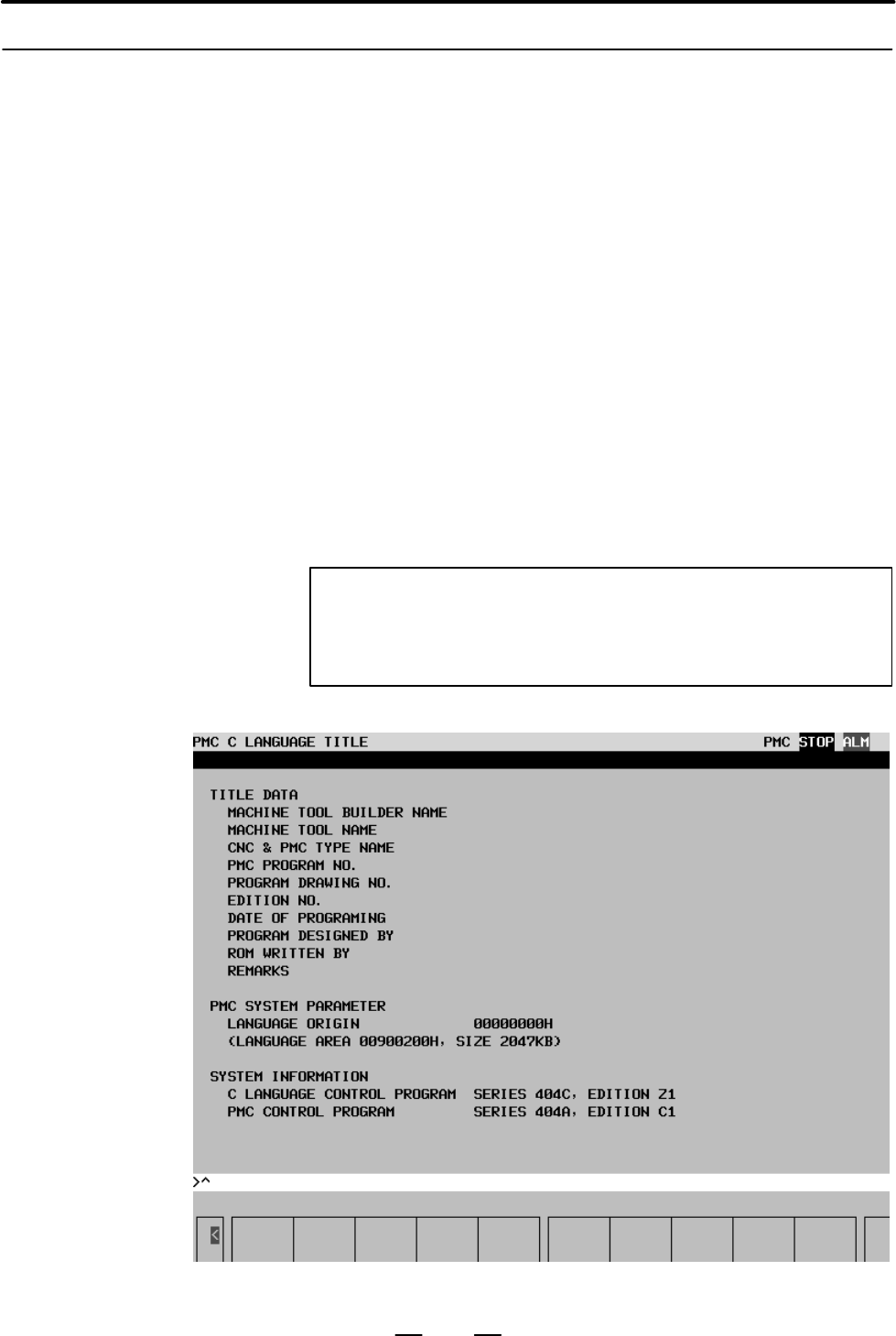

Fig.9.4.4 Title screen

9.4.4

C Language Title

Screen
