B–61863E–1/06

2. TASK CONTROL FUNCTION

PMC CONTROL SOFTWARE

(3) Execution ratio of PMC screen display to C program tasks

As explained in (1), PMC screen display (*c) has priority over the

execution of C program tasks (*d). So, when PMC screen display is

being performed, C program tasks do not generally have ample

opportunities to run.

When LANGUAGE EXEC RATIO is set on the system parameter

screen of the PMC programmer function, PMC screen display (*c)

and C program tasks (*d) can be performed according to the set ratio

as shown in the figure below.

By setting LANGUAGE EXEC RATIO, the C program can be

executed at regular intervals even when PMC screen display is in

progress.

When PMC screen display is not performed, C program tasks are

performed regardless of the LANGUAGE EXEC RATIO setting.

[Setting range of LANGUAGE EXEC RATIO]

0% to 99%

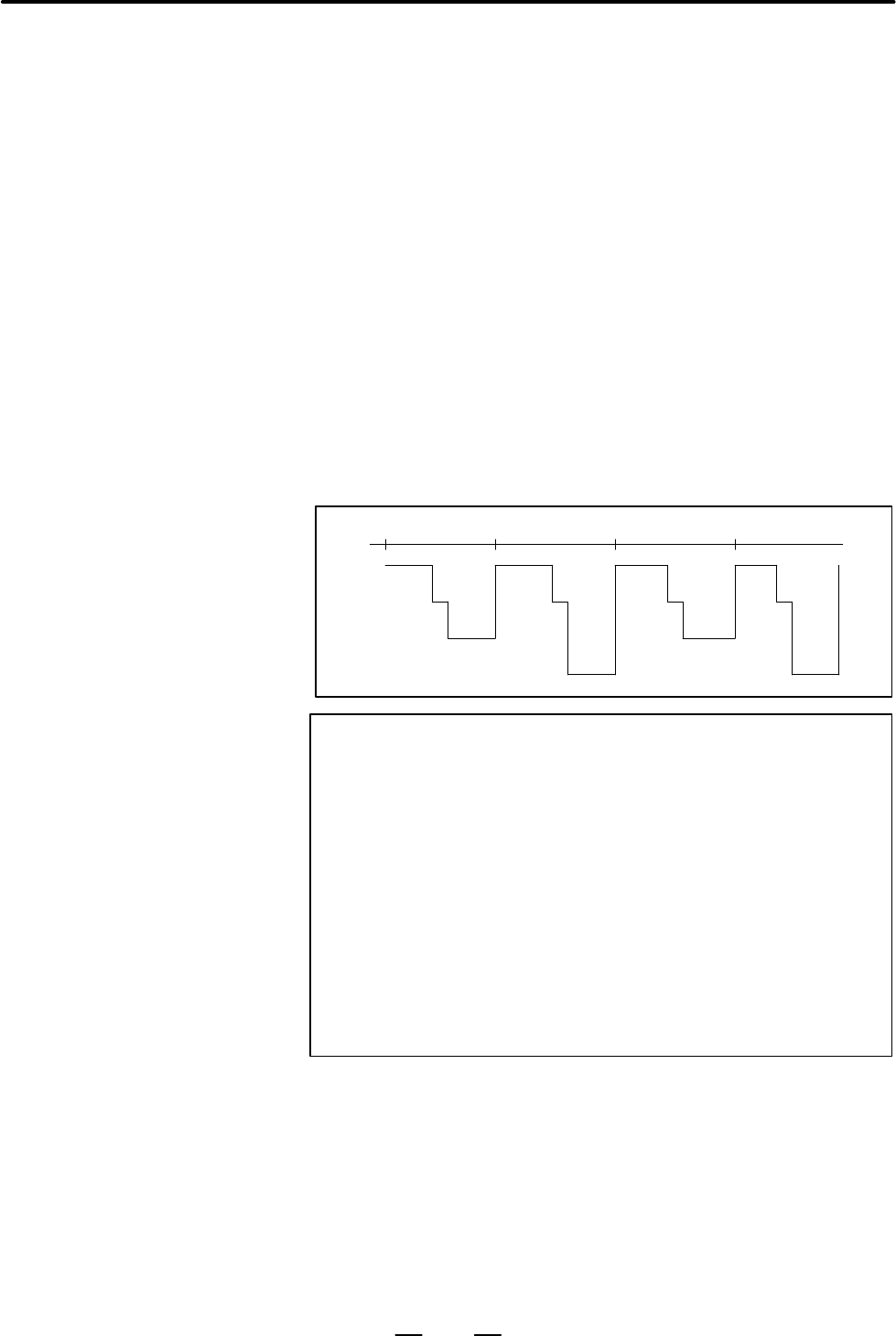

[Example]

When there is a highest-priority C task, the execution period is 8 ms,

LADDER EXEC is set to 80%, and LANGUAGE EXEC RATIO is

set to 50%, the following timing chart results:

0 8 16 24 (ms)

CAUTION

1 As the LANGUAGE EXEC RATIO value increases, the processing

time for PMC screen display decreases, which delays display

operation. Normally, set LADDER EXEC RATIO to 50%.

2 The priority of first-level and second-level ladder programs, the

highest-priority C program, and PMC screen display is controlled

by the PMC control software. The priority cannot be changed by

user applications.

3 For third-level ladder programs, set the task priority in the link

control statement data in the same way as for C program tasks.

If the priority is set to 0, (that is, if the link control statement

creation tool does not use third-level ladder programs,)

third-level ladder programs are not executed.
