PMC-MODEL SC/SC3/SC4/NB/NB2 (C Language Programming) Programming manual Page 598

Programming manual

Page of 619

/ 619

FANUC PMC C language function

Supplemental Programming Manual

01 01.05.29

Maruyama

New registration

B-61863E-1/06-1

EDIT DATE DESIG.

DESCRIPTION

17/23

TITLE

DRAW.NO.

9.5.6 C Language System Parameter Editor Screen

To edit the system parameter, press the soft-key [SYSPRM] in the C language title

screen.

ladder and C language program is running, the message “PROGRAM MUST

BE STOPPED TO EDIT. OK?” is displayed and you have to confirm if program may be

stopped or not to edit. If you can stop the program, press the soft-key [YES] and edit the

system parameter.

The following items can be edited in the C language system parameter editor screen.

•

The division ratio of execution for PMC screen display and language program.

•

The first address of the link control statement data in the language program.

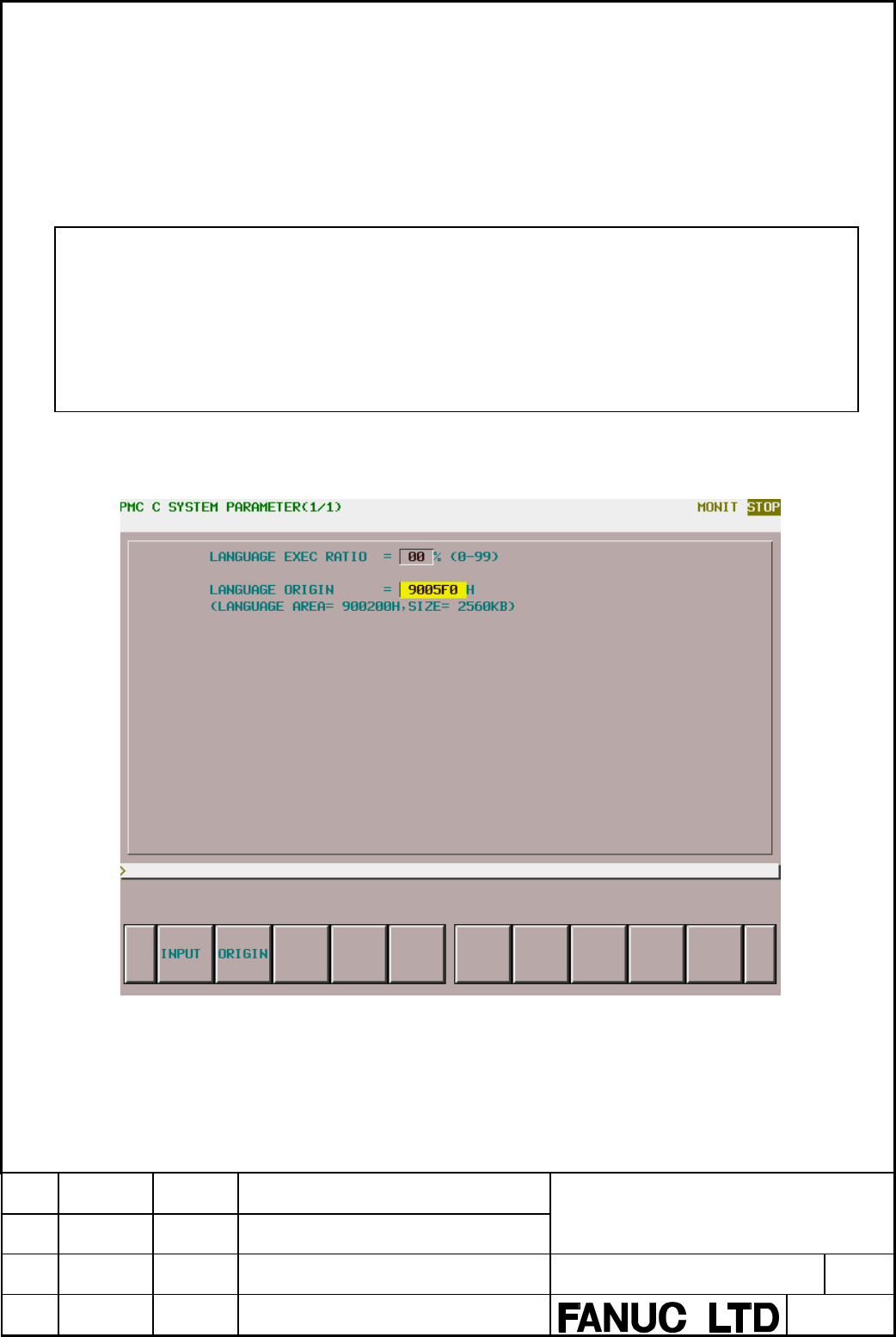

Fig.9.5.6 C Language System Parameter Editor Screen

WARNING

If a sequence program is stopped while the machine is operating, the machine may

behave unexpectedly. Before stopping the sequence program, make sure that nobody is

near the machine and that the tool cannot interfere with the workpiece or machine.

Incorrect operation of the machine presents an extreme risk of death or serious injury to

the user. Damage the tool, workpiece, and/or the machine is also likely.
