D.POWER MATE CNC MANAGER FUNCTIONSAPPENDIX B-65395EN/01

- 308 -

Set an axis name for coordinates using two characters (parameters

P24 and P25). If a setting is out of range, “ ” (space) is displayed.

When parameter P24 is set to 0, an axis name is 1, regardless of the

setting of parameter P25.

For details, see the description of parameters P24 and P25 in

Section B.5.

D.1.5.5 Machine Coordinates

The current position can be displayed using a machine coordinate

system.

(1) Display operations

Pressing the [POS] function selection soft key displays the

following soft key menu:

[WORK][ ][MACHIN][ ][ ]

Pressing the [MACHIN] soft key displays the machine coordinate

screen.

(2) Displays

Basically, the same screen as that used for the absolute coordinates

is used for the machine coordinates.

D.1.5.6 Alarms

If an alarm condition occurs in processing for a servo amplifier module,

the group number for the amplifier is displayed at the right end of the

message line on each screen. The alarm can be checked on the

corresponding alarm screen.

Example: "13" (indicating that an alarm condition has occurred in servo

amplifier modules in groups 1 and 3).

(1) Display operations

Pressing the [MSG] function selection soft key displays only an

error code on the screen.

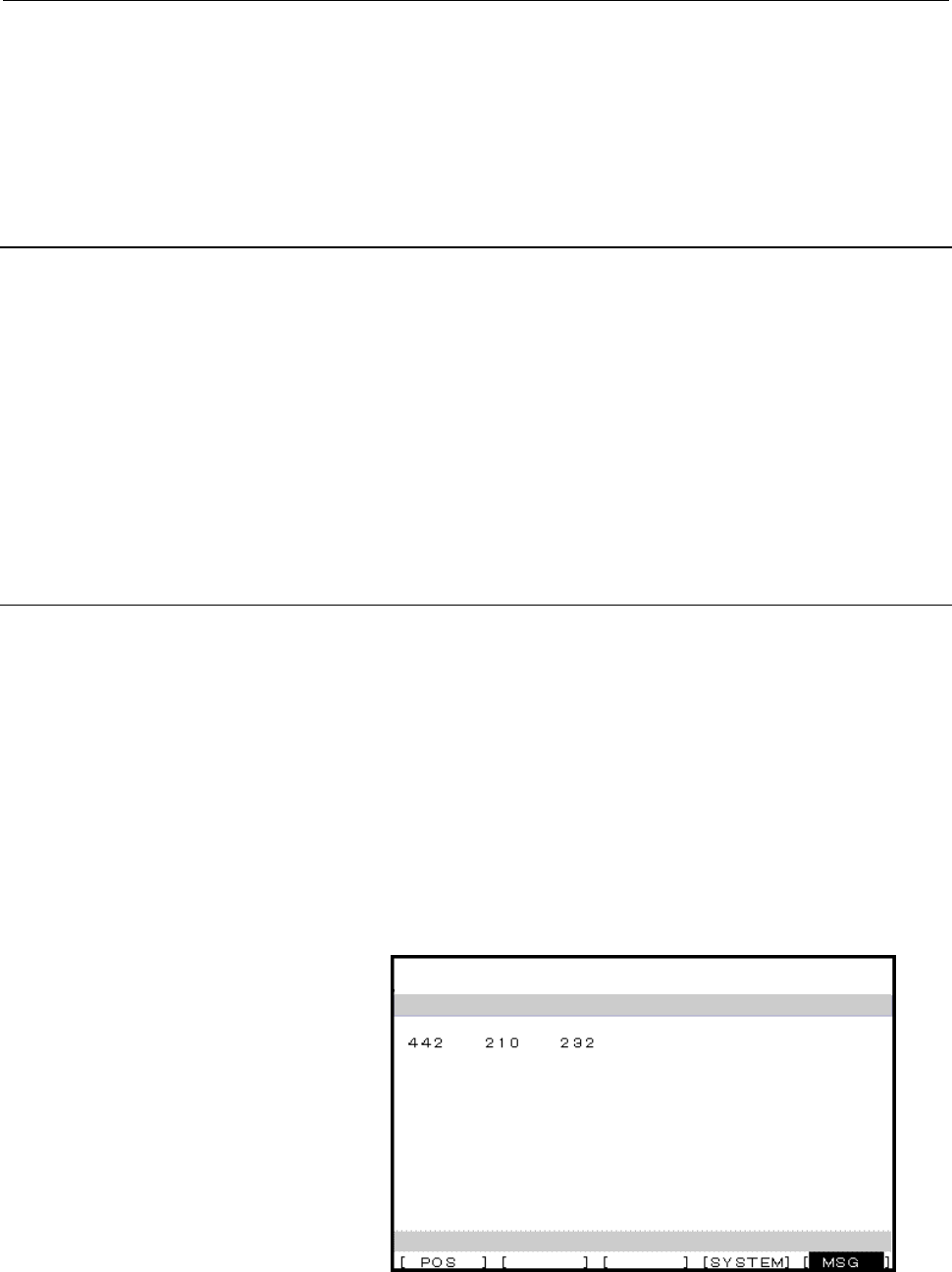

(2) Displays

ＰＯＷＥＲ　ＭＡＴＥ　ＣＮＣ　ＭＡＮＡＧＥＲ

ＡＬＡＲＭ

ＳＥＬＥＣＴ　ＡＣＴＩＶＥ　ＳＬＡＶＥ［＞］

１．ＧＲＯＵＰ０　／βｉ

Up to 40 items can be displayed.
