1. Fanuc
  2. SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor

SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor Programming manual Page 281

Programming manual
B–61803E–1/10
E. FANUC Super CAP T/CAP II T MACRO
COMPILER/EXECUTOR (Series 16/18)
and Super Capi T Macro Compiler/
EXECUTOR (Series 16i/18i/21iT)
APPENDIX
271

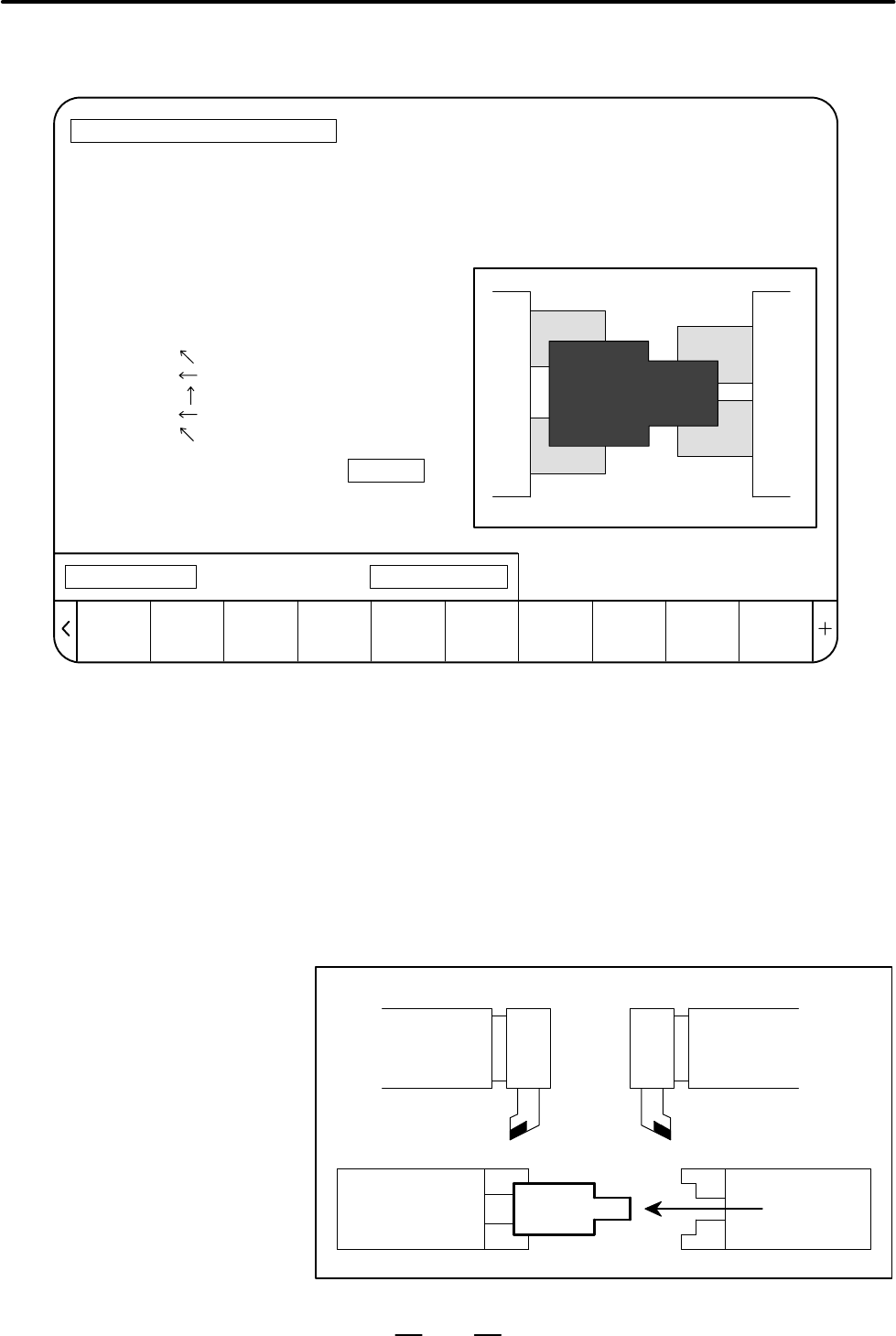

Example of transfer process screen:
NO. =1234 NAME=DEMONSTRATION
INITIAL SET MATERIAL SHAPE OUT–DIA IN–DIA WORK–LNG MAX–S COOLANT
FC25 BAR 100.000 154.000 2000 ON
FINISH X FINIFSH Z E–REMOVL PROD–LNG
0.200 0.100 2.000 150.000
PROD (01) AREA HEAD
BAR (R) OUT–END HEAD–L
PROD (01) AREA HEAD
BAR (F) OUT–END HEAD–L
PROD (02) TYPE HEAD Z POINT
TRANS. SYNCRO L→R
REED
COORD.
MCHN–C TOOL–D DETAIL
DATA
PLOT GUIDE
SOFTKEY TYPE
START X= 20.000 Z= 0
X= 35.000 Z= 20
X= 35.000 Z= 25
X= 50.000 Z= 25
X= 50.000 Z= 35
X= 60.000 Z= 50
PREP A NEW PROCESS PROGRAM
A transfer process is used with a lathe having facing spindles to
transfer a workpiece from spindle 1 to spindle 2 or vice versa.
For a transfer process, a user program can display up to 20 types of
operations, up to 12 data items for each type, and five soft keys for
each data item as in the case of an auxiliary process.
The example above shows the screen for reading, from the machine
coordinates, the Z-axis coordinate for transferring a workpiece from
spindle 1 to spindle 2.
Example of transferring a workpiece: Workpiece transferred between
spindles
Tool post 1
Tool post 2
Spindle 1 Spindle 2
Workpiece
