1. Fanuc
  2. SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor

SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor Programming manual Page 326

Programming manual
E. FANUC Super CAP T/CAP II T MACRO
COMPILER/EXECUTOR (Series 16/18)
and Super Capi T Macro Compiler/
EXECUTOR (Series 16i/18i/21iT)
B–61803E–1/10
APPENDIX
316

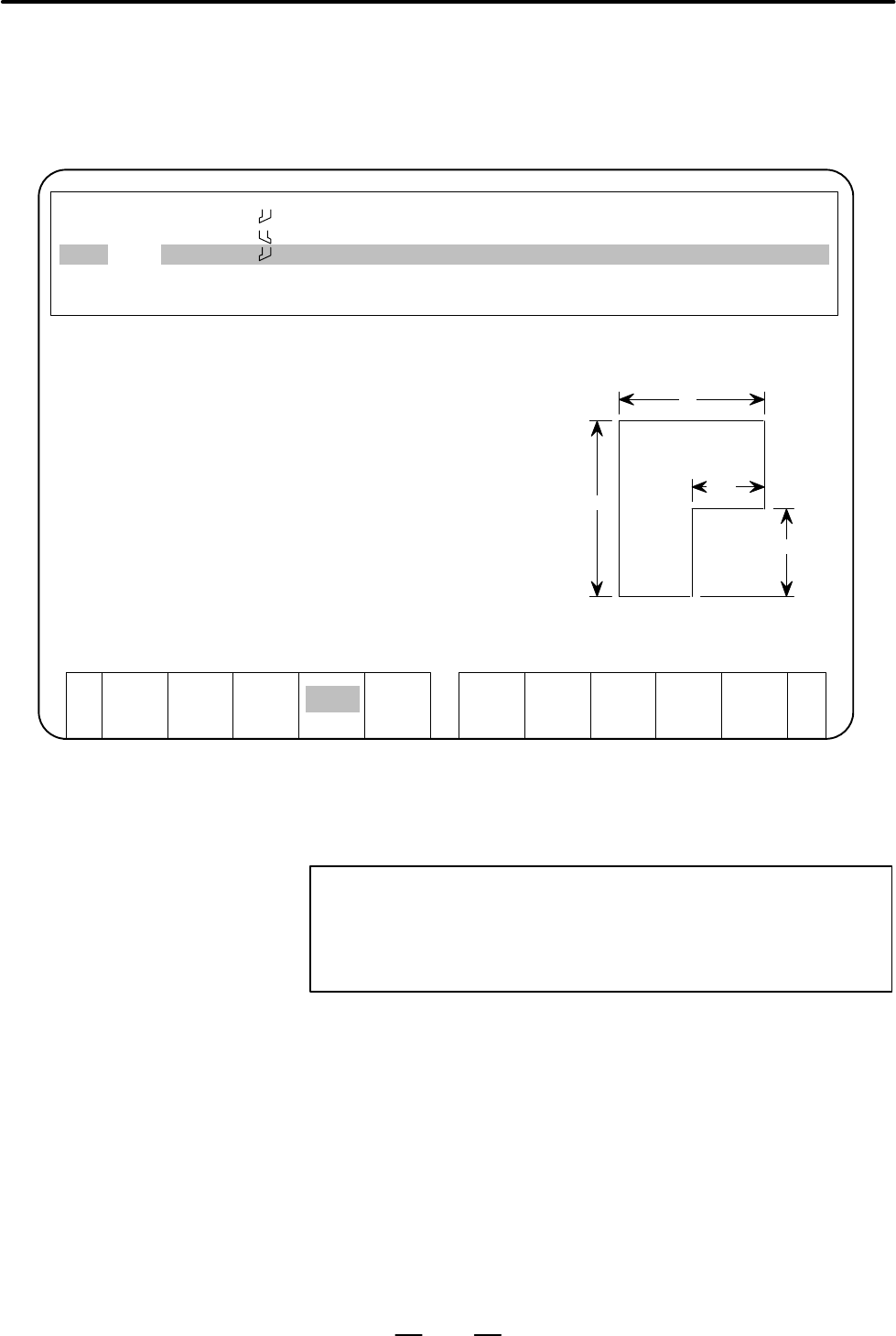

(10)Chuck/tailstock figure data
(a) Chuck figure data
To read the data for a chuck, using system variables #9951 to
#9955, set the corresponding chuck number in #9950.
*** CHUCK FIGURE ***
NO. TYPE L W L1 W1
1 #9951 #9952 #9953 #9954 #9955 [#9950= 1]
2 #9951 #9952 #9953 #9954 #9955 [#9950= 2]
3 #9951 #9952 #9953 #9954 #9955 [#9950= 3]
4 #9951 #9952 #9953 #9954 #9955 [#9950= 4]
5 #9951 #9952 #9953 #9954 #9955 [#9950= 5]
6 #9951 #9952 #9953 #9954 #9955 [#9950= 6]
7 #9951 #9952 #9953 #9954 #9955 [#9950= 7]
8 #9951 #9952 #9953 #9954 #9955 [#9950= 8]
9 #9951 #9952 #9953 #9954 #9955 [#9950= 9]
10 #9951 #9952 #9953 #9954 #9955 [#9950=10]
101 #L OUTER T0101 RN 0. 400 AC 95 AN 80 TW 20. 000
102 #R OUTER T0202 RN 0. 400 AC 95 AN 55 TW 20. 000
103 #L OUTER T0303 RN 0. 400 AC 95 AN 55 TW 20. 000
251 #L OUTER TH T0404 RN 0. 400 AN 60 TW 20. 000
252 #R OUTER TH T0505 RN 0. 400 AN 60 TW 20. 000
W
L
L1
W1
EXT. MENU
RETRN
INT. OUT-S CHUCK TAIL
STOCK
<TYPE>
External jaw : #9951=1
Internal jaw : #9551=2
Special external jaw : #9551=3
NOTE
The OUT-S type is supported only when the optional 60-chuck
function is provided. This function provides data on 60 different
chucks.
