The triple size is 3 times as wide as and 2 times as long as the normal size.
The characters which can be displayed with the triple size characters are
the alphabet, numbers, minus marks, decimal points and blanks. No other
characters can be displayed with the triple size.
A 2-by-2 character is two times taller and two times wider than a standard
character. Fifteen types of 2-by-2 characters can be displayed: numbers
(0 to 9), plus sign, minus sign, decimal point, asterisk, and slash. Note,
however, that the Greek character φ is displayed for a slash.
NOTE
Only the Series 20 allows 2-by-2 character display. With the
Series 16/18/21, 2-by-2 characters cannot be displayed; A4
cannot be specified.

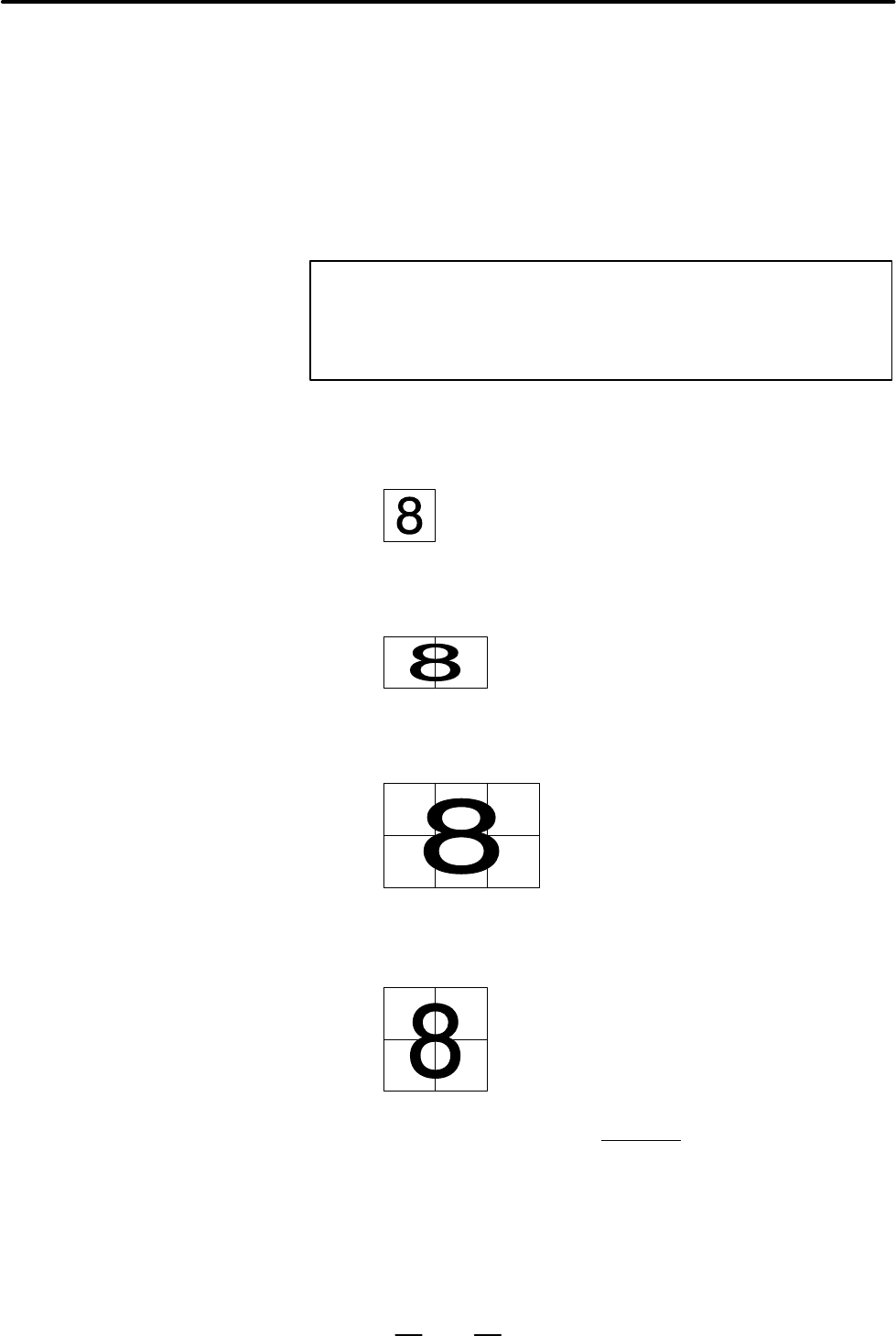

1. Standard character
G243 Xx Yy A1 (8)
2. Full-size character
G243 Xx Yy A2 (8)
3. Triple-size character (3-by-2 character)
G243 Xx Yy A3 (8)
4. 2-by-2 character
G243 Xx Yy A4 (8)
Bink control is commanded by the address B.
B0 = Does not blonk.
B1 = Blinks slowly. (Energized for about 1/2 sec. and deenergized
for about 1/4 sec..)
B2 = Blinks quickly. (Energized for about 1/4 sec. and deenergized
for about 1/8 sec..)
