1. Fanuc
  2. SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor

SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor Programming manual Page 76

Programming manual
6. FUNCTIONS OF THE MACRO
EXECUTOR
B–61803E–1/10
PROGRAMMING
66

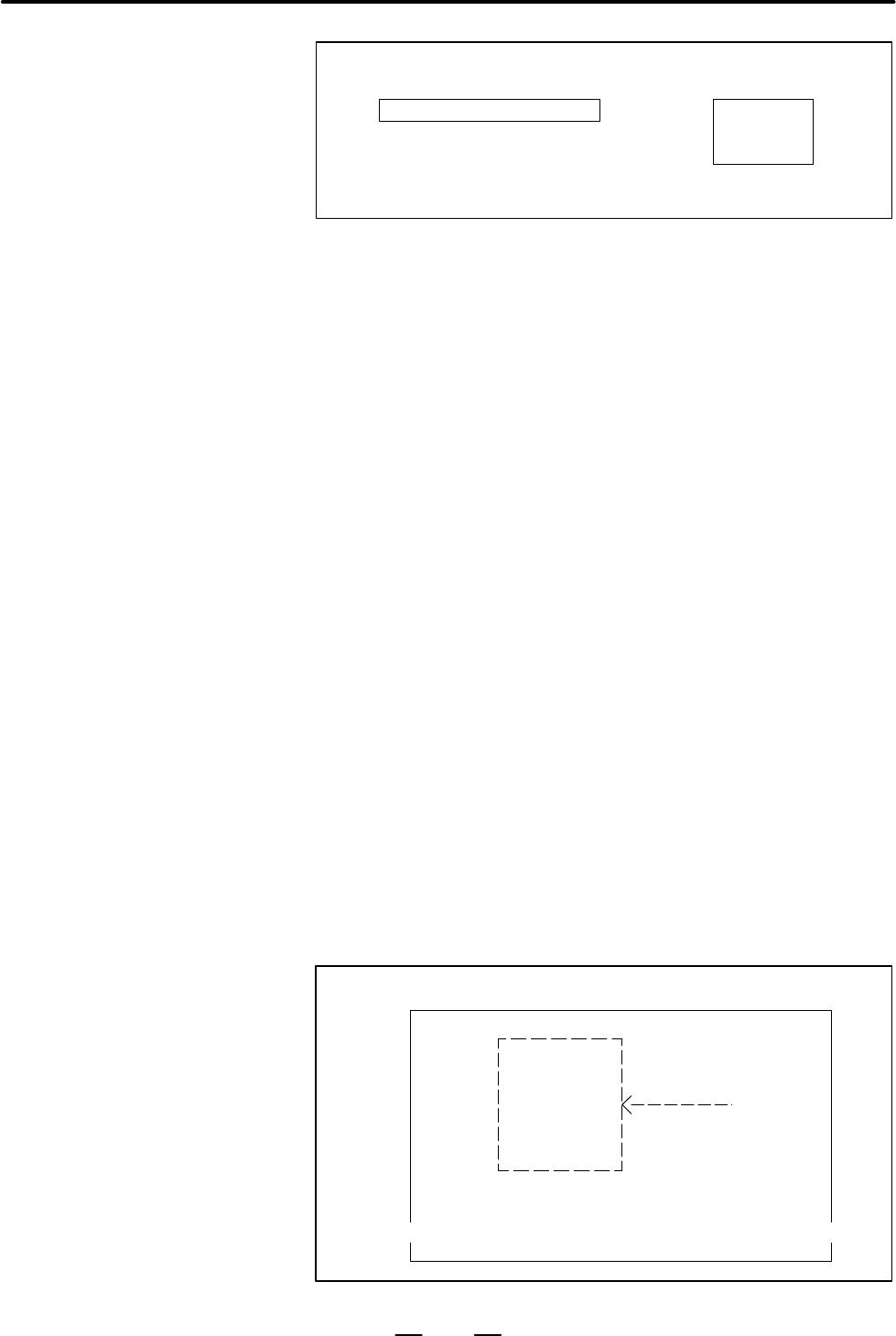

(Ii,Jj)
(Xx,Yy)
(Xx,Yy)
(Ii,Jj)
(Command format)
G204 X_ Y_ I_ J_ [P ];
X: X coordinate of the start of a rectangle
Y: Y coordinate of the start of a rectangle
I : X coordinate of the end of a rectangle
J : Y coordinate of the end of a rectangle
P : Painting control= 1 : Painting in rectangle (red)
= 2 : Painting in rectangle (green)
= 3 : Painting in rectangle (yellow)
= 4 : Painting in rectangle (blue)
= 5 : Painting in rectangle (purple)
= 6 : Painting in rectangle
(bluish green)
= 7 : Painting in rectangle (white)
Command in parentheses can be omitted.
The color of boundary of a rectangle is of specified by G240P_ and
painted color in rectangle is of specified by address P.
When address P is omitted, only boundary of a rectangle is displayed.
After the painted color is specified by P, the color remains the following
movement. That is, the color specified by P changes the P value of
G240P_.
Type of line of rectangle is of a type specified by the line type specification
command (G244P_).
(2) Example
G244 P1;
G240 P1;
G204 X-200 Y150 I0 J10;
–320 0 319
Boundary
line is red.
0
–200
~ ~
199
