SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor Programming manual Page 75

Programming manual
B–61803E–1/10
6. FUNCTIONS OF THE MACRO
EXECUTOR
PROGRAMMING
65
G240P1;
G244P0;
G242X0Y0;
G01X100;
Y100;
X0;
Y0;
G240P4;
G242X50Y50;
G01X150;
Y150;
X50;
Y50;
G206P0X110Y110;
Blue
Red
Blue
Graphic cursor can be displayed in the conversational macro.
(Command Format)
G249 Pp Xxxx Yyyy;
p : Control code
=0 : Display on (lit)
=1 : Display on (Blinks at low speed)
=2 : Display on (Blinks at high speed)
=3 : Display off
xxx/yyy : Graphic cursor display position
(Graphic coordinate)
(When display off is specified, this specification
is ignored. It can be omitted).

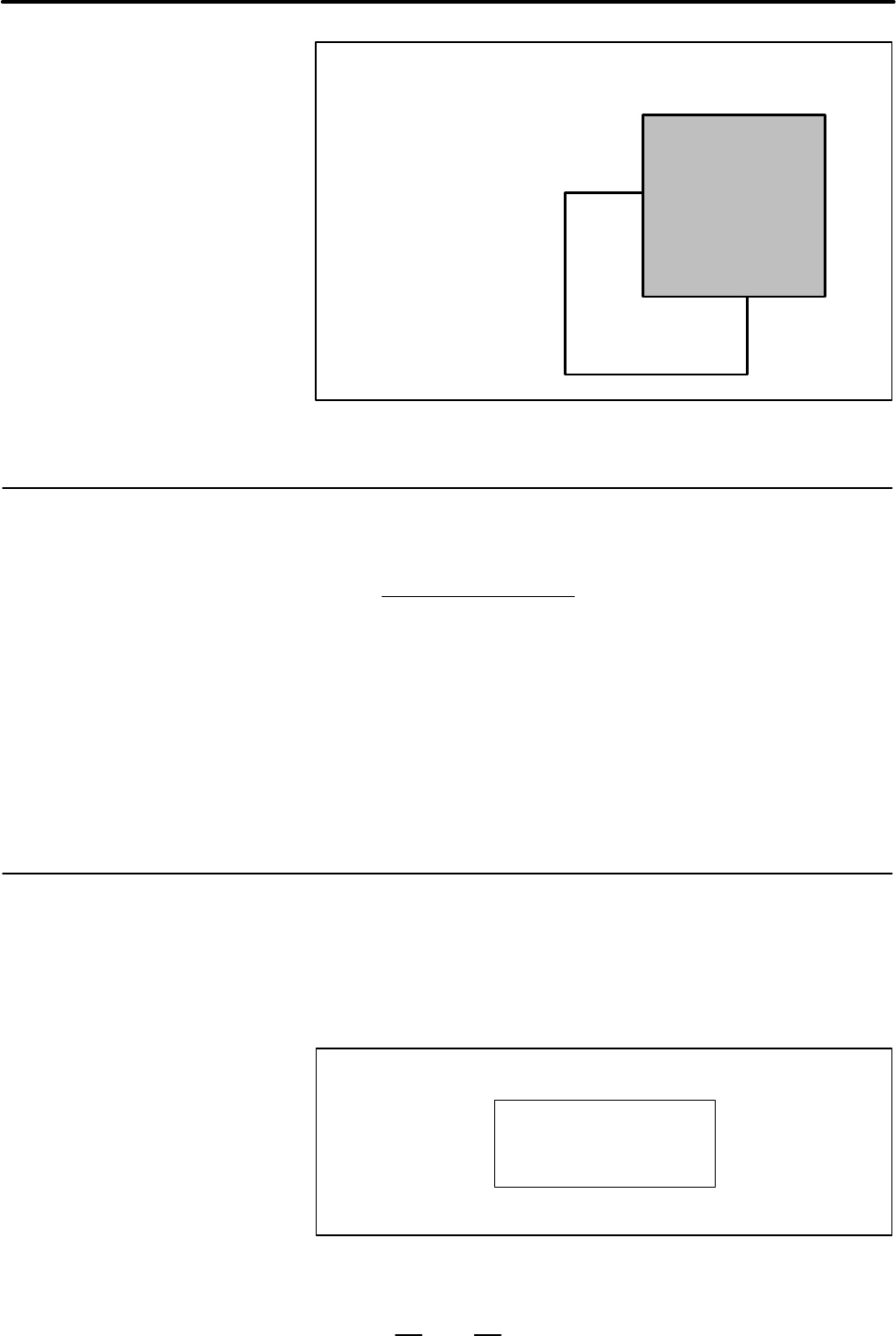

In a conversational macro, a rectangular figure can be displayed.
(1) Function
In rectangular display, a rectangle in which addresses X and Y, I and
J become diagonal positions is displayed.
(Xx,Yy)
(Ii,Jj)
Addresses X and Y, I and J are any position that can create a rectangle.
6.1.4
Graphic Cursor Function
6.1.5
Rectangular Display
Funciton
