SERIES 0i/16/18/20/21 Macro Compiler/Macro Executor Programming manual Page 500

Programming manual
M. SCREEN DISPLAY ON A VGA
GRAPHICS DISPLAY UNIT
B–61803E–1/10
APPENDIX
490
=9 Color of color palette 9. .
=10 Color of color palette 10. .
=11 Color of color palette 11. .
=12 Color of color palette 12. .
=13 Color of color palette 13. .
=14 Color of color palette 14. .
=15 Color of color palette 15. .
L: Specification of blinking
=0 Non–blinking. .
=1 Blinking. .

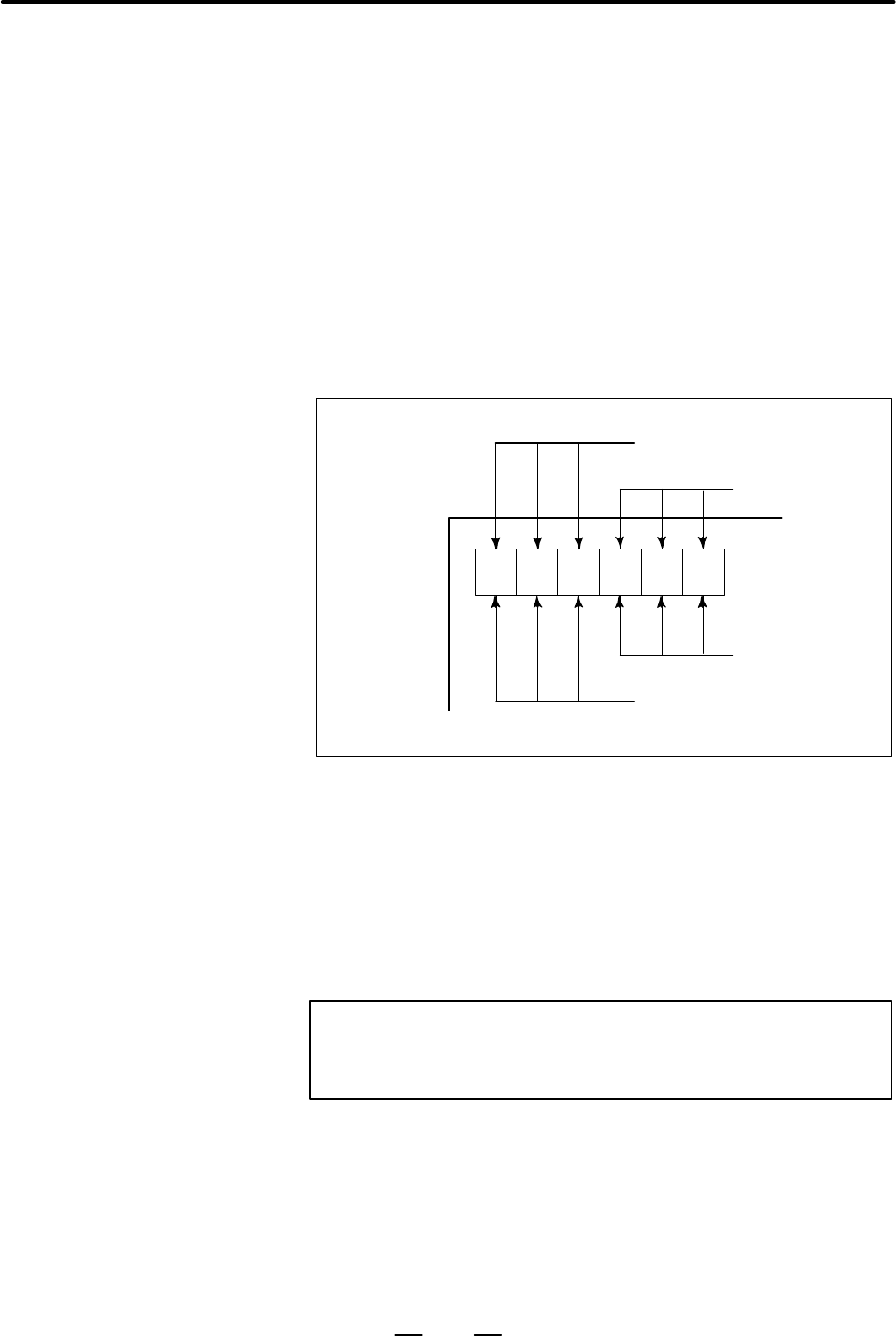

The following specification displays the colors shown below:
G240 P1 C2 ;
G243 X0 Y0 (ABC) ;
G240 P3 C4 ;
G243 (XYZ) ;
Characters in red
Green background
Blue background
Characters in yellow
ZABCXY
When only addresses P and C are specified, the specification of 0 at
address L is assumed.
G240 P1 ; Character color: Color of color palette 1
Background color: (No change)
Blinking: Non–blinking
G240 C1 ; Character color: (No change)
Background color: Color of color palette 1
Blinking: Non–blinking
NOTE
Color palettes cannot be set using the executor. Those set
using the CNC are used.
