When the cycle is performed using G77, a skip signal can be input to

terminate the cycle. When a skip signal is input, the current operation

sequence is interrupted or completed, then the cycle is terminated.

The following shows how the system operates when the skip signal is

input during each operation sequence.

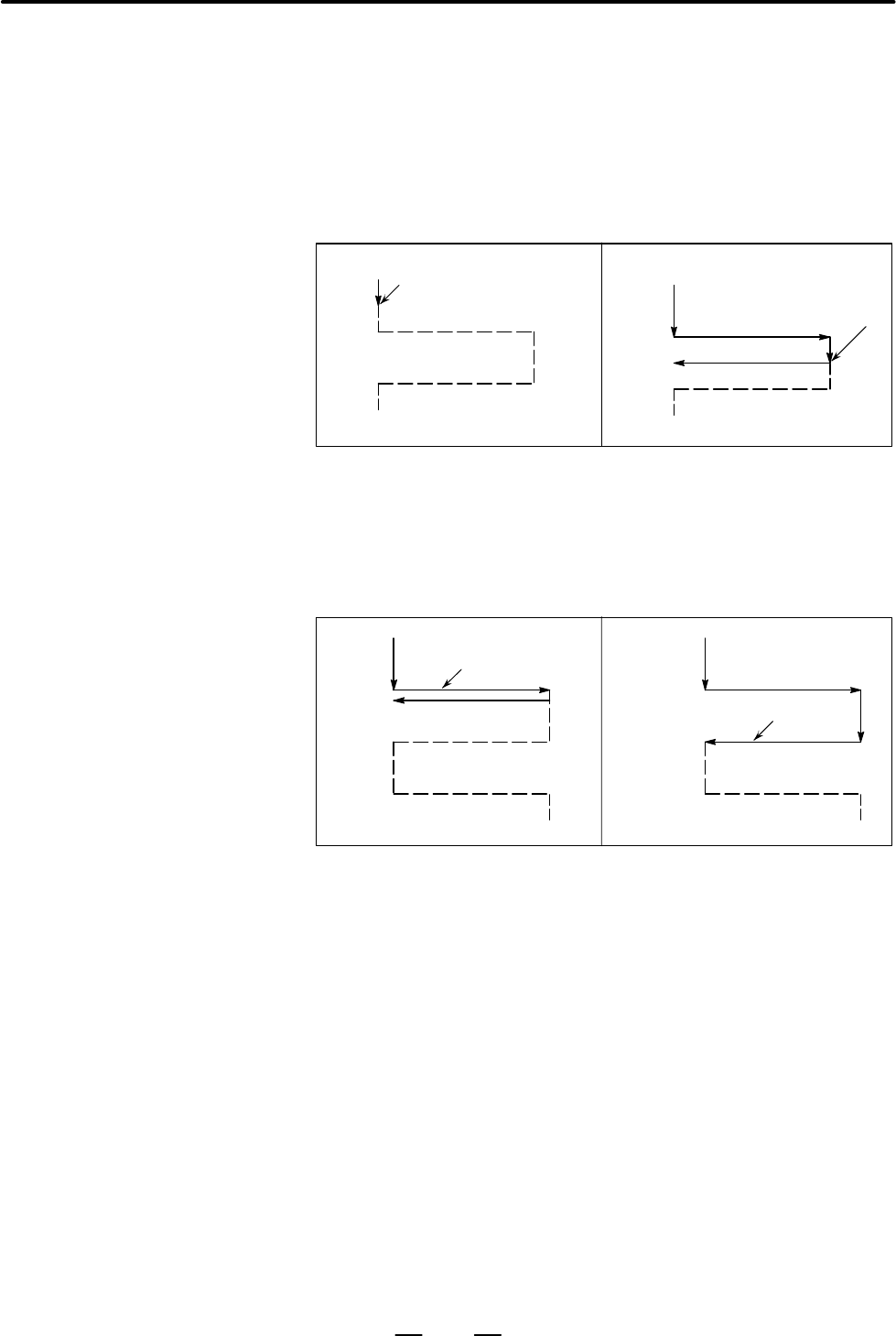

D When the skip signal is input during operation sequence 1 or 4 (cutting

feed specified by I or J), cutting is stopped immediately and the tool

returns to the X (Z) coordinate at which the cycle started.

Skip Signal

Skip Signa

(End)

D When the skip signal is input during operation sequence 2 or 5 (dwell),

dwell is stopped immediately and the tool returns to the X (Z)

coordinate at which the cycle started.

D When the skip signal is input during operation sequence 3 or 6

(movement), the tool returns to the X (Z) coordinate at which the cycle

started after the movement specified by X (Z) is completed.

Skip Signal

(End)

Skip Signal

X, (Z), I, J, and K must all be specified in incremental mode.

I, J, X, and Z in canned cycles are modal data common to G75, G77, G78,

and G79. They remain valid until new data is specified. They are cleared

when a group 00 G code other than G04 or a group 01 G code other than

G75, G77, G78, and G79 is specified.

D Skip signal

Limitations

D X(Z), I, J, K

D Clear
