PROGRAMMING20. AXIS CONTROL FUNCTIONS

B–64124EN/01

408

When the angular axis makes an angle other than 90° with the

perpendicular axis, the angular axis control function controls the distance

traveled along each axis according to the inclination angle. A program,

when created, assumes that the angular axis and perpendicular axis

intersect at right angles. However, the actual distance traveled is

controlled according to an inclination angle.

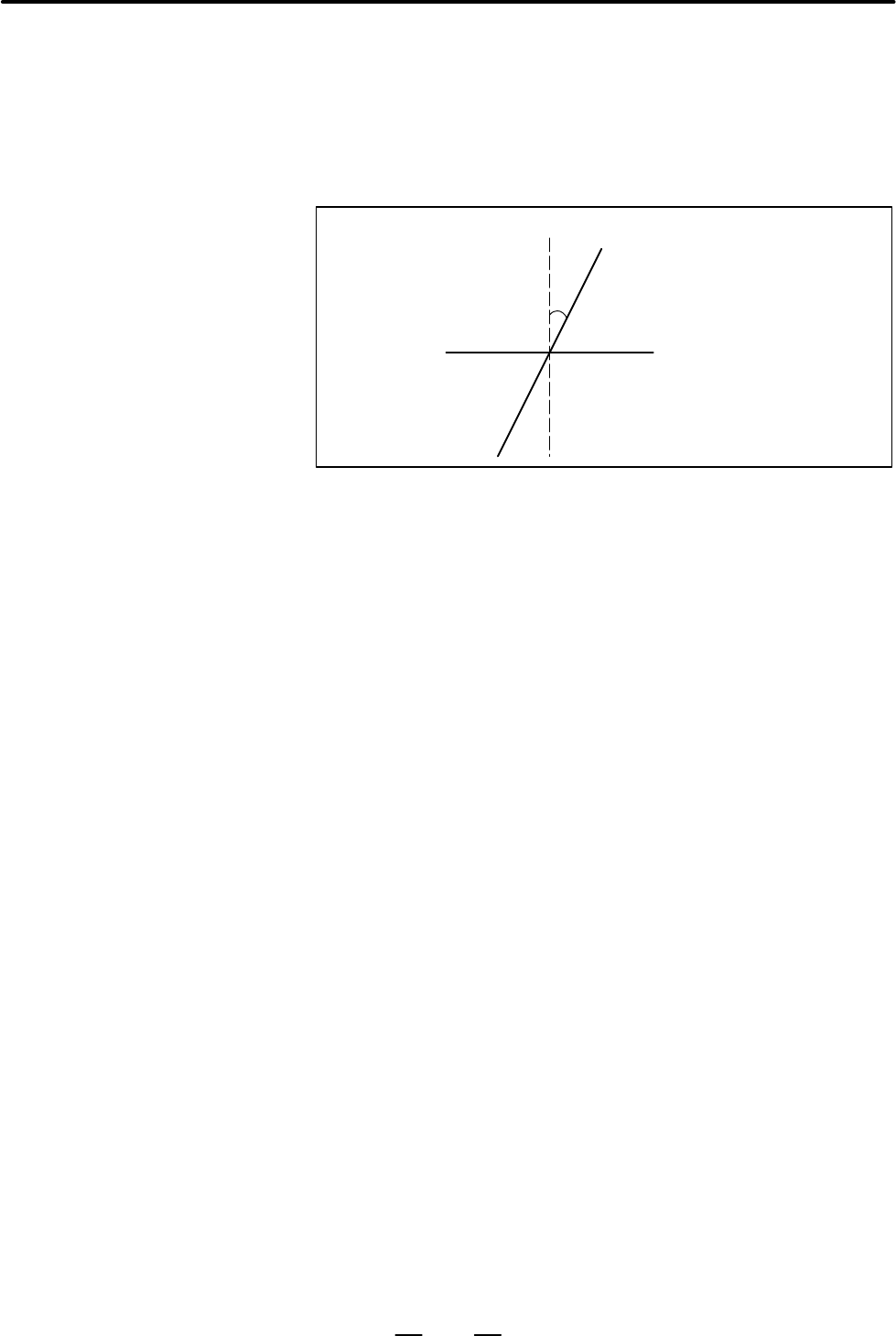

+Y Coordinate system actually used

(Angular axis)

Program coordinate system

+Z (Perpendicular axis)

θ : Inclination angle

When the angular axis is the Y–axis and the perpendicular axis is the

Z–axis, the amount of travel along each axis is controlled according to the

formulas shown below.

The distance traveled along the Y–axis is determined by the following

formula:

Ya=Yp/cosθ

The distance traveled along the Z–axis is corrected by the inclination of

the Y–axis, and is determined by the following formula:

Za=Zp–Yp*tanθ

The speed component along the Y–axis is determined by the following

formula:

Fa=Fp/cosθ

Ya, Za, Fa : Actual distance and speed

Yp, Zp, Fp : Programmed distance and speed

The angular and perpendicular axes for which angular axis control is to

be applied must be specified beforehand, using parameters (No. 8211 and

8212).

Parameter AAC (No. 8200#0) enables or disables the inclined axis

control function. If the function is enabled, the distance traveled along

each axis is controlled according to an inclination angle parameter (No.

8210).

Parameter AZR (No. 8200#2) enables angular axis manual reference

point return only with a distance along the angular axis.

By setting the normal axis/angular axis control invalid signal NOZAGC

to 1, slanted axis control only for the angular axis can be available.

In this time the angular axis are converted to those along the slanted

coordinate system without affecting commands to normal axis.

An absolute and a relative position are indicated in the programmed

Cartesian coordinate system.

20.3

ANGULAR AXIS

CONTROL

Explanations

D Method of use

D Invalidity of normal axis

D Absolute and relative

position display
