14. COMPENSATION FUNCTION

297

When a tool with a rotation axis (C–axis) is moved in the XY plane during

cutting, the normal direction control function can control the tool so that

the C–axis is always perpendicular to the tool path (Fig. 14.9 (a)).

Tool

Programmed tool path

Normal direction (in

which the tool moves)

C–axis

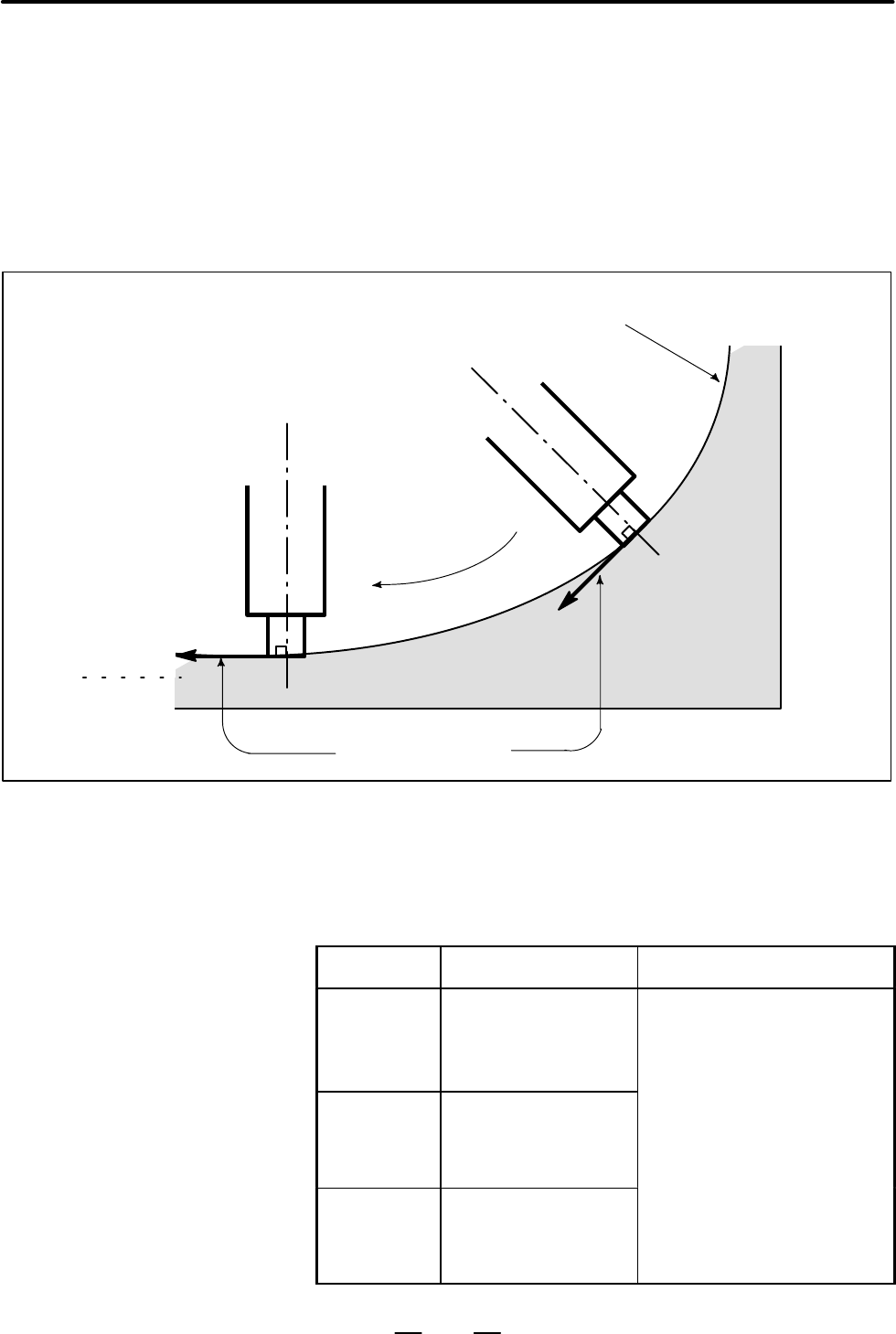

Fig. 14.9 (a) Sample Movement of the tool

G code Function Explanation

G41.1 or G151

Normal direction

control left

If the workpiece is to the right of the

tool path looking toward the direc

tion in which the tool advances

the normal direction control le

(G41.1 or G151) function is speci-

G42.1 or G152

Normal direction

control right

(G41.1 or G151) function is speci-

fied.

After G41.1 (or G151) or G42.1 (o

G152) is specified, the norma

direction control function is en

abled (normal direction control

G40.1 or G150

Normal direction

control cancel

abled (normal direction control

mode).

When G40.1 (or G150) is spec

fied, the normal direction contro

mode is canceled.

14.9

NORMAL DIRECTION

CONTROL

(G40.1, G41.1, G42.1

OR G150, G151,

G152)

Format
