QuickTurn Electronic Lathe Version 0i_V1_10 Operators manual Page 11

Operators manual
QuickTurn™
GE Fanuc Automation S.A. Page 10 GFKE-0047C-EN

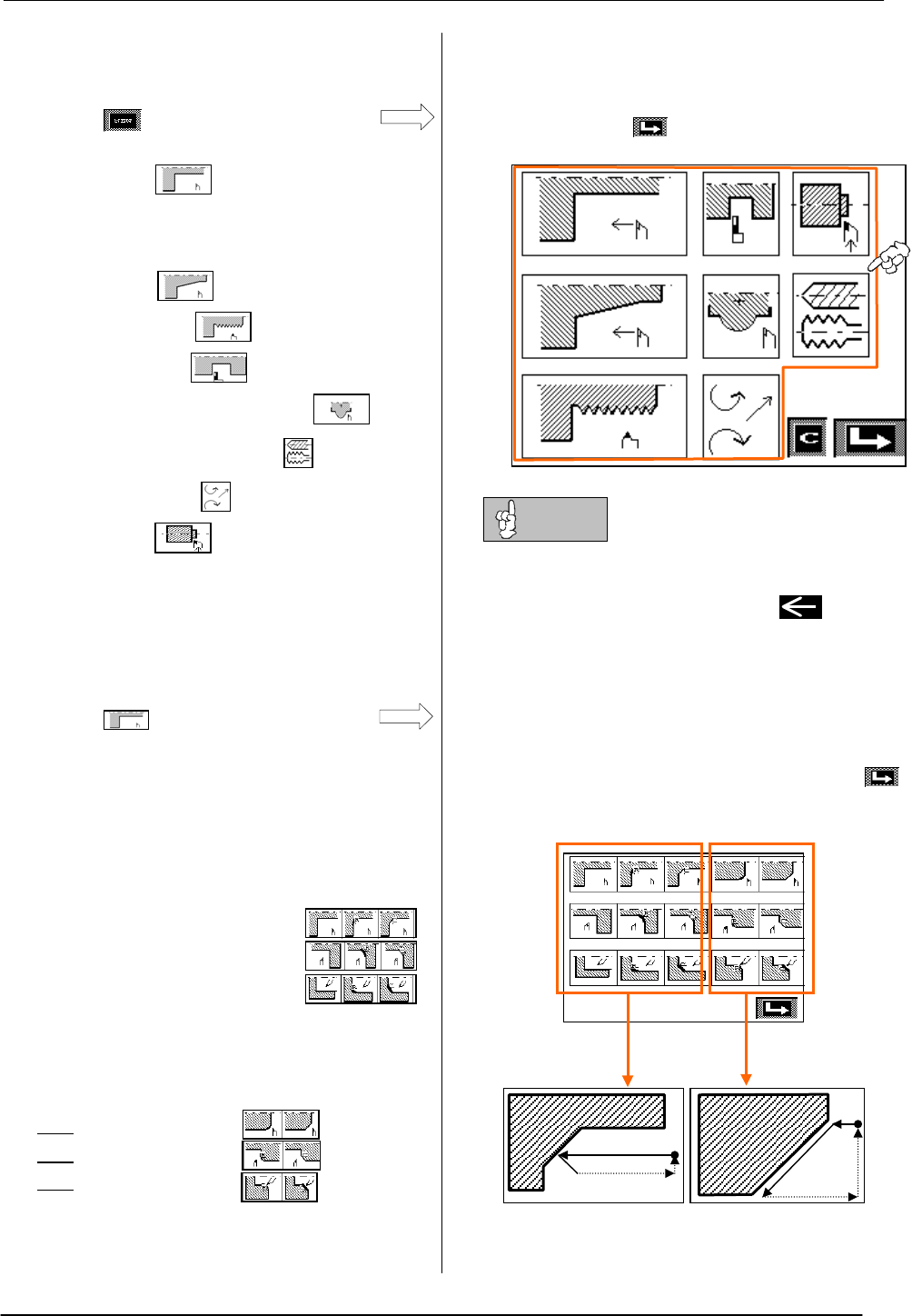

4.1.5 Overview of Available Cycles
By pressing icon on main screen cycle
selection screen opens.
- Stop Cycles
- Standard
- Face
- Taper Cycles
- Threading Cycles
- Grooving Cycles
- External Radius Cutting Cycles
- Drilling and Tapping Cycles
- Single Block Cycle
- Facing Cycle
4.2 Stop Cycles
By pressing icon, stop cycle selection
screen opens. As soon as the geometry data of
stop cycle have been saved electronic stops for X
and Z axis become active. Stops prevent tool from
moving into protected X or Z area.
Two groups of stop cycles are available
Standard Stop Cycles (9 Cycles)
- Outer Corner/Radius/Chamfer
- Outer Back Corner/Radius/Chamfer
- Inner Corner/Radius/Chamfer
The standard cycles are basically designed for
general machining.
Face Stop Cycles (6 Cycles)
- Face Outer Radius/Corner
- Face
Back Radius/Corner
- Face
Inner radius/Corner
The face cycles are basically designed for
machining chamfers and radiuses at workpiece
corners.
Cycle selection screen. To select a cycle press on
touch areas. Press to return to main screen
In most of the cycles it is not necessary to insert a
value in all data items. Data items in which a
value must be inserted are marked by sign.
Stop cycle selection screen. To select cycle and
edit geometry data press on touch areas. Press
to return to main screen
Cut
Cut
Linear cutting to
workpiece shape
Cutting along
workpiece shape
STANDARD
FACE
NOTE
Previous page
Next page
