QuickTurn Electronic Lathe Version 0i_V1_10 Operators manual Page 20

Operators manual
QuickTurn™
GE Fanuc Automation S.A. Page 19 GFKE-0047C-EN

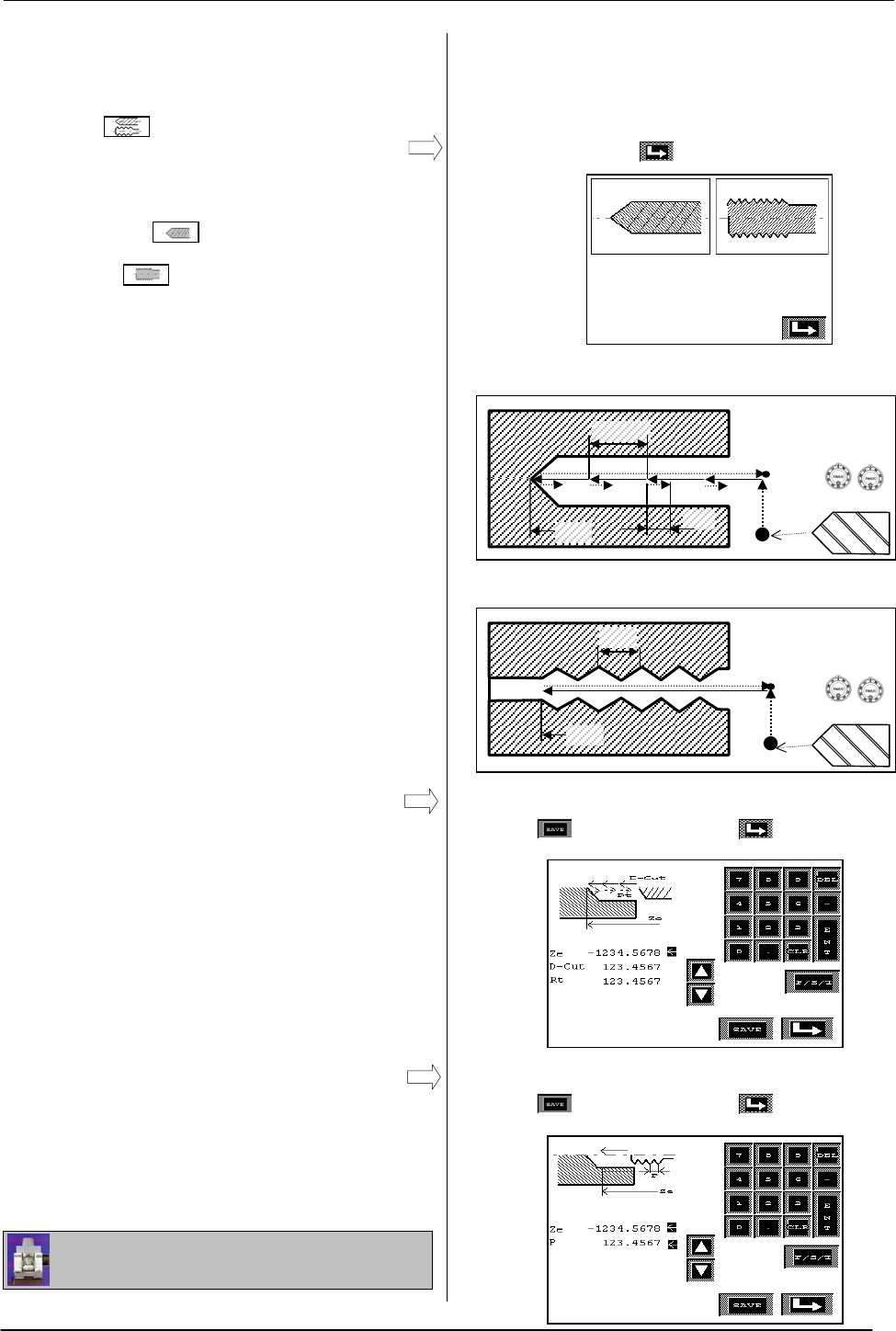

4.7 Drilling and Tapping Cycle
By pressing icon on cycle selection screen,
drilling and tapping cycle selection screen opens.
Following cycles are available.
- Peck Drilling
- Tapping
To machine a drilling or a tapping, position tool by
means of hand wheels or joystick only in Z
direction to cutting start point and press start
button on machine. It is not necessary to position
the tool in X direction as tool is automatically
moved to X=0 coordinate.
Drilling cycle input data
- Ze: End Coordinate Z of Hole
- D-Cut: Depth of Each Cut (Can be omitted)
- Rt: Retract Amount (Can be omitted)
- Cutting Start Point Z: Teach In
- Cutting Start Point X: X=0 Fixed Value
Tapping cycle input data
- Ze: End Coordinate in Z
- P: Pitch of Tap
- Cutting Start Point Z: Teach In
- Cutting Start Point X: X=0 Fixed Value
Tapping and drilling cycle selection screen. To
select cycle and edit geometry data press on
touch areas. Press to return to main screen.
Tool path of drilling cycles.
Tool path of tapping cycles.
Input mask of drilling cycle.
Press to save data, press to return to
main screen without saving data
Input mask of tapping cycle.
Press to save data, press to return to
main screen without saving data
The CNC and the machine tool must be prepared by
the machine tool builder to perform tapping function
X Z
Ze
P
X Z
Ze
D-Cut
Rt
