QuickTurn Electronic Lathe Version 0i_V1_10 Operators manual Page 31

Operators manual
QuickTurn™
GE Fanuc Automation S.A. Page 30 GFKE-0047C-EN

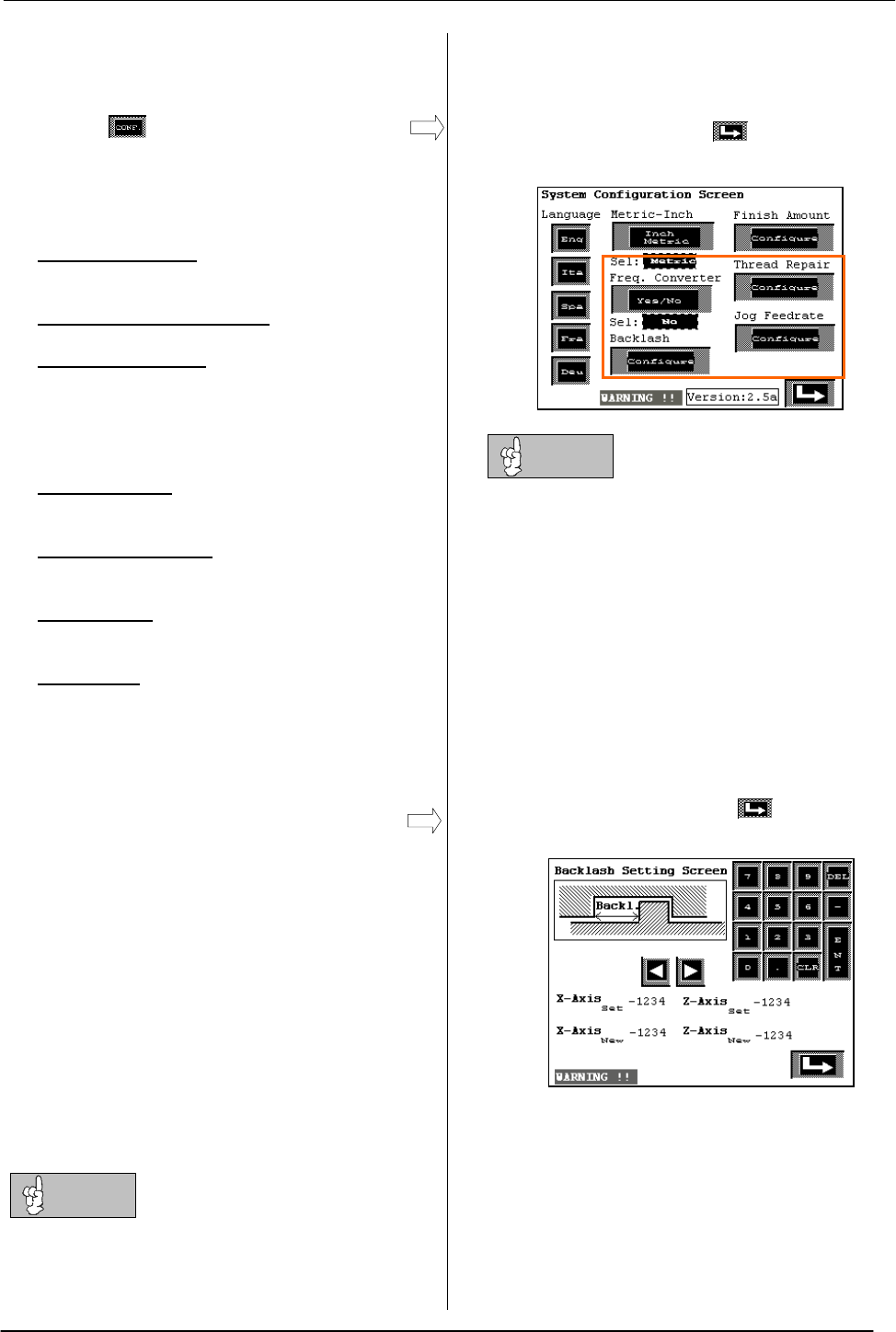

7.2 Configuration Screen
By pressing “Conf.” button on alarm screen,
configuration screen opens.
Following settings can be done on configuration
screen
- Language selection
, for machine alarm
messages.
- Inch-metric system selection
- Frequency converter
, some machine are
equipped with frequency converter, by
activating this function spindle speed setting
screen becomes available. This function can
not be used on all types of machines.
- Backlash setting
, by pressing on this touch
area backlash setting screen opens.
- Finish amount setting
for taper and radius
cutting cycle by pressing on touch area.
- Thread repair,
by pressing on this touch area
thread repair setting screen opens.
- Jog feedrate
, by pressing on this touch area,
jog feedrate setting screen opens.
7.2.1 Backlash Setting Screen.
By pressing “Backlash” button on configuration
screen, backlash setting opens.
Backlash compensation function allows to
compensate lost motion of the machine axis due
to tolerances in the ball screws.
Input unit [0.001 mm] or [0.0001 inch]
To measure backlash move axis in one direction
by means of hand wheels. When axis is stopped,
mount an external measuring device and measure
axis position against a fixed reference. Then move
axis in opposite direction until position on external
measuring device starts changing. Check the lost
motion on screen and input it in data field of
corresponding axis.
Generally it is not necessary to measure
backlash. Measurement can be done to increase
precision. Refer to instructions of machine tool
builder!
Configuration screen. Press to return to
alarm screen.
Configuration screens for Backlash setting,
Thread Repair, Frequency Converter and Jog
Feedrate are protected. This data re set by
machine tool builder and should not be changed.
Backlash setting screen. Press to return to
configuration screen.
NOTE
NOTE
Protected
Previous page
Next page
