4.9 Single Block Cycle
By pressing icon on cycle selection screen,
single block cycle data input screen opens.
The single block cycle allows to specify 10 points.
By adding directly chamfer at end of point it is
possible to program more then 10 contour
elements. This screen can be used for machining
particular geometries not covered by other cycles.
This function is especially suitable for finishing
operations.
Following types of movement are possible
• Linear Interpolation
• Circular CW Interpolation
• Circular CCW Interpolation
Type of movement (Linear, CW and CCW) is
selected by pressing on touch area at the
beginning of each block.
Adding Chamfer
In case of linear block it is possible to add a
chamfer directly at the end of block in “C” data
field. Following rules must be respected:
1. The next block, after a linear block
including a chamfer, must be also linear
and can not
have an other chamfer
2. The last block of a contour can not have a
chamfer
By pressing on icon screen for selecting
direction of radius compensation opens. G40 (no
compensation) is set as default. In case when
precise radius needs to be cut compensation
LEFT or RIGHT needs to be activated.

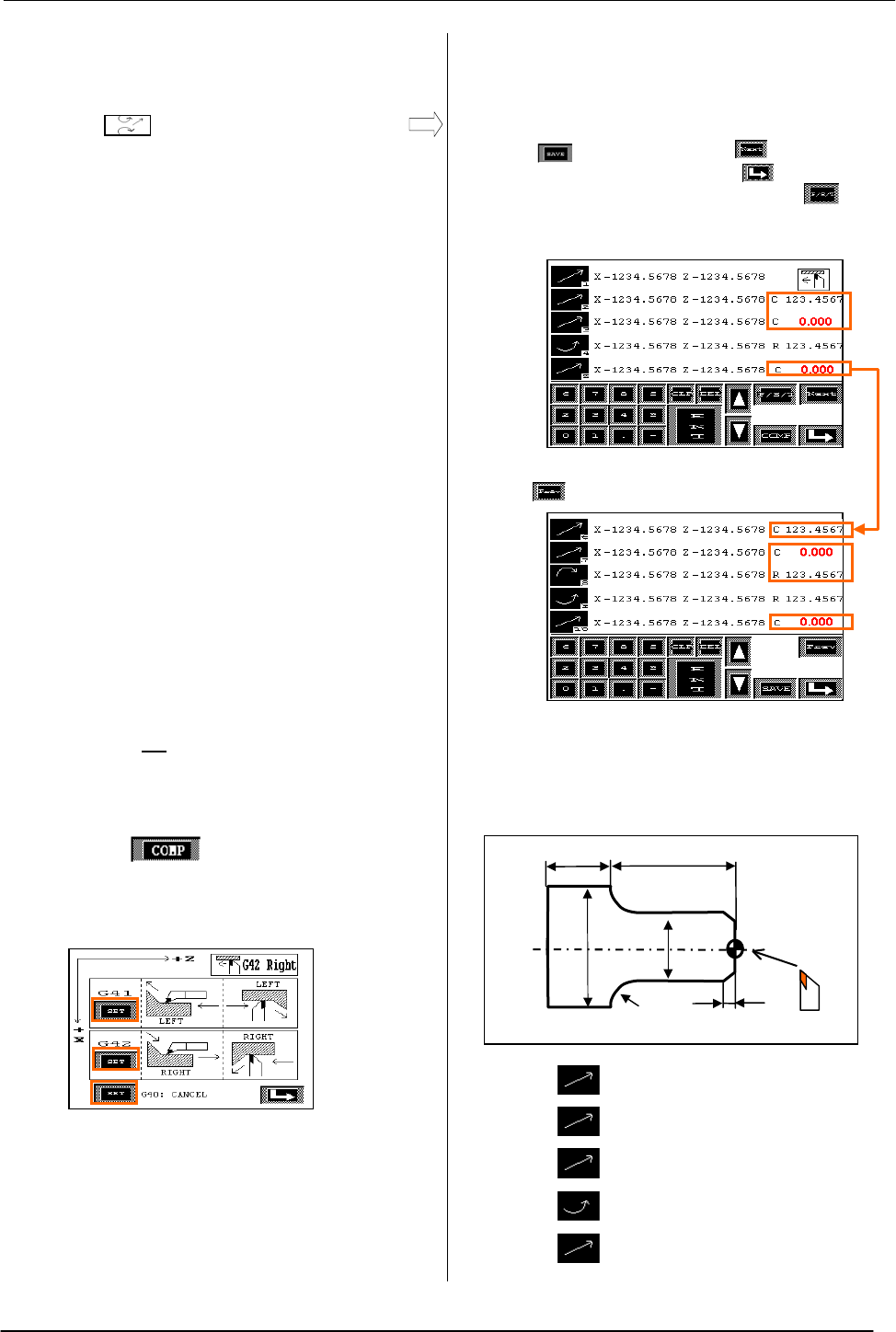

Input mask of single block cycle.
Press to save data, press to open next
screen for blocks 6 to 10, press to return to
main screen without saving data. Press to
add spindle speed, feedrate.and tool data to
cycle.
Press to return to previous screen
Example1
Block1: X0 Z0
Block2: X30 Z0 C5
Block3: X30 Z-15 C0
Block4: X40 Z-20 R5 (CCW!)
Block5: X40 Z-30 C0
2
4
3
1
5
7
9
8
6
10
40
20
∅ 30
10
5
R5
START
Previous page
Next page
