4.8 Facing Cycle
By pressing icon on cycle selection screen,
facing cycle data input screen opens
Facing cycle input data
- Xe: X End Coordinate of Face Cut
- Ze: Z End Coordinate of Face Cut
- D-Cut: Cutting Depth (Can be omitted)
- Cutting Start Point X: Teach In
- Cutting Start Point Z: Teach In
To perform a face cutting, position tool by means
of hand wheels or joystick to a suitable cutting
start point and press start button on machine.
Tool executes one face cut in -X direction until Xe
coordinate, detaches and returns back to start
point.
When a cut depth value is inserted, tool
automatically infeeds in –Z direction and executes
next cut. Cycle is executed in automatic mode.

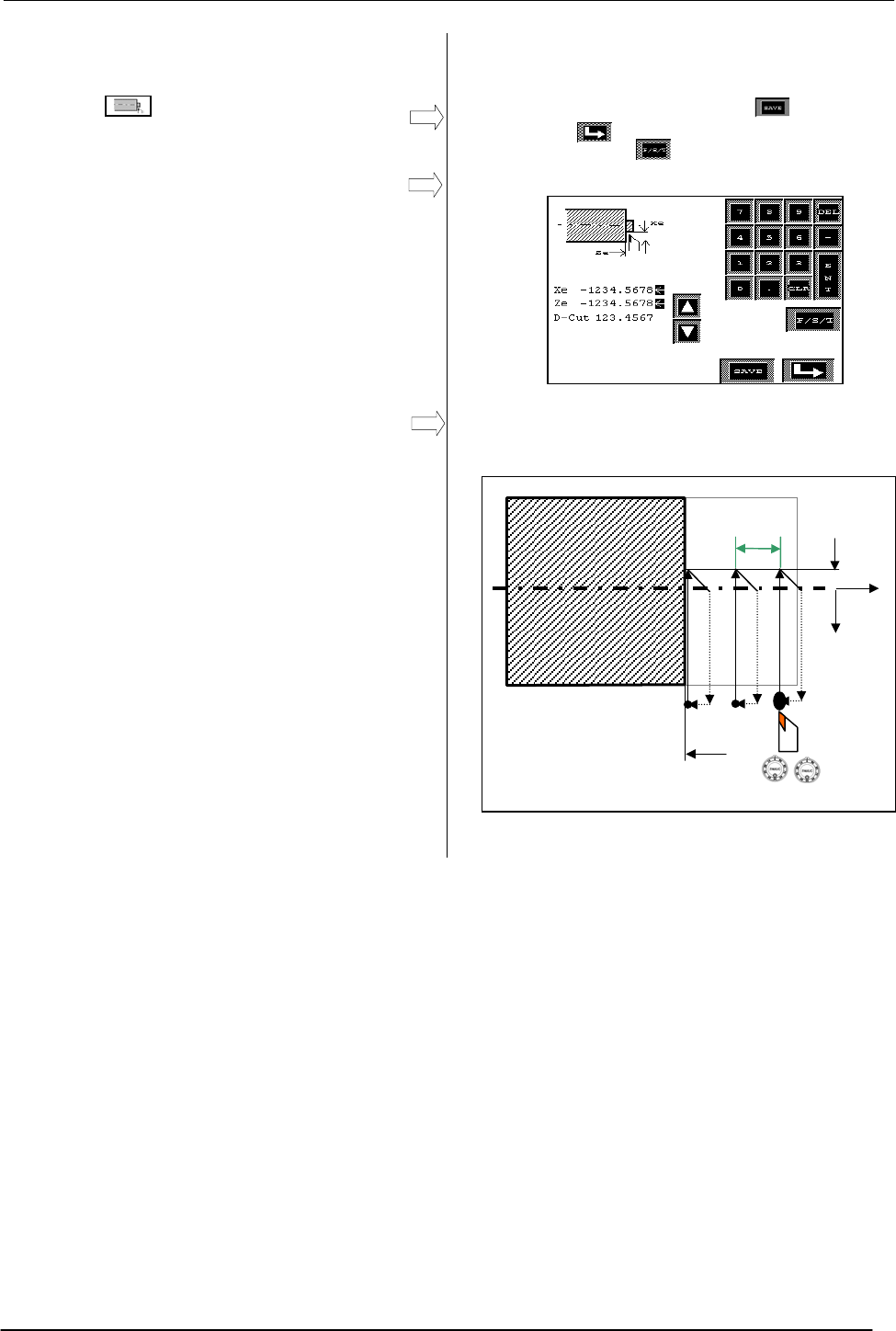

Input mask of facing cycle. Press to save
data, press to return to main screen without
saving data. Press to add spindle speed,
federate and tool data to cycle.
Tool path of facing cycle
Xe
D-Cut
X Z
Ze
X
Z
Previous page
Next page
