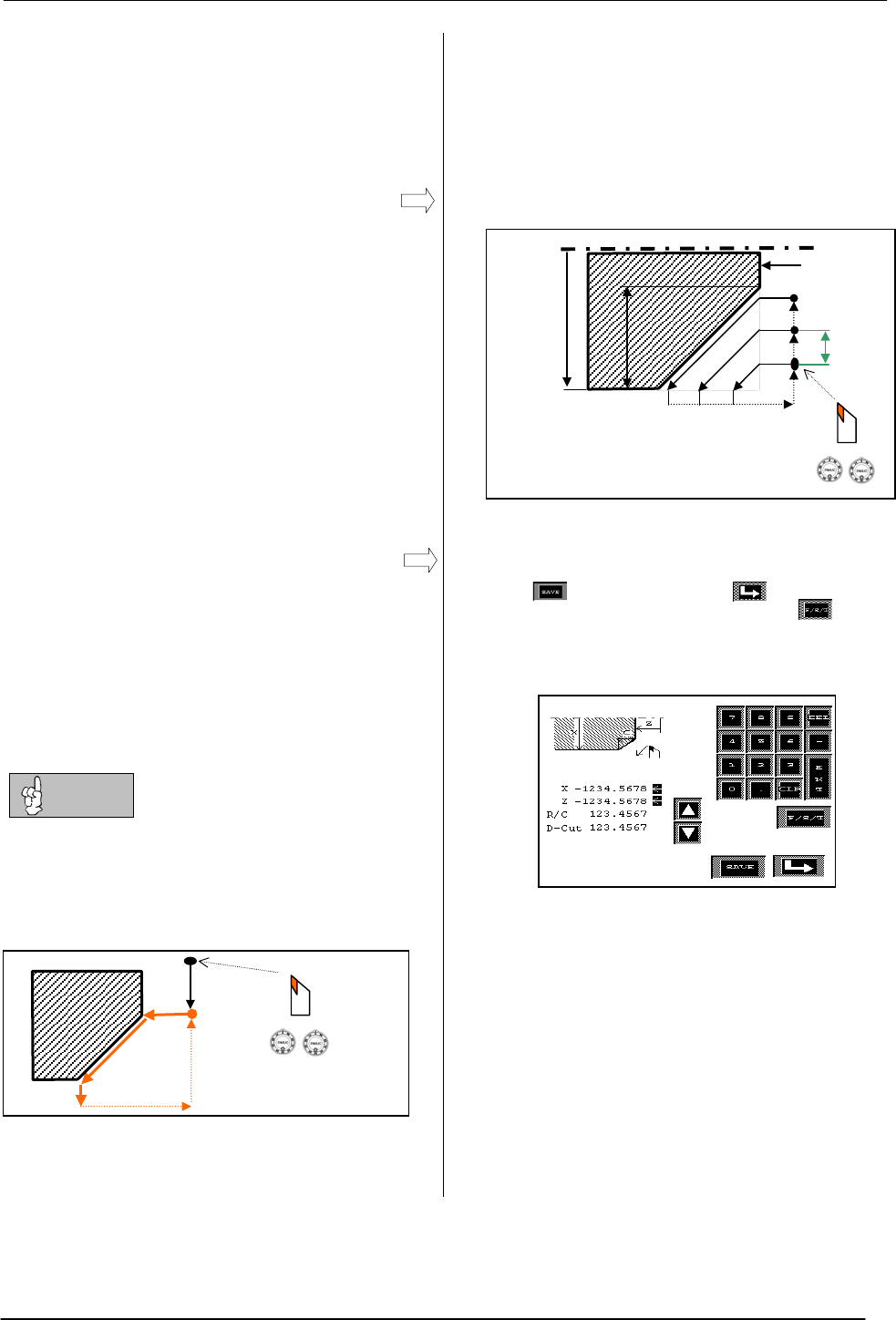

4.2.2 Face Stop Cycles
To machine a part, position tool by means of hand
wheels or joystick in X and Z direction to cutting
start point and press start button on machine.
When using FACE stop cycles, tool performs a
linear approach movement in cutting feed. Cutting
movement is done along shape. A finishing cut is
not performed.
When a cut depth value is inserted, tool
automatically moves to new start point and
executes next cut. In this way an automatic cycle
is performed.
When cut depth is not inserted it is necessary
after each cut to move tool by means of X-hand
wheel to new cutting start point and press again
start button on machine.
FACE stop cycle input data
- X: Stop in X Direction
- Z: Stop in Z Direction
- R/C: Radius/Chamfer
- D-Cut: Cutting Depth (can be omitted)
- Cutting Start Point X: Teach In
- Cutting Start Point Z: Teach In
A radius or a chamfer can be cut in one shot if tool
is positioned by means of hand wheel or joystick
below limit line and START button is pressed. In
such a condition a tool is first moved to minimum
position, then last cut is directly executed.
Tool path of FACE stop cycles.
Example: Input mask of FACE stop cycle.
Press to save data, press to return to
main screen without saving data. Press to
add spindle speed, federate and tool data to
cycle.
X
Stop
Z Stop
D-Cut
R/C
X Z
NOTE:
Positioning
Tool
X Z
+ START
