7.2.4 Default Finish Amount Setting
By pressing “Finish Amount” button on
configuration screen finish amount setting screen
opens.
Default finish amount for following cycles can be
set on this screen
- Taper cycles
- Radius cutting cycles
- Outer and inner grooving
For taper and radius cycles finishing amount in X
and Z is used as radial value. In case of grooving
cycles only X value is used reduced by 50% to
guarantee a smooth surface at the bottom of
groove.
If X and Z finish amount is set to 0, only finishing
is executed (semi finishing not).
After semi finish pass is executed, finish pass is
cut in 1 time. For safety reasons finish amount is
limited to a value of 2 mm.
Even if the CNC is switched to inch mode,
finishing amount always needs to be inserted in
[mm] unit.

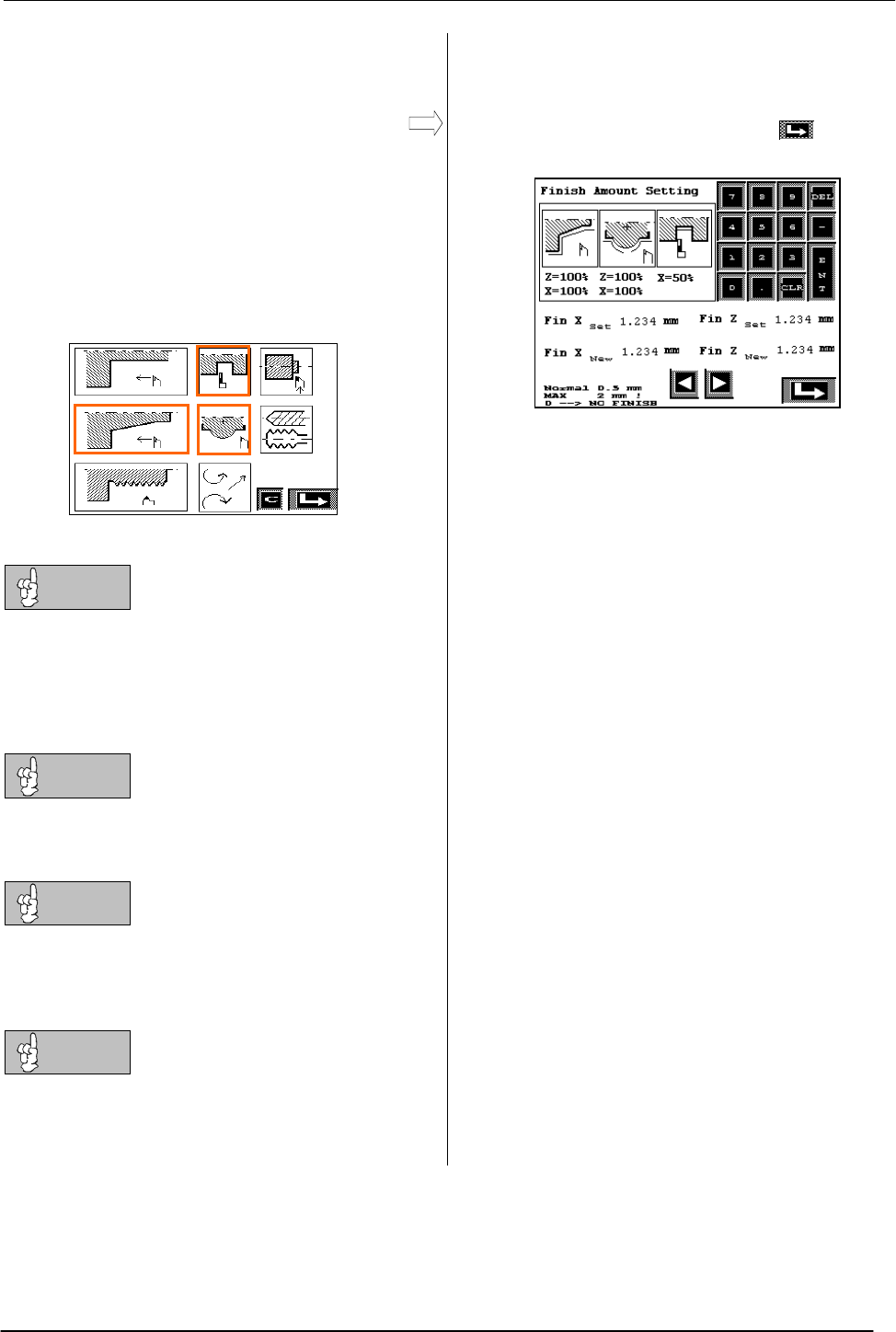

Finish amount setting screen. Press to return
to configuration screen.
NOTE1
NOTE2
NOTE3
NOTE4
