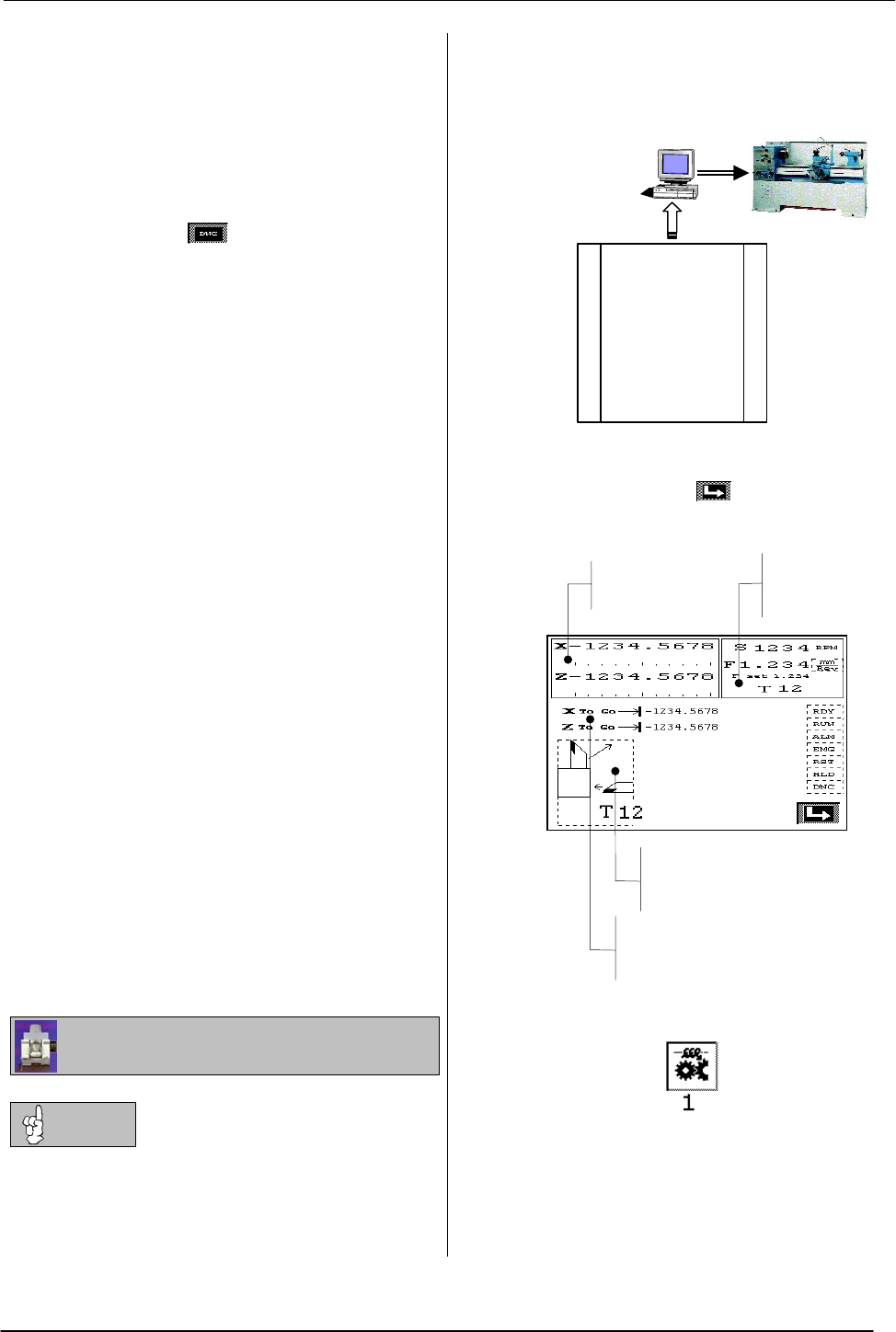

6.2 DNC Mode
DNC mode allows execution of machining
programs in DIN-ISO standard format. This
function is especially suitable for machining
complex workpiece geometry in automatic mode.
By pressing DNC icon on communication
screen, DNC screen opens and CNC is ready for
receiving part program data from external input
device (personal computer). By pressing START
button on machine program is executed and axis
start moving.
To use DNC mode proceed as follows
8. Connect RS-232 port of CNC to PC
9. Select DNC screen on panel
10. Select program file on PC
11. Start data transfer on PC
12. Press START button on machine
For tool change in DNC mode 15 Tools can be
used, by programming a T-Code from T0101 to
T1515. When the CNC receives a T-Code from
remote PC the offset of new tool is activated and
machine stops. On screen the icon for changing
the tool as well as the number of requested tool
appears.
Now the machine tool operator can open the
machine door and exchange the tool. By closing
machine door and pressing again START button
icon for tool changing disappears and machining
continues.
For gear changing 4 gears are supported, by
programming M-Codes M41 to M44. Similar to T-
Codes machine stops as soon as an M-code is
received by the CNC and icon for changing gear
as well as number of requested gear appears.
Now the machine operator can change the gear
on manual gearbox. By pressing start button icon
for gear change disappears and machining
continues.
For detailed specification of G-Codes (DIN-ISO
Codes) supported by this CNC refer to Power
Mate 0 Operators Manual B-63444EN.
Setting up DNC operation
DNC screen. By pressing DNC mode is
switched off and display returns to communication
screen.
Icon for gear change request
The CNC and the machine tool must be prepared by
the machine tool builder to perform DNC function
NOTE
RS-232
M3
G00 X10.5 Z20.01;
X100. Z0.;
G01 X90.;
Z-30.;
G02 X90. Z-40. R5.;
G00 X200.Z100;
T1212;
M43;
…..
Tool Change Icon
Request for Tool 12
Distance To Go of
Current Block
Spindle Speed
Feedrate
Selected Tool
Position
Display
Previous page
Next page
