4.2.1 Standard Stop Cycles
To machine a part, position tool by means of hand
wheels or joystick in X and Z direction to cutting
start point and press start button on machine.
When using STANDARD stop cycles, tool
performs one linear cut to workpiece shape,
detaches and returns back to start point. The last
cut (X coordinate of cutting start point = X Stop) is
executed as a finishing cut to clean the workpiece
surface.
When a cut depth value is inserted, tool
automatically moves to new start point and
executes next cut. In this way an automatic cycle
is performed.
When cut depth is not inserted it is necessary
after each cut to move tool by means of X-hand
wheel to new cutting start point and press again
start button on machine.
STANDARD stop cycle input data
- X: Stop in X Direction
- Z: Stop in Z Direction
- R/C: Radius/Chamfer
- D-Cut: Cutting Depth (can be omitted)
- X0: Diameter for Finish Cut (can
be omitted)
- Cutting Start Point X: Teach In
- Cutting Start Point Z: Teach In
A workpiece shape can be cut in one shot if tool is
positioned by means of hand wheel or joystick
below limit line and START button is pressed. In
such a condition a tool is first moved to minimum
position, then finish cut is directly executed.

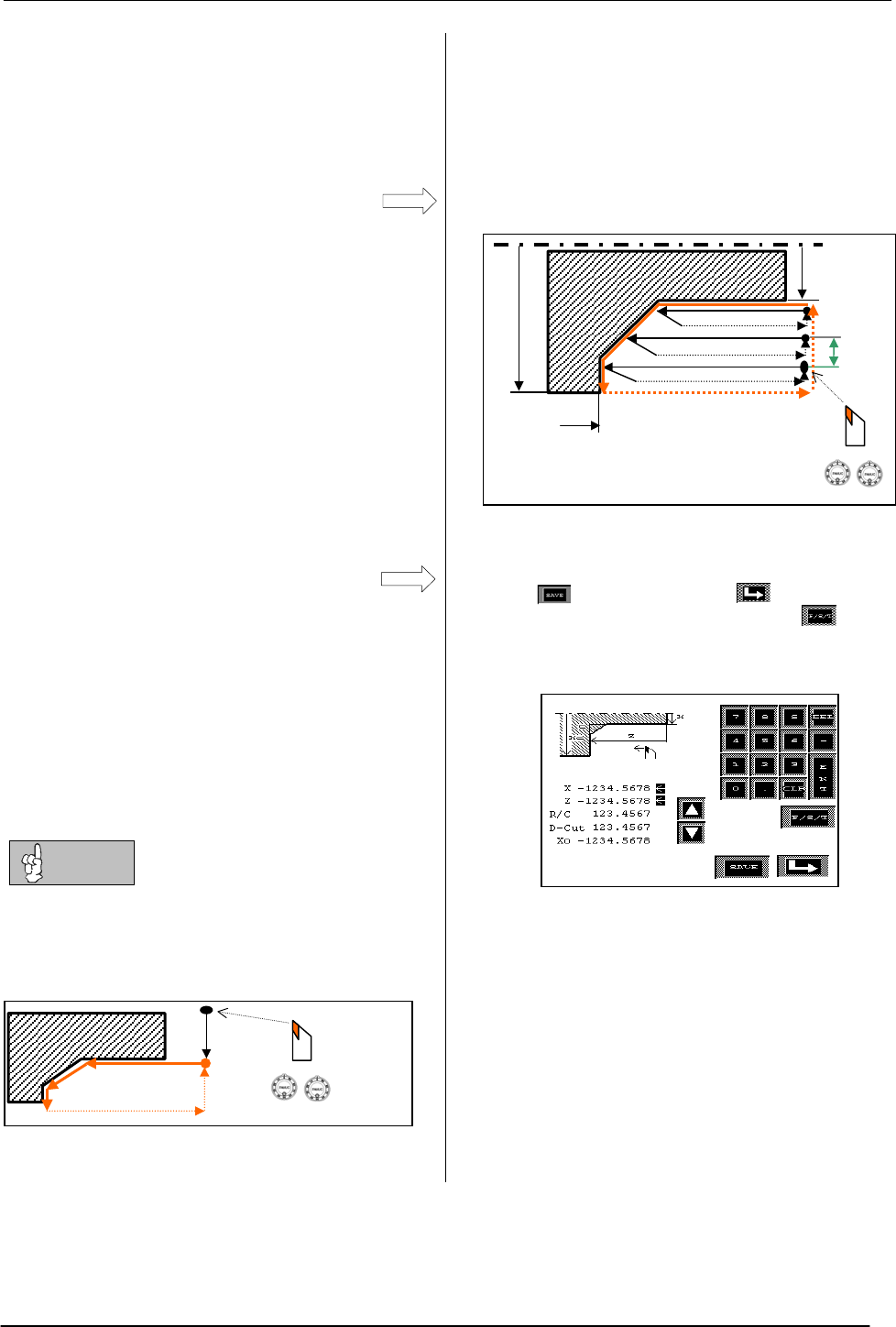

Tool path of STANDARD stop cycles.
Example: Input mask of STANDARD stop cycle.
Press to save data, press to return to
main screen without saving data, press to
add spindle speed, federate and tool data to
cycle.
X
Stop
Z Stop
X0
D-Cut
Finish Cut
X Z
NOTE
Positioning
Tool
X Z
+ START
