QuickTurn Electronic Lathe Version 0i_V1_10 Operators manual Page 8

Operators manual
QuickTurn™
GE Fanuc Automation S.A. Page 7 GFKE-0047C-EN

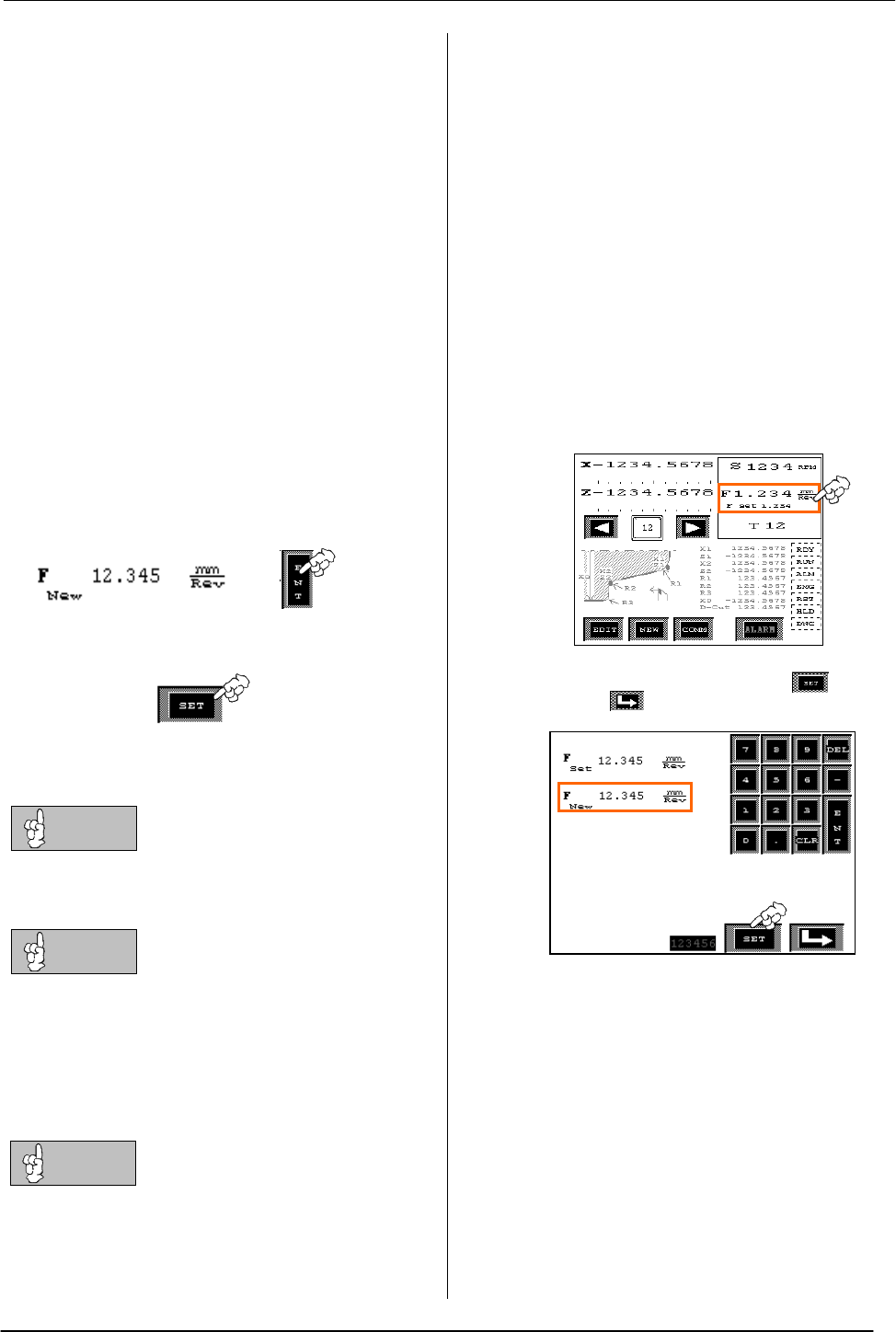

3.2 Feedrate Setting
Before starting a cycle based machining operation
by pressing START button on machine, cutting
feedrate needs to be set (Except DNC mode).
Feedrate set used in following two machining
operations:
- Feedrate for cutting during cycles.
- Feedrate for cutting when moving axis by
means of joystick while spindle is running.
To set cutting feed rate insert new feedrate in data
field F
New
on feedrate setting screen. By pressing
SET touch area feedrate is activated.
By rotary override switch on machine feedrate can
be reduced or increased in a range of 0 –120%.
Input of cutting feedrate
Activation of cutting feedrate
Feedrate is always input in mm/rev (inch/rev)
millimeters (inch) per spindle revolution.
When moving axis by joystick, while spindle is
stopped, axis is moved at normal jog feedrate.
When moving axis by joystick while spindle is
running axis is moving at programmed feed in
mm/rev.
When feedrate is set to zero
- machining cycle can not be started
- axis can not be moved by joystick when spindle
is running
Press on feedrate display of main screen to open
cutting feedrate setting screen.
Cutting feedrate setting screen. Press to set
feedrate, press to return to main screen.
NOTE1
NOTE2
NOTE3
