POWER MATE MODEL D/F Maintenance manual Page 132

Maintenance manual

Page of 420

/ 420

B–62835EN/01

2. HARDWARE

121

1 Check that the power supply is not off.

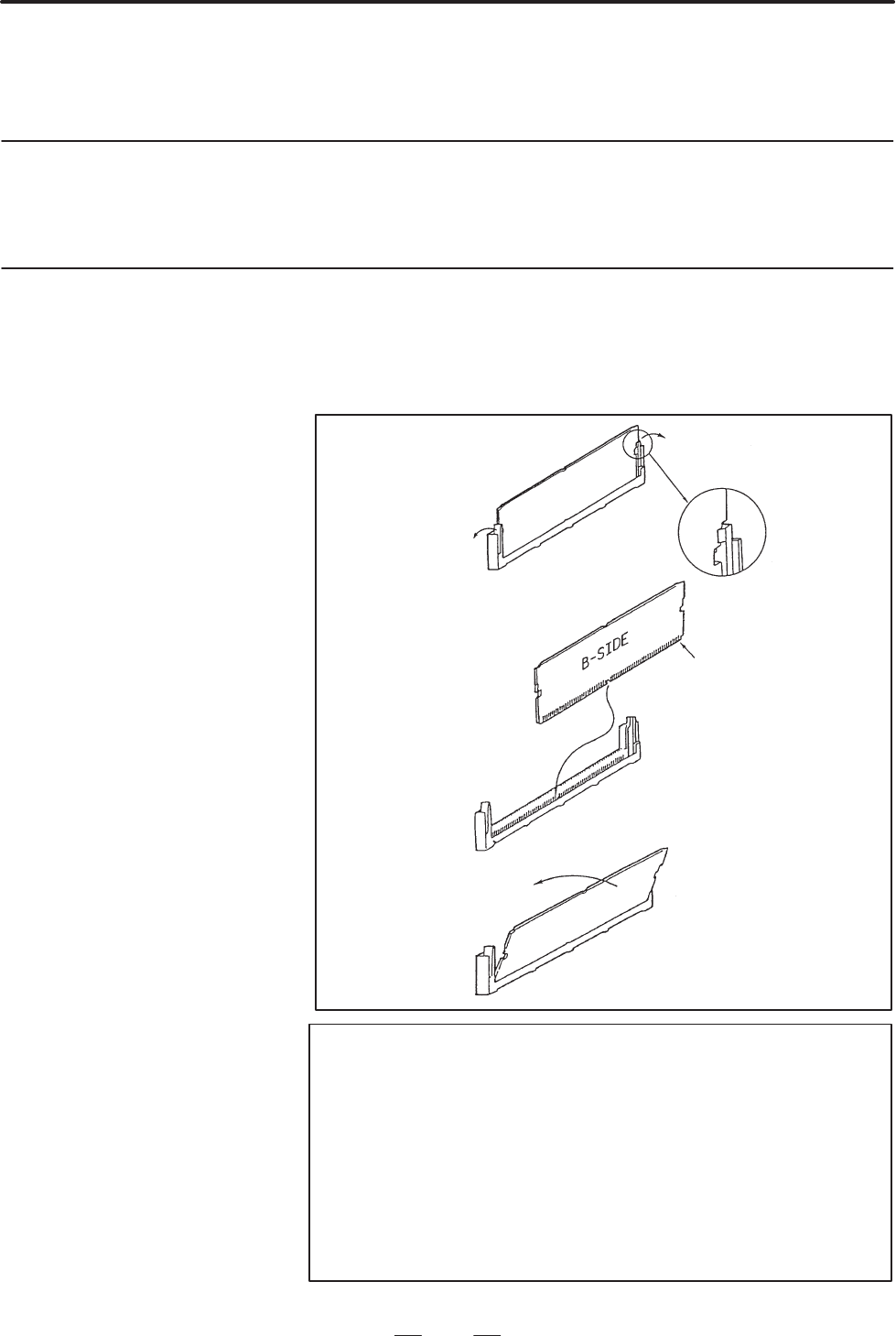

2 Pull the latches of the module socket outwards. (Fig.(a))

3 Pull out the module upward. (Fig.(b))

1 Check that the power supply is off.

2 Insert the new module board diagonally with B–SIDE outward

(Fig.(b))

3 While pushing on the upper edge of the module board, raise it until

it is locked (Fig.(c)).

(a)

No.1 pin

(b)

(c)

CAUTION

1 Replacing the memory module results in the loss of stored

data such as programs, parameters, and ladder. Before

attempting to replace the memory module, therefore, make

a backup copy of the stored data.

2 Make sure that the latches at both ends of the socket are

correctly engaged with the module. If either latch is not

engaged securely, it will not be possible to establish a

satisfactory electrical contact, possibly leading to a

malfunction of the NC unit.

2.7

HOW TO REPLACE

THE MODULES

2.7.1

Removing

2.7.2

Insertion
