POWER MATE MODEL D/F Maintenance manual Page 134

Maintenance manual

Page of 420

/ 420

B–62835EN/01

2. HARDWARE

123

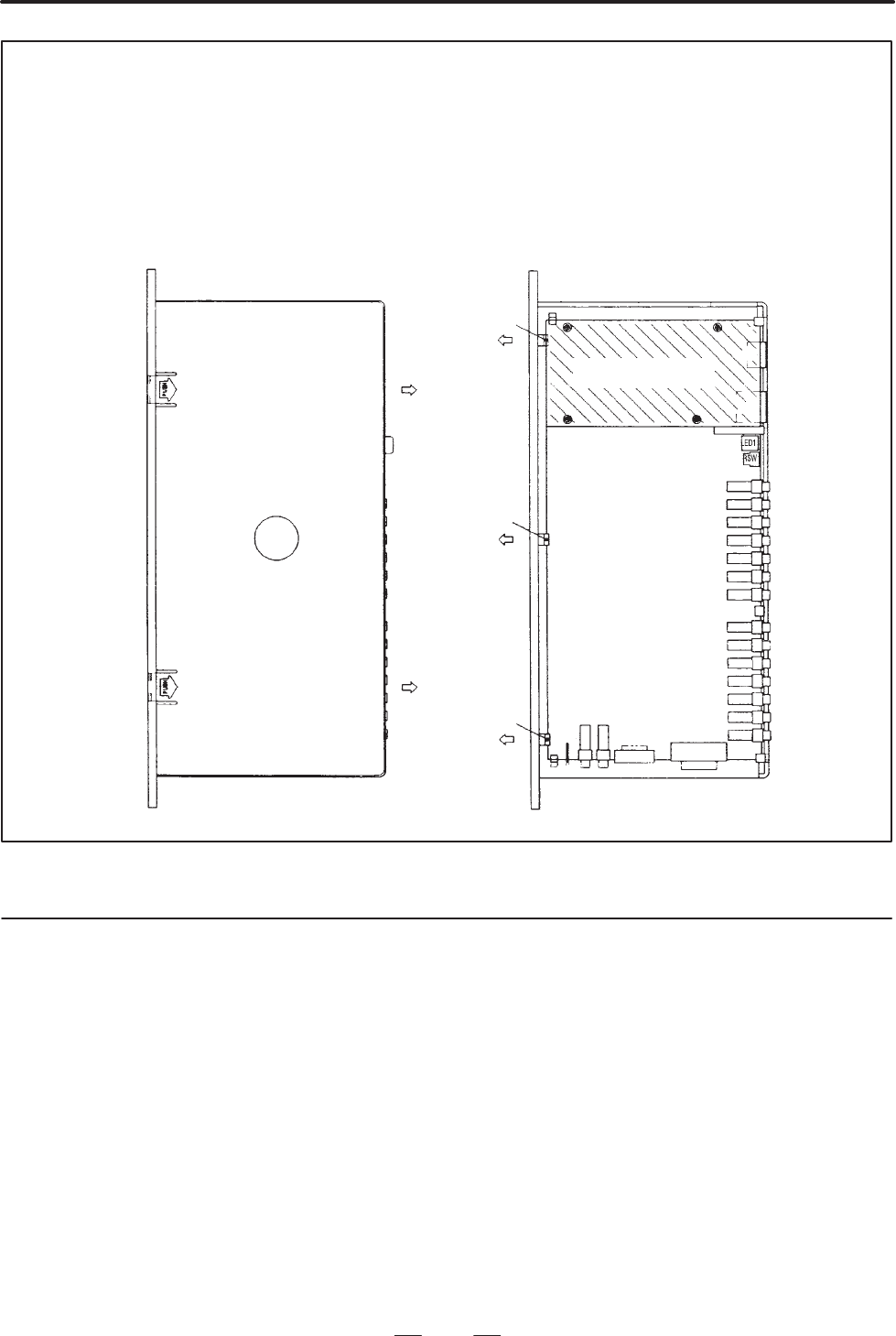

(Left side view)

Fig. 2.8.1 (a)

Base printed circuit

board

Fig. 2.8.1 (b)

How to remove the plastic cover at the left side of the case

D Pull the cover in the direction of arrows as shown

below while holding down two portions marked with

PUSH.

D When mounting the cover, insert the cover in the

direction opposite to that of the arrows while holding

down the two portions marked with PUSH.

How to remove the base printed circuit board

D Remove the 3 V dry cell for backing up the RAM

battery.

D There are three claws which hold the base printed

circuit board. While moving one at a time to the left (in

the direction of arrows shown below) in the order of

(1), (2), and (3), pull the left side of the board to release

the hold. When releasing the claws, be careful not to

bend the pins of components on modules adjacent to

the base printed–circuit board.

D Move the board to the left to remove it from the case.

Power supply printed

circuit board

CP1

(1)

(2)

(3)

1 Make sure that the power supply unit is turned off.

2 As in 2.8.1 above, remove the base PC board.

3 Remove the screws from the base PC board or sub printed board that

are securing the power PC board, and replace the power PC board.

4 Put the base PC board in the case, and return it to the original position.

5 Reconnect the cables to their original positions.

2.8.2

The Power Supply

Printed Circuit Boards

and Sub Printed Board
