POWER MATE MODEL D/F Maintenance manual Page 76

Maintenance manual

Page of 420

/ 420

B–62835EN/01

2. HARDWARE

This device–to–device connection method also applies when the separate

MDI unit is used in combination with the separate CRT unit, separate PDP

unit, or separate LCD unit. The Power Mate–F is not provided with a

CRT/MDI interface.

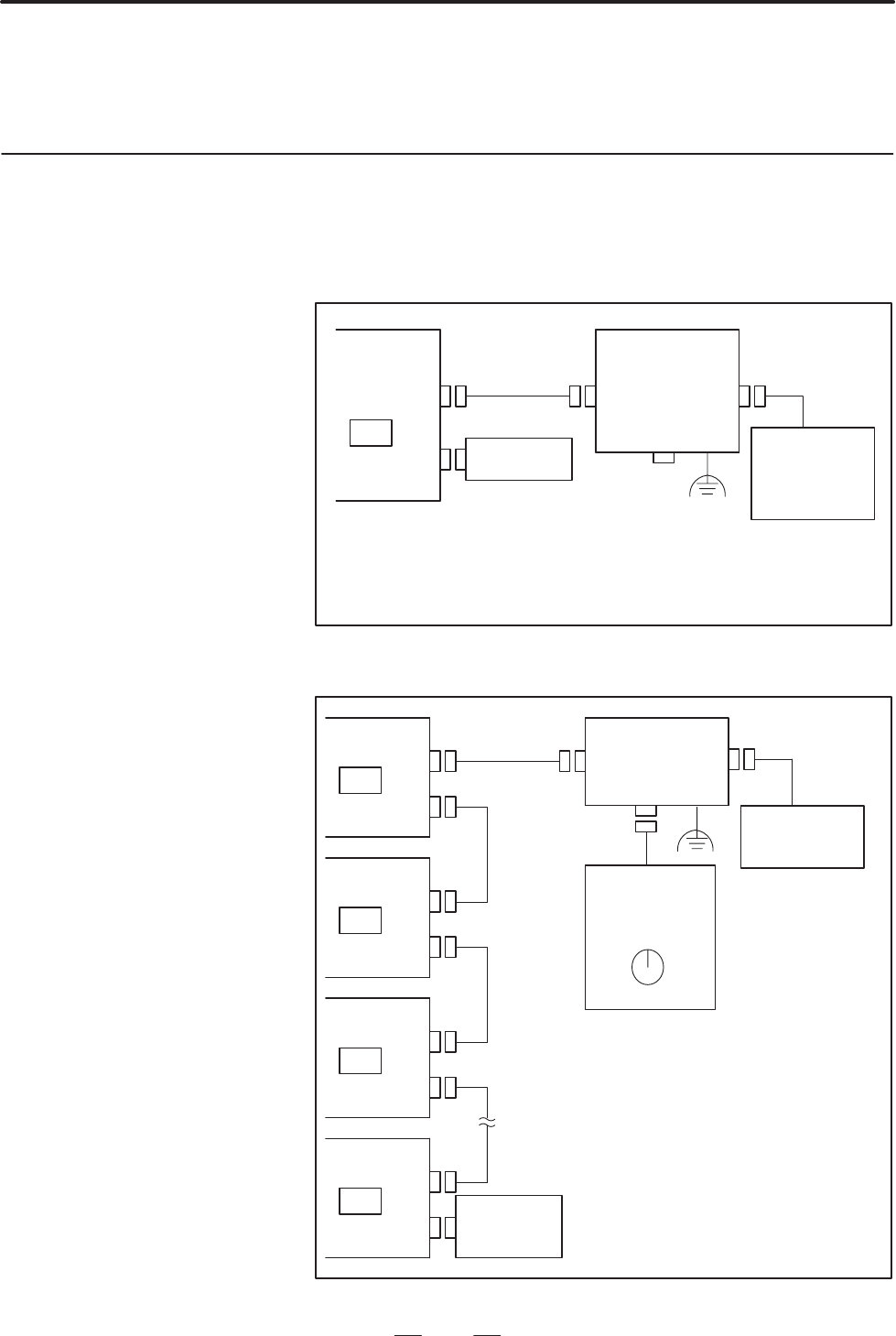

(1) When there is only one unit of Power Mate–D

Power Mate

JD14 JD13

JD15

(Note1)

J45

CRT/MDI unit

CPD1

J48

Terminal unit

(Note2)

JN1 FG DC+24V

power source

"10%1.0A

(Stabilized power

source)

(Note1) Device number 0 is set using the rotary switch.

Refer to the section of 2.4.1 Rotary switch and constract of control

unit for place of rotary switch.

(Note2) Mount a terminal unit (A02B–0124–D001)

(2) When multiple power Mates share one CRT/MDI Max.16 Power

Mate–D units

Power Mate–D

JD14 JD13

JD15

(Note1)

J45

CRT/MDI unit

CPD1

J48

JN1 FG

+24V DC power

source "10%,

1.0A

(Note 1) Device numbers are set using the

rotary switch RSW. If the same device

number is used for two or more units,

the information is not correctly shown

on the CRT/DPL unit.

(Note 2) Attach a terminal unit

(A02B–0124–D001) to the last Power

Mate.

(Note 3) For connection to use simaltaneous

block start refer to connection manual.

Terminal unit

Power Mate–D

JD14

JD15

(Note1)

J46

Power Mate–D

JD14

JD15

(Note1)

J46

Power Mate–D

JD14

JD15

(Note1)

J46

(Note2)

Machine operator’s

panel selection

switch

#1...

#0 #2

Common

J47

2.3

INTER–MACHINE

CONNECTION

2.3.1

CRT/MDI Unit

D Connection of Power

Mate–D
