POWER MATE MODEL D/F Maintenance manual Page 300

Maintenance manual

Page of 420

/ 420

B–62835EN/01

8. TROUBLESHOOTING

289

Procedure for replacing batteries for absolute pulse coder (β series servo amplifier)

Prepare lithium battery A02B–0168–K111(*) in advance.

(*) FANUC specification: A98L–0031–0011

1 Turn machine (servo amplifier) power ON.

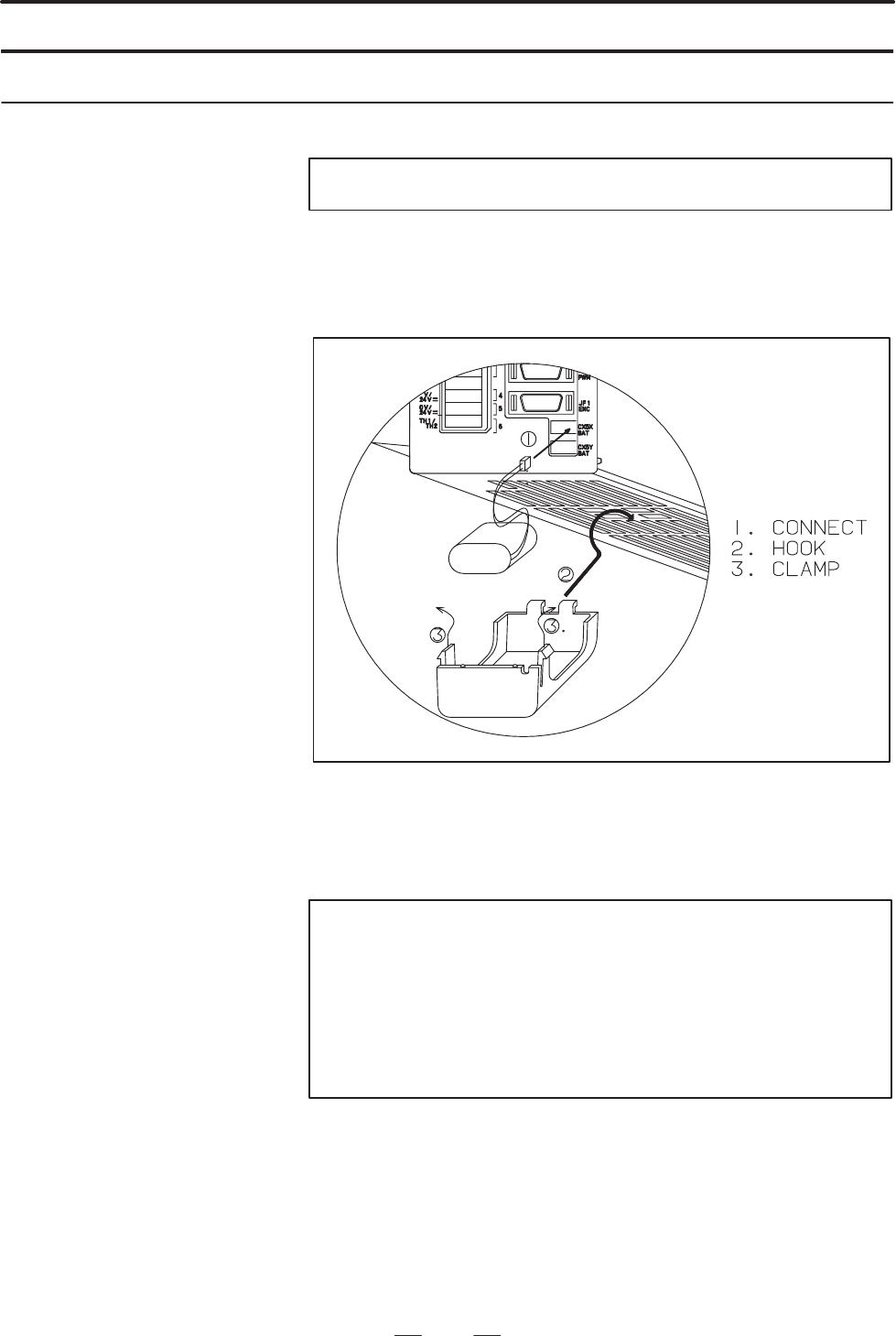

2 Remove the battery case from under the β series servo amplifier

module by holding the case at both sides and pulling downwards.

Battery cover

A230–0533–X003

6V litium battery for

absolute pulse coder

A98L–0031–0011

3 Remove the connector the battery.

4 Replace the battery, and connect the connector.

5 Attach the battery case.

6 Turn machine (servo amplifier) power OFF.

CAUTION

1 Replace the batteries for absolute pulse coder when

machine (servo amplifier) power is ON.

Replacing the batteries with power OFF causes the

absolute position stored in memory to be lost.

2 If your machine is equipped with a separate battery case,

follow the instructions in 2.6.4

Procedure
