B–62835EN/01

2. HARDWARE

133

This section describes the replacement of the DPL/MDI switcher fuses of

the Power Mate. The table below lists the drawing number of the

DPL/MDI switcher.

 2.10.5(a) Drawing number of DPL/MDI switcher

Name

Drawing number

DPL/MDI switcher A16B-2600-0080

The DPL/MDI switcher contains a +24 V power input fuse, F2, and +5

V power output fuse, F1. If the +5 V pilot lamp (green LED) does not light

when +24 V power is supplied to the DPL/MDI switcher, fuse F1 or F2

may have blown. In such a case, remove the fuses from their sockets,

check their continuity using a multimeter (or visually check whether they

have blown). If a fuse has blown, investigate the cause, take appropriate

action, then replace the fuse. The capacity, part number, and location of

the fuses are as follows:

 2.10.5(b) Capacity and part number of the DPL/MDI switcher fuses

Name

Capacity Ordering specification

F1 2.0A A60L-0001-0175#2.0A

F2 2.0A A60L-0001-0175#2.0A

Fuse F2 (2 A)

Fuse F1 (2 A)

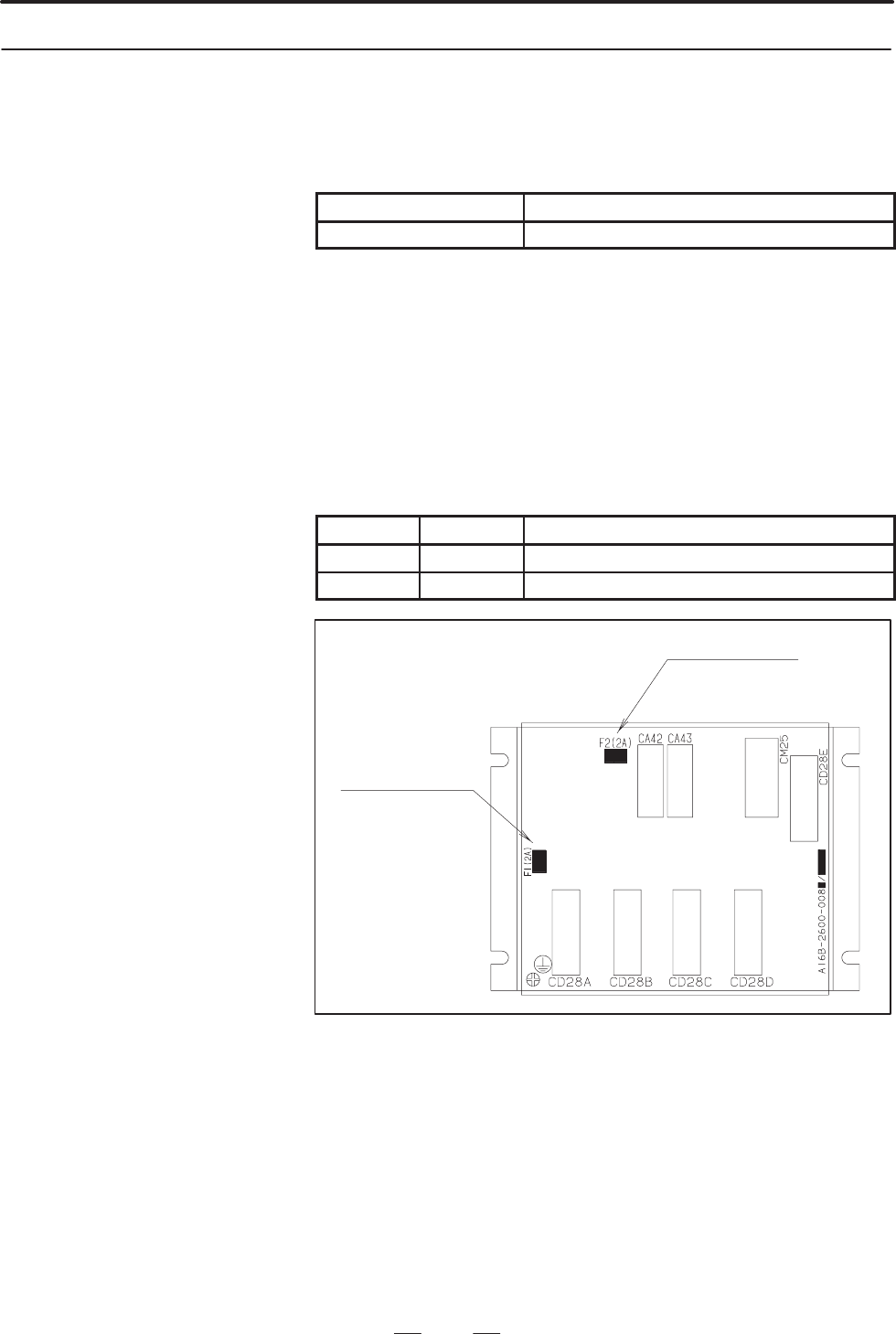

Fig.2.10.5 Location of DPL/MDI switcher fuses

2.10.5

Replacing the DPL/MDI

Switcher Fuses
