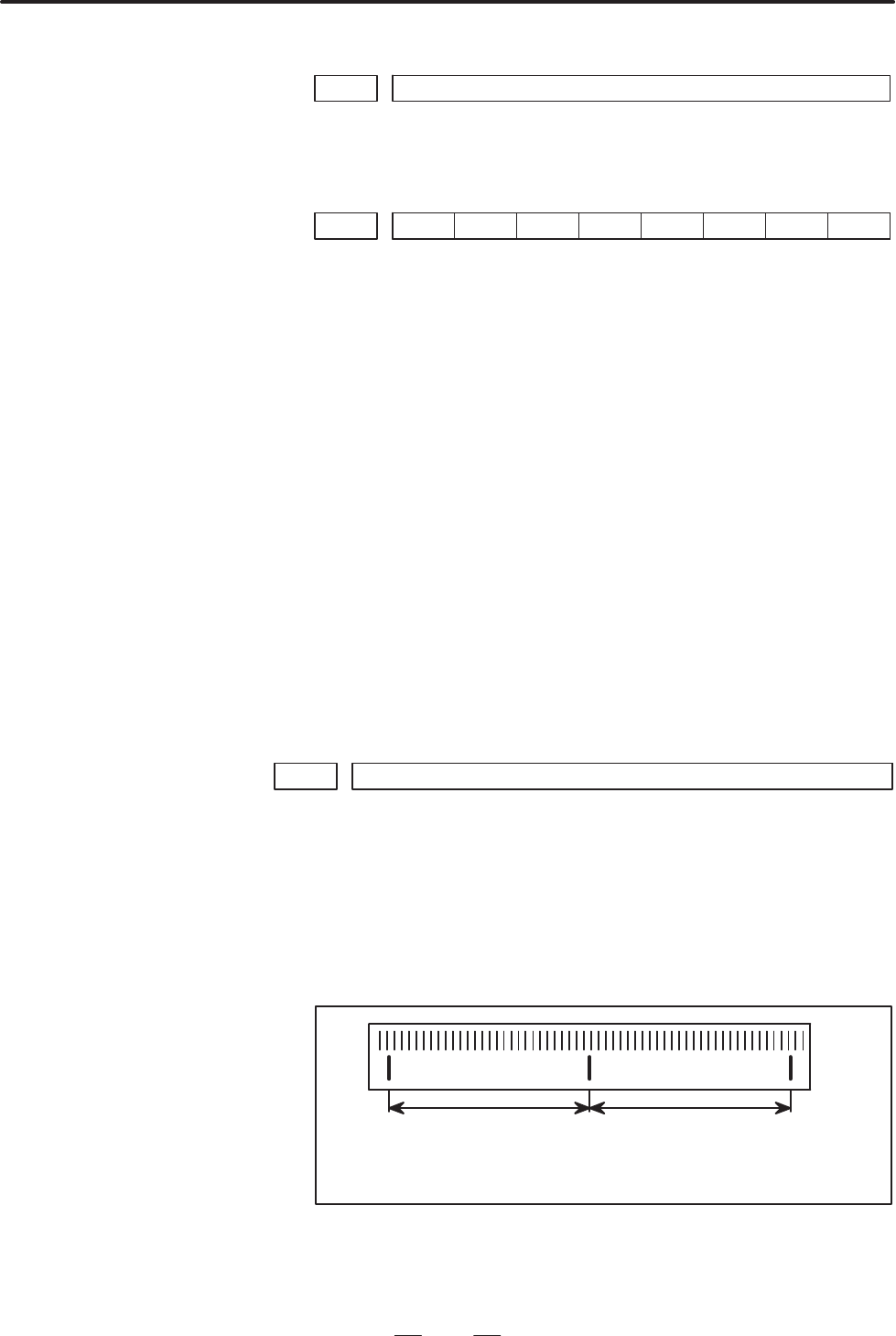

5. DIGITAL SERVO

B–62835EN/01

220

1850 Grid shift amount per axis [P]PRM

* This parameter is set using a value ten times the unit of

detection, if the input system uses units of 0.0001 mm.

#7 #6 #5 #4 #3 #2 #1 #0

1815 APC APZ OPTPRM

#5(APC) 0 : Position detector is other than absolute pulse coder.

1 : Position detector is absolute pulse coder.

#4(APZ) Zero position of absolute pulse coder is:

0 : Not established

1 : Established

(Turns to 1 after establishment)

To manually change the value of the APZ bit from 0 to

1 without first returning to the reference position when

using serial pulse coder α , follow this procedure: Back

up the data with the battery and give the motor one or

more turns.

Turn the power off then on again, then change the APZ

bit setting from 0 to 1.

#1(OPT) 0 : The pulse coder built into the motor is used for position

detection.

1 : A separate pulse coder or linear scale is used for

position detection.

1821 Reference counter capacity per axis [P]

PRM

Normally, the number of feedback pulses per motor revolution is set to

the reference counter capacity.

When plural reference marks are on a linear scale, a quotient of the

distance between the reference marks divided by an interfer may be used

as a reference counter capacity:

Example)

(1µ m)

300mm ⇒ reference counter 30000

20000

15000

10000 etc

D Separate Type Pulse

Coder or Linear Scale is

Used
