3. INPUT AND OUTPUT OF DATA

B–62835EN/01

148

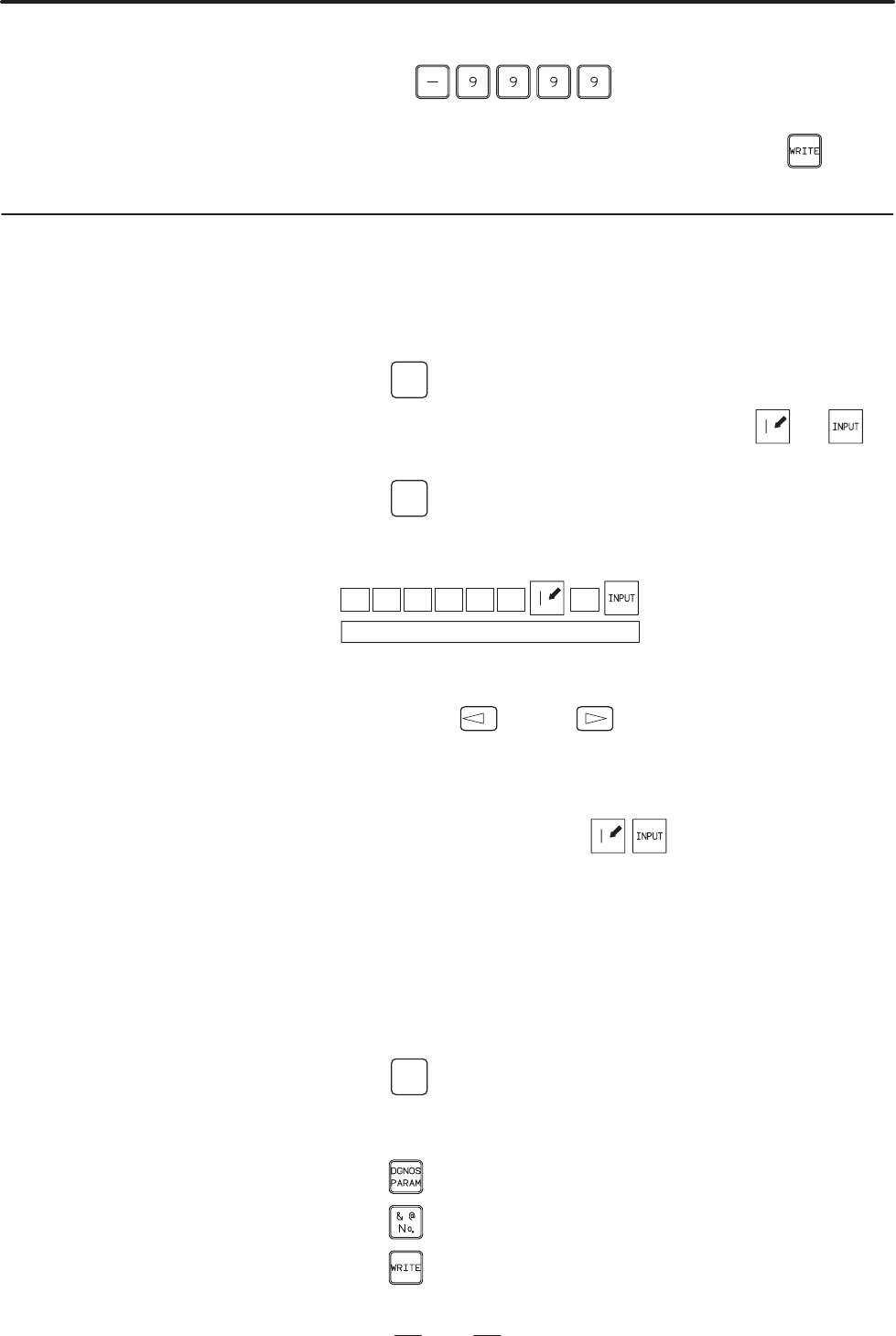

5. Key in a desired program number.

Entering

causes all programs in memory to

be output.

6. The number of input program is punched with pushing

1. Select EDIT mode.

2. Press

OFFSET

SETTING

key then soft key [SETTING] to select a setting screen.

3. Set the cursor to PARAMETER WRITE and input

and . At

this time, alarm 100 will be generated.

4. Press

SYSTEM

key and soft key [PMC].

5. Press soft key [PMCPRM] and soft key [KEEPRL]

6. Set the cursor to K17 and set the first bit to 1.

× × ×× × × ×

Where, mark x is a former value

Thus, data input/output screen

has been selected.

7. Press soft key

then key .

8. Press soft key [I/O] and set the parameters on I/O.

Item selection cursor moves to the following item after data of an item

is set.

9. In CHANNEL NO item, input

to select I/O channel 1.

10.In DEVICE item, press soft key [FDCAS] to select the floppy cassette.

It is also [FDCAS] for Handy File.

11.In KIND DATA item, press soft key [PARAM].

12.In FUNCTION item, press soft key [WRITE].

13.Press soft key [EXEC]. Then ladder programs are started to be output.

14.After the ladder programs have been output, set PARAMETER

WRITE to 0.

15.Press

RESET

to release alarm 100.

1. Select EDIT mode.

2. Press

key several time to select diagnosis screen.

3. Press

key in the diagnosis screen then set file number.

4. Press

, then ladder programs are started to be output.

3.2.7

Outputting Ladder

Programs

D Procedure (CRT/MDI)

D Procedure (DPL/MDI)
