B–62835EN/01

2. HARDWARE

Group ActionSignal line

Cable between the motion controller

and servo amplifier

Bind the cables in group C separate-

ly from group A, or cover group C

with an electromagnetic shield

Cable for position and velocity feed-

back

with

electromagnetic

shield

Separate group C as far from Group

Bas

ossible.

Cable between the motion controller

and spindle amplifier

ossible

Be sure to perform shield proces-

sing.

Cable for position coder

Cable for manual pulse generator

Cable for battery

Cable between the motion controller

and the CRT/MDI

RS–232–C interface cable

Other cables to be covered with the

shield

NOTE

1 The groups must be 100mm or more apart from one another

when binding the cables in each group.

2 The electromagnetic shield refers to shielding between

groups with grounded steel plates.

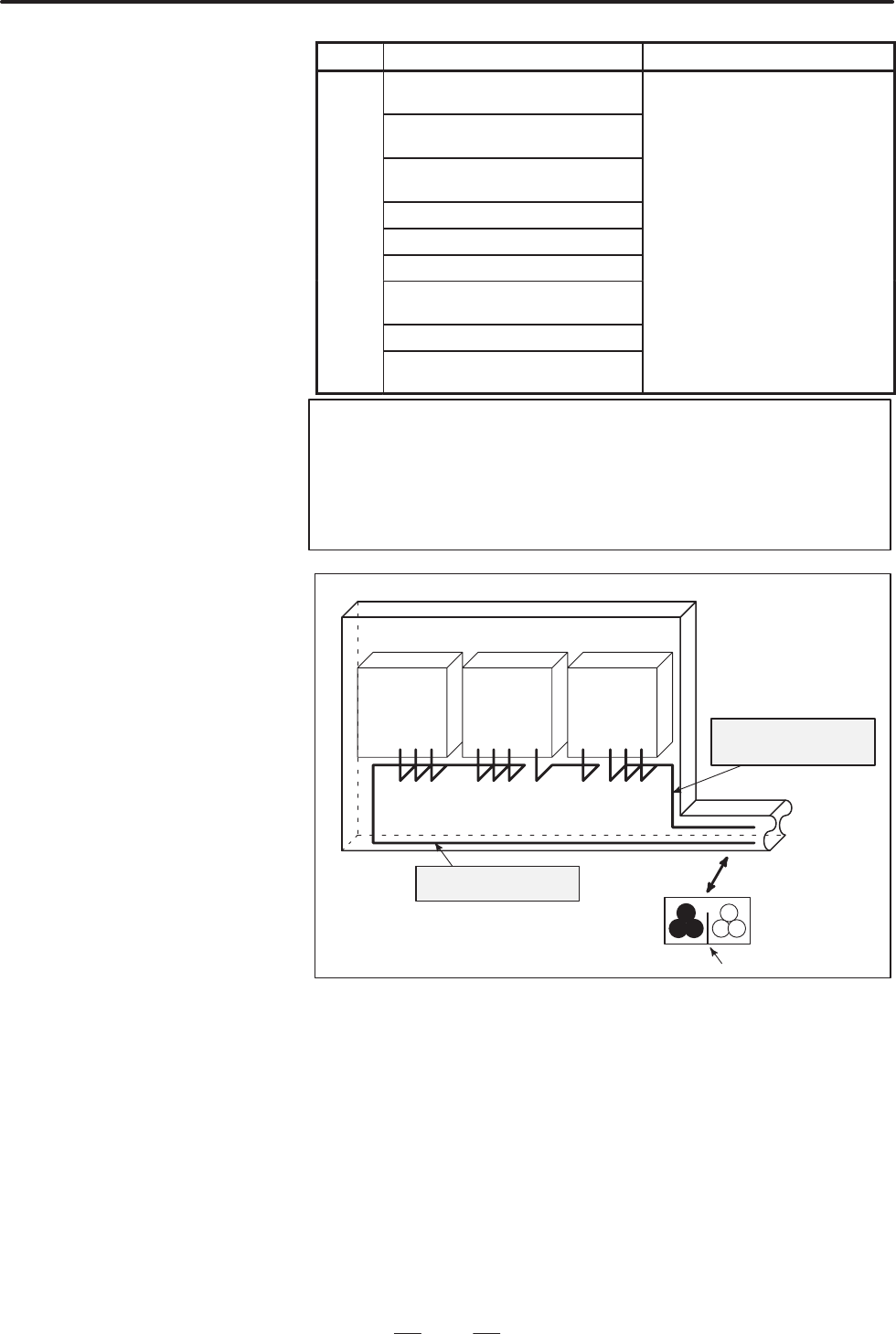

Cable of group B, C

Cable of group A

Cabinet

Servo

amp.

Spindle

amp.

Control

unit

Duct

To operator’s

panel,

motor, etc.

Section

Group A Group B, C

Cover

The following ground systems are provided for the CNC machine tool:

D Signal ground system (SG)

The signal ground (SG) supplies the reference voltage (0V) of the

electrical signal system.

D Frame ground system (FG)

The frame ground system (FG) is used for safety, and suppressing

external and internal noises. In the frame ground system, the frames,

cases of the units, panels, and shields for the interface cables between

the units are connected.

D System ground system

The system ground system is used to connect the frame ground

systems connected between devices or units with the ground.

D Ground
