B–62835EN/01

2. HARDWARE

129

WARNING

Before replacing a blown fuse, it is necessary to remove the

cause of the blown fuse. For this reason, only the personnel

who have a working knowledge of maintenance and safety

are allowed to carry out this work. When replacing a fuse

with the cabinet open, be careful not to touch the

high–voltage circuit section (marked and shielded with

a shock hazard prevention cover). If you touch the

high–voltage circuit section when it is uncovered, you will

get an electric shock.

This section describes the replacement of the Power Mate controller fuse.

The controller contains a +24 V power input fuse, F1. If LED EN does not light

when +24 V power is supplied, fuse F1 may have blown. In such a case, remove

the fuse from its socket, then check its continuity using a multimeter (or visually

check whether it has blown). If the fuse has blown, investigate the cause, take

appropriate action, then replace the fuse. The capacity, part number, and

location of the fuse are as follows:

 2.10.1 Capacity and part number of Power Mate controller fuse

Name

Capacity Part number

F1 5.0A A60L-0001-0046#5.0R or

A60L-0001-0046#5.0

Fuse F1

Power supply

connector

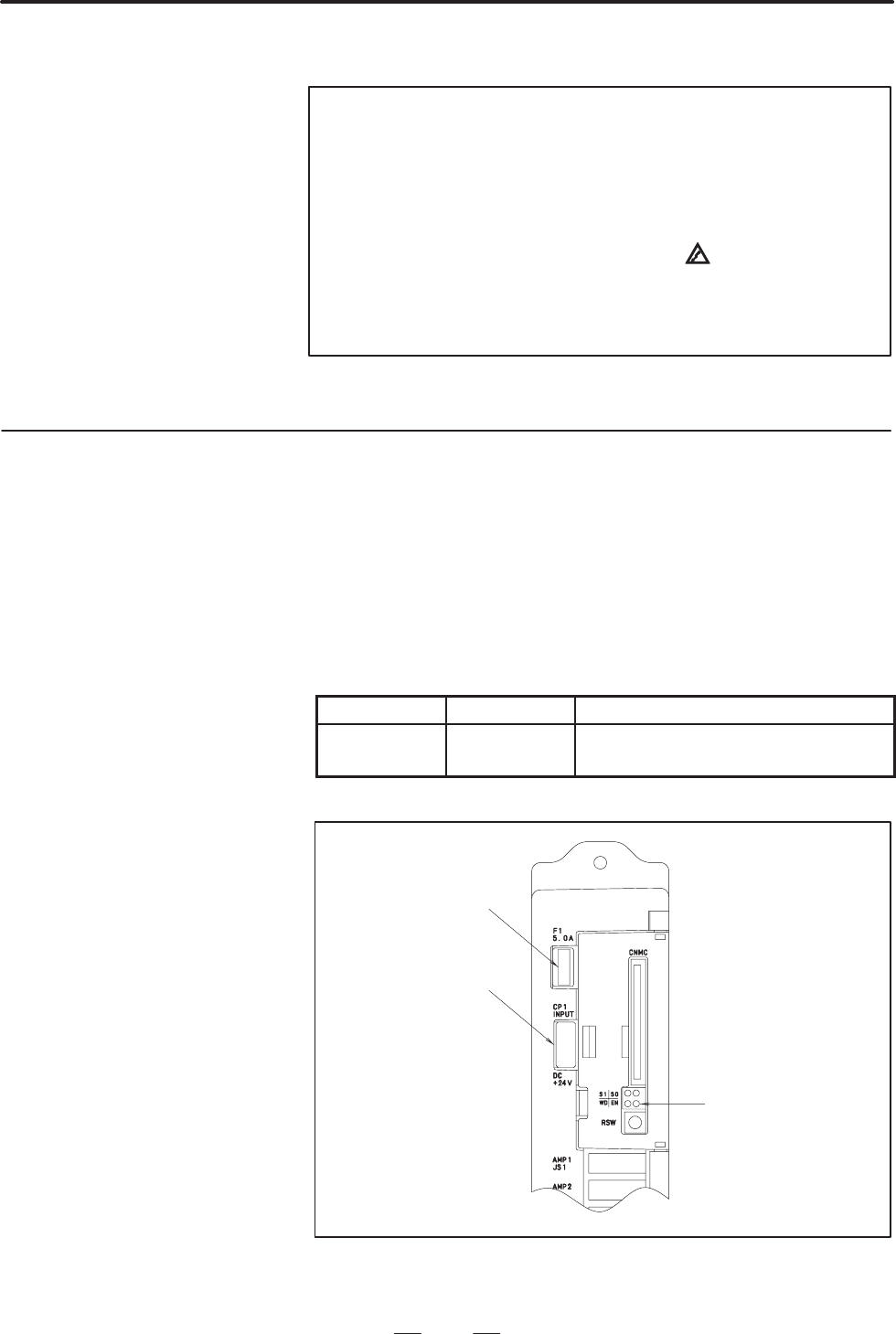

Fig.2.10.1 Location of Power Mate controller fuse

2.10

REPLACING THE

FUSE

2.10.1

The Power Mate

Controller Fuse
