4. INTERFACE BETWEEN NC AND PMC

B–62835EN/01

178

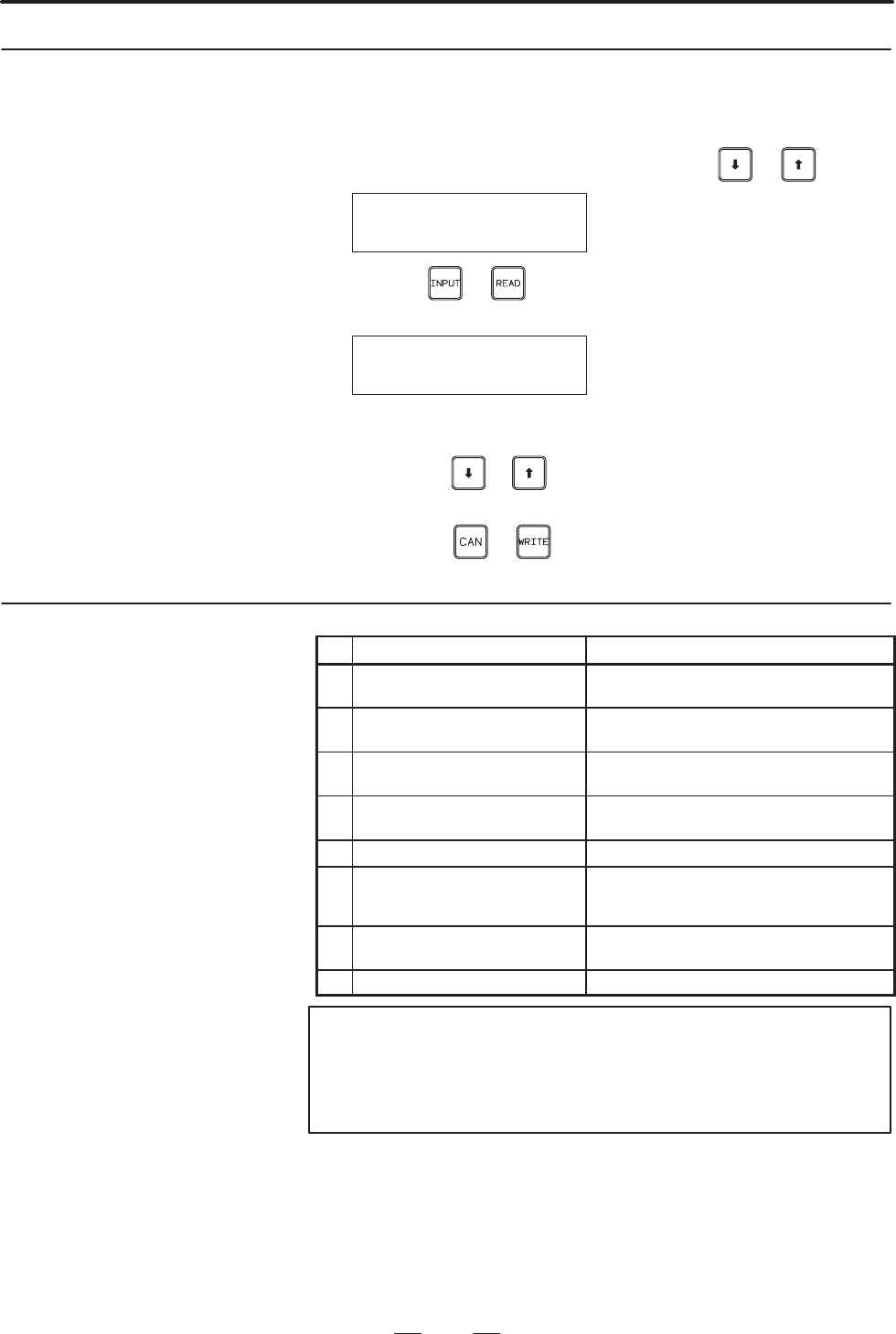

Selecting RUN/STOP on the PMC programmer menu displays the

sequence program start/stop screen.

1 Display the PMC programmer menu.

2 Display the RUN/STOP item by pressing the or key.

PMC PRG MENU 1/3

>RUN/STOP

3 Press the or key. The sequence program start/stop screen

appears.

LADDER RUN/STOP

MONITOR [RUN]

4 The current execution state of the sequence program is displayed on

the screen.

Pressing the

or key switches the state between running and

stopped.

5 Pressing the

or key displays the PMC programmer menu.

Displayed error message Error description (operator action)

1 COIL NOTHING No coil is specified for a functional instruction

using a coil.

2 COM FUNCTION MISSING The use of the COM (SUB9) functional

instruction is incorrect.

3 END FUNCTION MISSING The END1 or END2 functional instruction is

missing (or ERROR NET).

4 JUMP FUNCTION MISSING The use of the JMP (SUB10) functional

instruction is incorrect.

5 LADDER BROKEN The ladder program is corrupted.

6 OBJECT BUFFER OVER The user program RAM is full.

(Note) (Perform condensation or reduce the

size of the ladder program.)

7 PLEASE CLEAR ALL The sequence program has become unrecov-

erable due to power–off during editing.

8 1ST LEVEL EXEC TIME OVER The ladder first level is too great.

NOTE

Use a memory card for ladder diagram editing or the

CONDENSE function of FAPT LADDER (for personal

computers). These methods may, however, not be effective.

4.4.5

Starting and Stopping

the Sequence Program

(Run/Stop)

4.4.6

Error Messages

(for Ladder Mnemonics

Editing)
